1
Engine displacement
800
2
Year
2009
3
Trim
SPORTSMAN TOURING 800 EFI INTL - A09DN76FC
4
Parts Catalog
STEERING POST
5
Parts Diagram
Parts Catalog
VALVES
by
STEERING POST LOCK
STEERING POST
1
1
2
3
4
5
5
6
6
7
8
9
10
11
12
13
14
15
16
17
18
19
1
TIE ROD ASSEMBLY
1822851
$204,74 Unit Price incl. VAT
2
BRKT-UPPER BUSHING
5246732
5257028
$62,99 Unit Price incl. VAT
3
BUSHING-UPPER 1 IN
5433866
5439731
$12,59 Unit Price incl. VAT
4
ASM-STEER POST;4X4 INTL;RADRIV
1823281
9999999
Not Available
5
FLANGE NUT
7542343
$9,44 Unit Price incl. VAT
6
BOLT
7517428
$4,19 Unit Price incl. VAT
7
COTTER PIN
7661203
$2,09 Unit Price incl. VAT
8
SCREW
7515415
9999999
Not Available
9
NYLOCK NUT
7542439
$2,09 Unit Price incl. VAT
10
BOLT 10 MM X 1.25 MM X 65 MM
7517909
$10,49 Unit Price incl. VAT
11
WASHER
7556099
$3,14 Unit Price incl. VAT
12
NUT-M10X1.25-HX-LOCK-Y
7547177
7548155
$1,56 Unit Price incl. VAT
13
BOOT; TIE ROD END; 10 MM
5412929
$20,99 Unit Price incl. VAT
14
TIE ROD END
7061138
$104,99 Unit Price incl. VAT
15
NUT JAM; LEFT
7547028
$4,19 Unit Price incl. VAT
16
TIE ROD; 1/2- 20 X 12.21
5134242
$83,99 Unit Price incl. VAT
17
NUT-JAM(10)
7542711
$4,19 Unit Price incl. VAT
18
RIGHT HAND END ROD
7061139
$115,49 Unit Price incl. VAT
19
ROD END BOOT/SEAL; 1/2 IN
5412928
$20,99 Unit Price incl. VAT

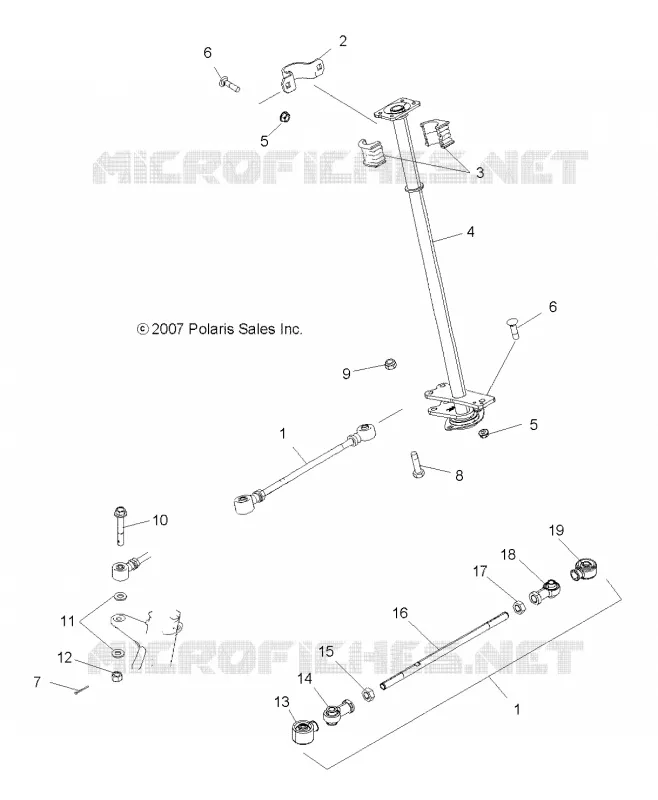

Find the detailed STEERING POST POLARIS diagram on this page. This exploded view allows you to identify the various components you need to maintain your machine and quickly find their original POLARIS part number.


The diagrams are not contractually binding. If you have any doubts, our professionals are available to answer your questions. When adding a part to your cart, make sure to order the desired quantity. The unit price shown is the price for each reference at a quantity of 1.
