1
Engine displacement
800
2
Year
2009
3
Trim
SPORTSMAN TOURING 800 EFI INTL - A09DN76FC
4
Parts Catalog
BODYWORK
5
Parts Diagram
Parts Catalog
FRONT STORAGE BOX
by
BODYWORK
BODYWORK
1
1
1
2
2
3
3
4
5
6
6
7
7
7
7
8
8
8
8
9
10
11
12
1
TUFLOK RIVET
7661855
$2,09 Unit Price incl. VAT
2
BOLT
7512232
$2,09 Unit Price incl. VAT
3
PAD-FOOTWELL SHORT
5413165
5418144
$18,89 Unit Price incl. VAT
4
CAB-RR TRNG PNTD SUNSET RED ME
5437299520
Not Available
5
MOUNT GROMMET; RUBBER
5412623
9999999
Not Available
6
TORSION BAR BUSHING
5433369
$20,99 Unit Price incl. VAT
7
WELD-PASS FOOTWELL;RH;E-COAT
1016239329
Not Available
7
PASSENGER FOOTWELL WELD; LEFT; BLACK
1016606329
Not Available
8
BASIC FOOTWELL; LEFT
5436134070
Not Available
8
FOOTWELL; RIGHT; GLOSS BLACK
5436135070
Not Available
9
SCREW
7517230
$2,09 Unit Price incl. VAT
10
NYLOK NUT
7542122
$2,09 Unit Price incl. VAT
11
PASS RISER FOR FOOTWELL;LH;BLK
5437167070
Not Available
12
PASS RISER FOR FOOTWELL;RH;BLK
5437168070
Not Available

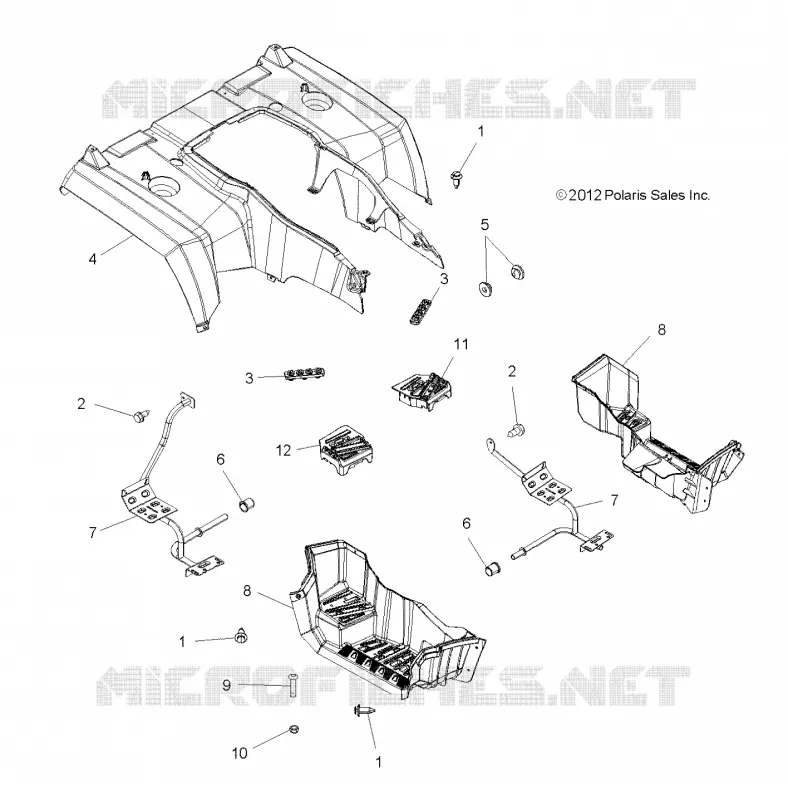

Find the detailed BODYWORK POLARIS diagram on this page. This exploded view allows you to identify the various components you need to maintain your machine and quickly find their original POLARIS part number.


The diagrams are not contractually binding. If you have any doubts, our professionals are available to answer your questions. When adding a part to your cart, make sure to order the desired quantity. The unit price shown is the price for each reference at a quantity of 1.
