Engine displacement
800
2
Year
2009
3
Trim
SPORTSMAN TOURING 800 EFI INTL - A09DN76FC
4
Parts Catalog
WIRE HARNESSES
5
Parts Diagram
Parts Catalog
GAUGES INDICATORS
by
TURN SIGNALS, HORN and MIRRORS
WIRE HARNESSES
1
2
3
3
3
3
3
3
3
4
5
6
7
8
9
10
11
12
13
14
15
16
1
HARNESS-MAIN TOURING 800 INT L
2411148
9999999
Not Available
2
RESISTOR MODULE HARNESS KIT
2204890
$257,24 Unit Price incl. VAT
3
FUSIBLE LINK KIT; 1.0 MM
2202670
$68,24 Unit Price incl. VAT
3
FUSIBLE LINK KIT; 0.8 MM
2202607
$73,49 Unit Price incl. VAT
3
CPS HARNESS KIT
2878077
$220,49 Unit Price incl. VAT
3
KIT-HARNESS T-BAP
2875542
2878494
$220,49 Unit Price incl. VAT
3
HARNESS KIT; ENGINE TEMP
2875543
$209,99 Unit Price incl. VAT
3
HARNESS
2203801
9999999
Not Available
3
FUSIBLE LINK KIT
2202147
9999999
Not Available
4
HARNESS-WINCH PREWIRE X2
2410860
9999999
Not Available
5
RELAY
4011141
9999999
Not Available
6
MICRO RELAY
4011998
$99,74 Unit Price incl. VAT
7
ATC 20 AMP; FUSE
4011683
$18,89 Unit Price incl. VAT
8
ATC FUSE; 15 AMP
4011682
9999999
Not Available
9
FUSE-ATC 5 AMP
4011681
9999999
Not Available
10
SCREW
7512024
$9,44 Unit Price incl. VAT
11
BRKT-FUSE BLOCK
5250236
9999999
Not Available
12
RELAY SOLID STATE 9A
4012193
4081742
$141,74 Unit Price incl. VAT
13
SCR-1/4-20X1.50-HX/TAP-R MAG
7518418
$7,34 Unit Price incl. VAT
14
SEALED CIRCUT BREAKER; 20 AMP
2410881
$141,74 Unit Price incl. VAT
15
DECAL-FUSE BLOCK
7171032
9999999
Not Available
16
DIAGNOSTIC COVER WITH CLIP
4012170
4083556
$15,00 Unit Price incl. VAT

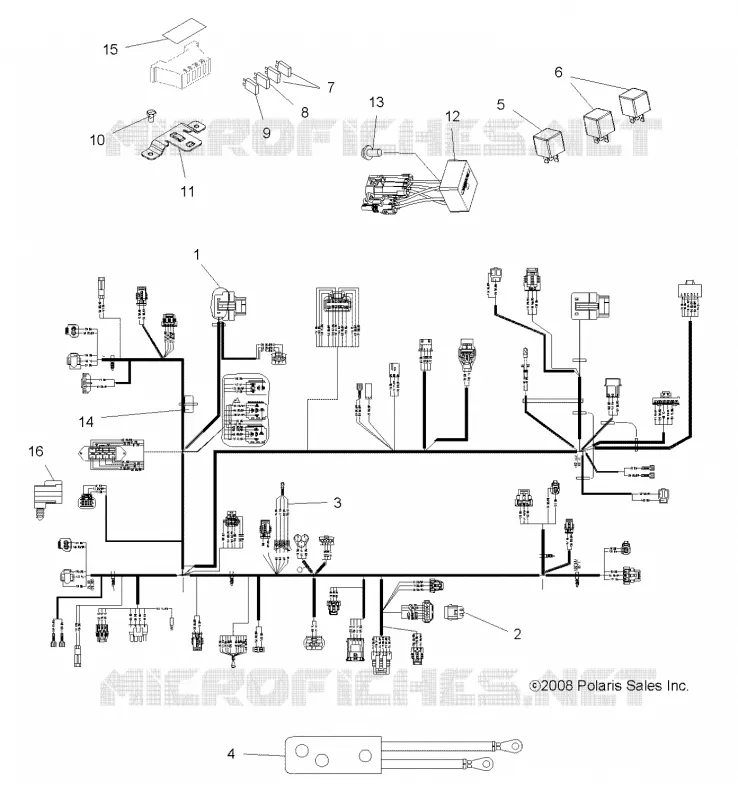

Find the detailed WIRE HARNESSES POLARIS diagram on this page. This exploded view allows you to identify the various components you need to maintain your machine and quickly find their original POLARIS part number.
