1
Engine displacement
800
2
Year
2009
3
Trim
SPORTSMAN TOURING 800 EFI INTL - A09DN76FC
4
Parts Catalog
WHEELS, FRONT
5
Parts Diagram
Parts Catalog
TOOL KIT
by
WHEELS, REAR

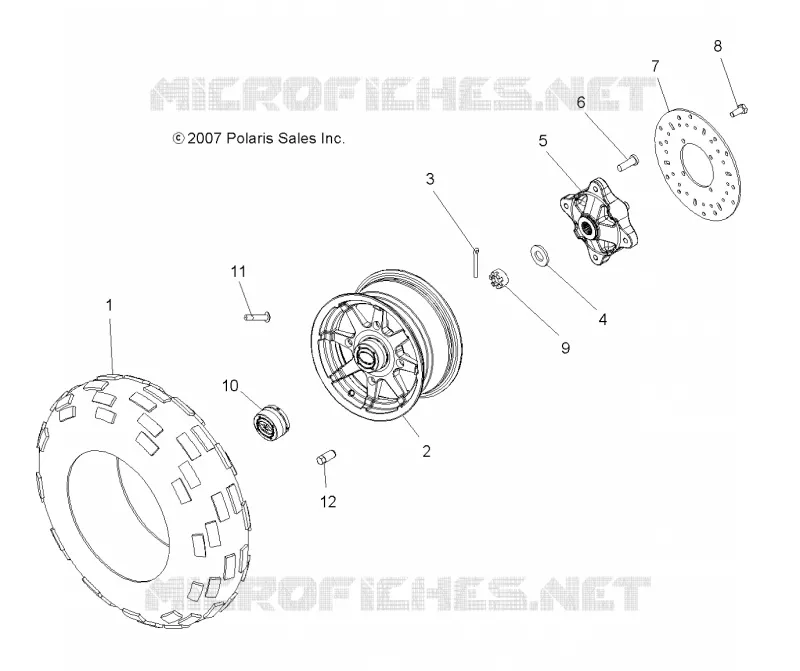

WHEELS, FRONT
1
2
3
4
5
6
7
8
9
10
11
12
1
3
4
5
6
7
8
9
10
11
12
1
TIRE-FT AT 25X8-12AT489 E-MARK
5413114
5419051
$153,29 Unit Price incl. VAT
2
RIM CAST FRONT 12 X 6
1521106
9999999
Not Available
3
COTTER PIN
7661402
$3,14 Unit Price incl. VAT
4
WASHER
7556004
$13,64 Unit Price incl. VAT
5
AWD WHEEL HUB
5134310
5143612
$157,49 Unit Price incl. VAT
6
PRESS FIT STUD
7518378
$3,14 Unit Price incl. VAT
7
FRONT DISC BRAKE
5244314
$141,74 Unit Price incl. VAT
8
BOLT
7512325
$4,19 Unit Price incl. VAT
9
SLOTTED NUT
7542810
$5,76 Unit Price incl. VAT
10
CENTER CAP; EMBOSSED STAR LOGO
1521128
$35,69 Unit Price incl. VAT
11
RIM VALVE
1525017
$12,59 Unit Price incl. VAT
12
WHEEL NUT
7547309
$6,81 Unit Price incl. VAT

Find the detailed WHEELS, FRONT POLARIS diagram on this page. This exploded view allows you to identify the various components you need to maintain your machine and quickly find their original POLARIS part number.


The diagrams are not contractually binding. If you have any doubts, our professionals are available to answer your questions. When adding a part to your cart, make sure to order the desired quantity. The unit price shown is the price for each reference at a quantity of 1.
