1
Engine displacement
570
2
Year
2016
3
Trim
RANGER XP 570 FULL SIZE
4
Parts Catalog
REAR SUSPENSION
5
Parts Diagram
Parts Catalog
FRONT SUSPENSION
by
DECALS
REAR SUSPENSION
1
1
2
2
3
3
4
5
6
7
8
8
8
8
9
9
9
9
9
9
10
10
10
11
11
12
13
13
13
13
14
14
14
14
15
1
CONTROL ARM WELD UPPER REAR RIGHT MT BLK
1018466458
Not Available
1
CONTROL ARM WELD; REAR; UPPER; LEFT
1018465458
Not Available
2
CONTROL ARM WELD REAR LOWER RIGHT MT BLK
1018461458
Not Available
2
CONTROL ARM; LOWER; LEFT SIDE; MT BLK
1018460458
Not Available
3
WHEEL BEARING CARRIER; LEFT
5138501
$414,74 Unit Price incl. VAT
3
RIGHT HAND WHEEL BEARING CARRIER
5138502
$414,74 Unit Price incl. VAT
4
WHEEL BEARING; 40 MM X 74 MM X 40 MM
3514635
$73,49 Unit Price incl. VAT
5
RETAINING RING
7710440
$18,89 Unit Price incl. VAT
6
PIVOT SHAFT
5138796
$23,09 Unit Price incl. VAT
7
PIVOT SHAFT
5138794
$10,49 Unit Price incl. VAT
8
PIVOT SHAFT
5138797
$16,79 Unit Price incl. VAT
9
STANDARD BUSHING; ORV
5439874
$4,19 Unit Price incl. VAT
10
ZERK FITTING
7080510
$10,49 Unit Price incl. VAT
11
SCREW M10 X 1.25-6G
7519043
$17,84 Unit Price incl. VAT
12
SCREW
7519365
$25,19 Unit Price incl. VAT
13
NYLOC NUT
7547333
$3,14 Unit Price incl. VAT
14
WASHER
7556153
$3,66 Unit Price incl. VAT
15
SCREW
7519042
$17,84 Unit Price incl. VAT

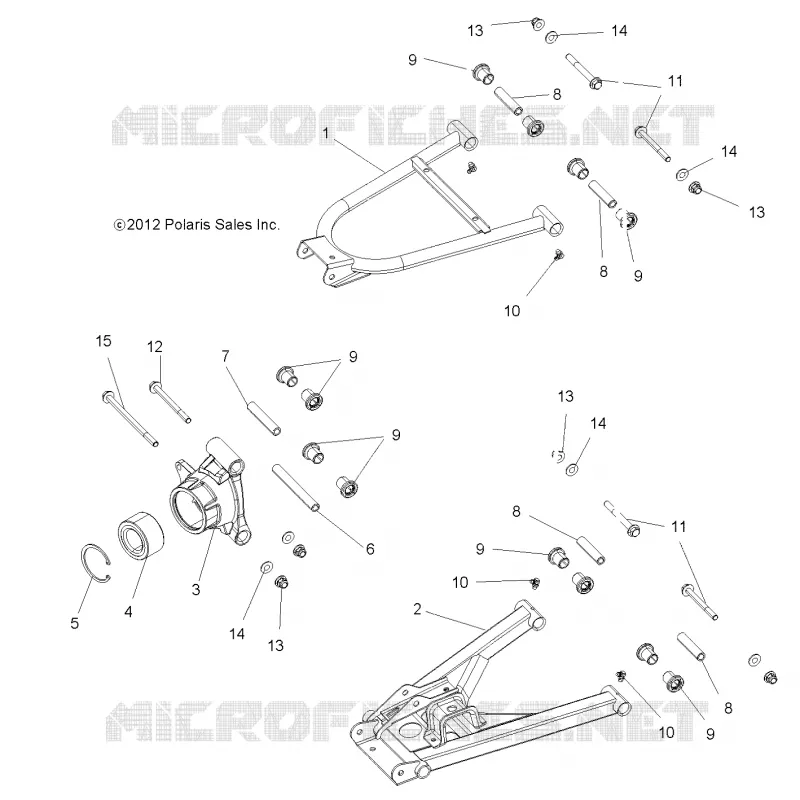

Find the detailed REAR SUSPENSION POLARIS diagram on this page. This exploded view allows you to identify the various components you need to maintain your machine and quickly find their original POLARIS part number.


The diagrams are not contractually binding. If you have any doubts, our professionals are available to answer your questions. When adding a part to your cart, make sure to order the desired quantity. The unit price shown is the price for each reference at a quantity of 1.
