Engine displacement
570
2
Year
2016
3
Trim
RANGER XP 570 FULL SIZE
4
Parts Catalog
OIL PUMP
5
Parts Diagram
Parts Catalog
OIL FILTER AND DIPSTICK
by
REAR SUSPENSION SHOCK
OIL PUMP
13
14
15
13
14
15
1
REGULATOR VALVE ASSEMBLY
2521145
$125,99 Unit Price incl. VAT
2
GEROTOR ASSEMBLY
1204293
$115,49 Unit Price incl. VAT
3
OIL PICKUP ASSEMBLY
2521168
$73,49 Unit Price incl. VAT
4
PIN-SOLID M4X15.8
3022308
$7,34 Unit Price incl. VAT
5
OIL PUMP DRIVE CHAIN
3222197
3225044
$47,24 Unit Price incl. VAT
6
DRIVE SPROCKET; 23T
3222198
$26,24 Unit Price incl. VAT
7
SPROCKET 21T DRIVEN
3222199
$26,24 Unit Price incl. VAT
8
OIL PUMP SHAFT
5138077
$52,49 Unit Price incl. VAT
9
OIL PUMP COVER
5137408
$73,49 Unit Price incl. VAT
10
SPROCKET SPACER
5137451
$73,49 Unit Price incl. VAT
11
HEX FLANGE HD SCREW; 6 MM X 12 MM
7517257
$17,84 Unit Price incl. VAT
12
HEX FLANGE SCREW; 6 MM X 20 MM
7518576
$6,29 Unit Price incl. VAT
13
WASHER
7556054
$19,94 Unit Price incl. VAT
14
WASHER-11.2X15.0X1.0
7556570
$7,34 Unit Price incl. VAT
15
OIL JET; OIL PUMP
2540080
$17,84 Unit Price incl. VAT

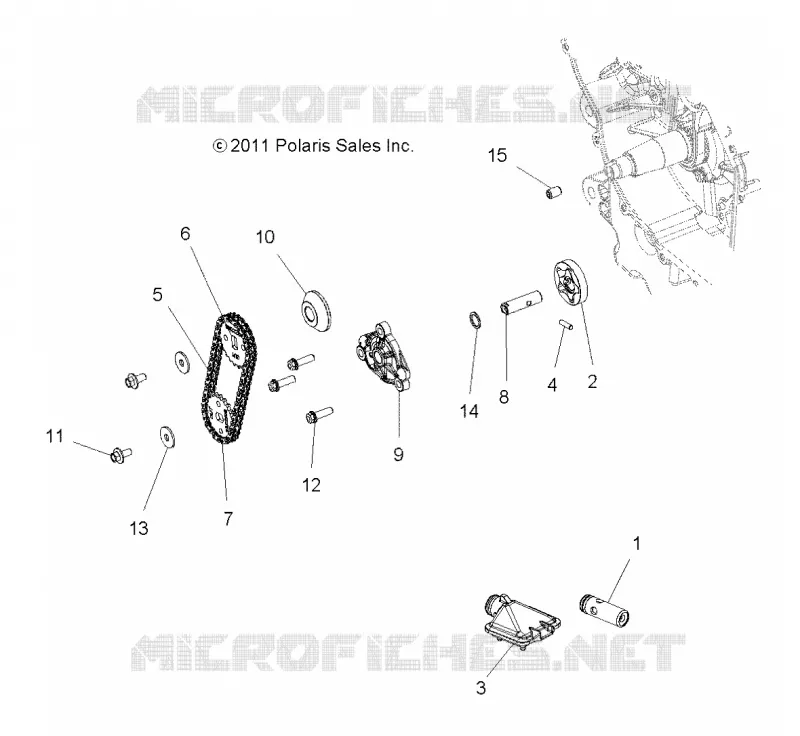

Find the detailed OIL PUMP POLARIS diagram on this page. This exploded view allows you to identify the various components you need to maintain your machine and quickly find their original POLARIS part number.


The diagrams are not contractually binding. If you have any doubts, our professionals are available to answer your questions. When adding a part to your cart, make sure to order the desired quantity. The unit price shown is the price for each reference at a quantity of 1.
