Engine displacement
570
2
Year
2016
3
Trim
RANGER XP 570 FULL SIZE
4
Parts Catalog
REAR BRAKE CALIPER
5
Parts Diagram
Parts Catalog
CARGO BOX
by
CHASSIS, CAB FRAME
REAR BRAKE CALIPER
-
-
9
10
11
9
10
10
11
-
BRAKE CALIPER; REAR; RIGHT; 1.5 IN
1912137
$414,74 Unit Price incl. VAT
-
BRAKE CALIPER ASM REAR LEFT 1.5 IN
1912136
$414,74 Unit Price incl. VAT
1
SCR-M7X1.0 BLEEDER OLIVE D
7081343
$10,49 Unit Price incl. VAT
2
SCR-M10X1.0X8 SOC SET-OD
7518863
$17,84 Unit Price incl. VAT
3
SHOCK FTA [SEE PAGE- SUSPENSION SHOCK FRONT TRACK]
*******
Not Available
4
BRAKE BOOT KIT; FRONT
1930642
$20,99 Unit Price incl. VAT
5
PIN BUSHING BOOT
5412505
$6,29 Unit Price incl. VAT
6
PIN SEAL BOOT
5412506
$6,29 Unit Price incl. VAT
7
CALIPER SEAL; INNER; 1.50 IN
5412010
$13,64 Unit Price incl. VAT
8
CALIPER SEAL; OUTER; 1.50 IN
5412011
$13,64 Unit Price incl. VAT
9
BRAKE PISTON; 1.5; AL; GROOVED
5138775
$73,49 Unit Price incl. VAT
10
BRAKE CALIPER MOUNT ASSEMBLY; REAR
1911375
$68,24 Unit Price incl. VAT
11
1.5 IN. BRAKE PAD KIT ASSEMBLY
2202413
$98,16 Unit Price incl. VAT

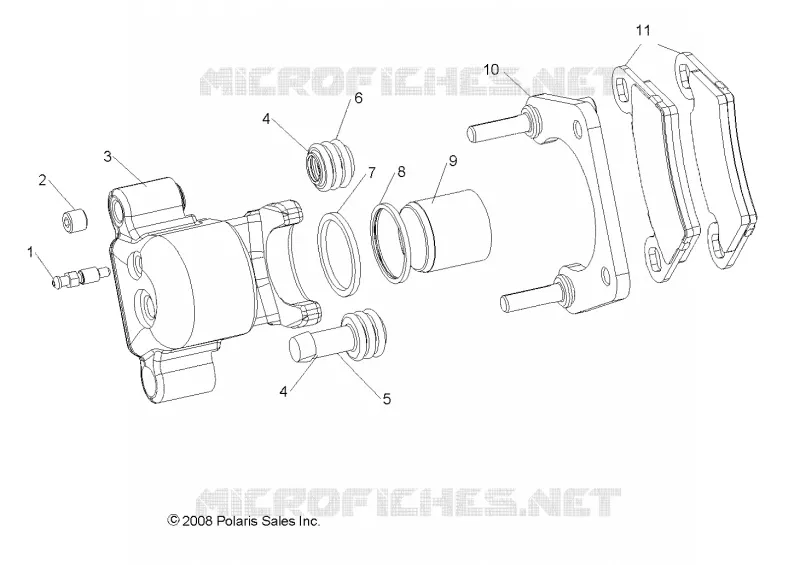

Find the detailed REAR BRAKE CALIPER POLARIS diagram on this page. This exploded view allows you to identify the various components you need to maintain your machine and quickly find their original POLARIS part number.


The diagrams are not contractually binding. If you have any doubts, our professionals are available to answer your questions. When adding a part to your cart, make sure to order the desired quantity. The unit price shown is the price for each reference at a quantity of 1.
