Parts Catalog
THROTTLE BODY AND FUEL RAIL
5
Parts Diagram
Parts Catalog
ENGINE, STATOR COVER AND FLYWHEEL
by
FRONT SUSPENSION
THROTTLE BODY AND FUEL RAIL
1
2
3
4
5
6
7
1
2
3
4
5
6
7
1
ELEC THROTTLE CONTROL THROTTLE 46MM
1204455
$997,49 Unit Price incl. VAT
2
FUEL INJECTOR
2521068
$188,99 Unit Price incl. VAT
3
1 CYLINDER FUEL RAIL
2521403
$206,63 Unit Price incl. VAT
4
THROTTLE BODY ADAPTER
5415525
$194,24 Unit Price incl. VAT
5
SCR-M6X1.0X50.0 HX/FL-YD (10)
7517932
$7,34 Unit Price incl. VAT
6
HEX FLANGE SCREW; 6 MM X 20 MM
7518576
$6,29 Unit Price incl. VAT
7
SOCKET HEAD SCREW 8 MM X 1.25 MM X 25 MM
7519859
$10,49 Unit Price incl. VAT

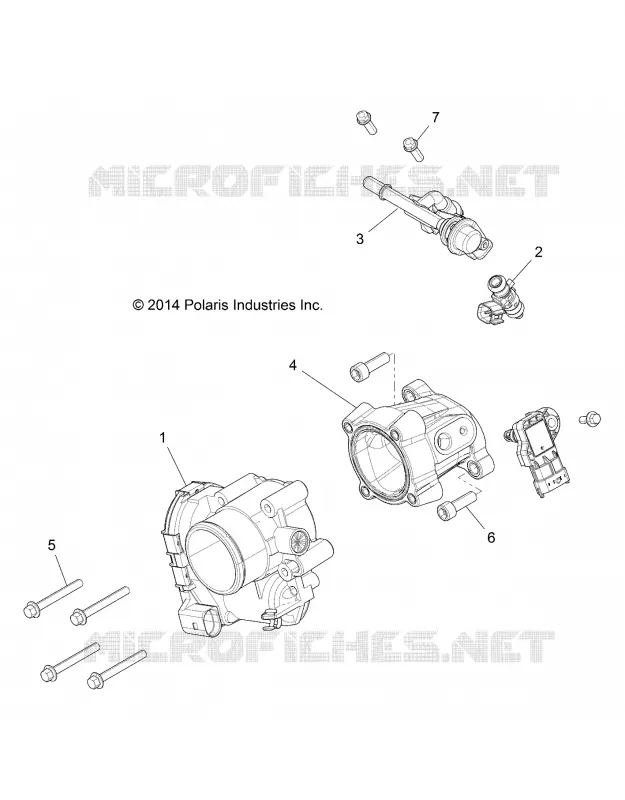

Find the detailed THROTTLE BODY AND FUEL RAIL POLARIS diagram on this page. This exploded view allows you to identify the various components you need to maintain your machine and quickly find their original POLARIS part number.
