DRIVE TRAIN, FRONT HALF SHAFT
5
Parts Diagram
Parts Catalog
DRIVE TRAIN, FRONT GEARCASE MOUNTING
by
DRIVE TRAIN, FRONT PROP SHAFT
DRIVE TRAIN, FRONT HALF SHAFT
1
2
3
3
4
5
5
6
6
7
7
8
8
9
10
11
12
1
FRONT LEFT HALFSHAFT ASSEMBLY
1332637
$383,24 Unit Price incl. VAT
2
CV JOINT; OUTER
1332534
$278,24 Unit Price incl. VAT
3
CIRCLIP 1.8 X 22.2
2203437
$10,49 Unit Price incl. VAT
4
PLUNGING JOINT BOOT KIT
2203442
$89,24 Unit Price incl. VAT
5
CLAMP LARGE
2203443
$17,84 Unit Price incl. VAT
6
GREASE
2203464
$20,99 Unit Price incl. VAT
7
CV JOINT BOOT KIT
2203440
$83,99 Unit Price incl. VAT
8
SMALL CLAMP
2203441
$10,49 Unit Price incl. VAT
9
INNER CV JOINT
1332538
$220,49 Unit Price incl. VAT
10
CIRCLIP 2.0 X 61.7
2203876
$10,49 Unit Price incl. VAT
11
CIRCLIP 1.6 X 24.4
2203445
$4,19 Unit Price incl. VAT
12
SHAFT 23.5
3235152
$115,49 Unit Price incl. VAT

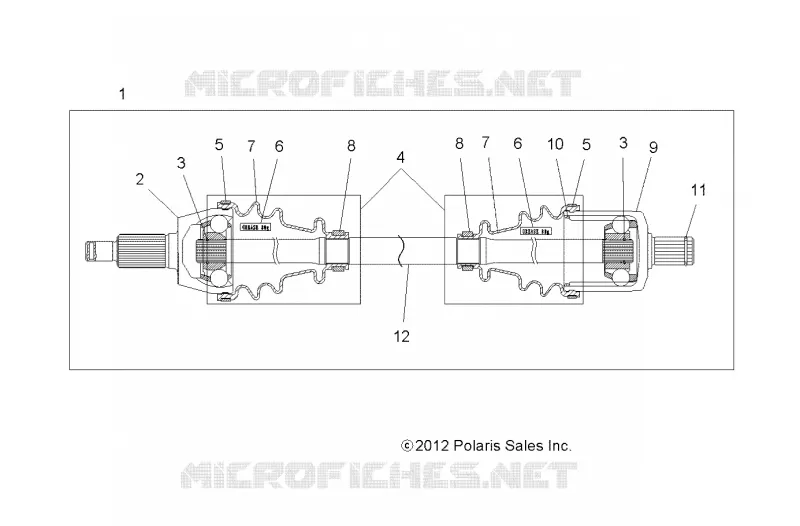

Find the detailed DRIVE TRAIN, FRONT HALF SHAFT POLARIS diagram on this page. This exploded view allows you to identify the various components you need to maintain your machine and quickly find their original POLARIS part number.
