Engine displacement
500
2
Year
2003
3
Trim
500 MAGNUM 4X4 HDS - A03CD50FB
4
Parts Catalog
DRIVE CLUTCH
5
Parts Diagram
Parts Catalog
OIL TANK
by
CLUTCH COVER
DRIVE CLUTCH
1
2
3
4
5
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
1
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
1
ONE WAY DRIVE CLUTCH
1520231
9999999
Not Available
2
WASHER BRASS 1.39 X 1.99 X .
7556202
9999999
Not Available
3
SPACER-1.25X2.25 PM
5631119
9999999
Not Available
4
FLEXLOC NUT(10)
7541906
$6,29 Unit Price incl. VAT
5
BUTTON CLUTCH (10)
5431936
5439254
$14,69 Unit Price incl. VAT
6
ROLLER PIN
5020422
$4,19 Unit Price incl. VAT
7
BEARING / BUSHING
3585712
$54,59 Unit Price incl. VAT
8
NUT JAM
7547130
9999999
Not Available
9
BEARING COVER
3576510
$16,79 Unit Price incl. VAT
10
SPRING LOCK WASHER
7552801
$3,14 Unit Price incl. VAT
11
BUSHING
5430261
$13,64 Unit Price incl. VAT
12
WASHER LOCK
7575202
$9,44 Unit Price incl. VAT
13
BOLT
7512566
9999999
Not Available
14
WASHER
5210748
$7,34 Unit Price incl. VAT
15
BOLT
7512176
7512163
$7,34 Unit Price incl. VAT
16
SPRING CLUTCH; BLUE/GRAY
7042202
9999999
Not Available
17
ROLLER/BUSHING ASSEMBLY
1321457
$73,49 Unit Price incl. VAT
18
WASHER(10)
5430945
5438247
$3,14 Unit Price incl. VAT
19
SHOULDER BOLT
7512266
$5,76 Unit Price incl. VAT
20
WT SHIFT 10MH(3)
5630513
5632281
$62,99 Unit Price incl. VAT
21
BRAKING DRIVE CLUTCH ASSEMBLY
1321706
$1 081,49 Unit Price incl. VAT
22
WASHER; 1.39 X 2.24 X .030
7556204
9999999
Not Available

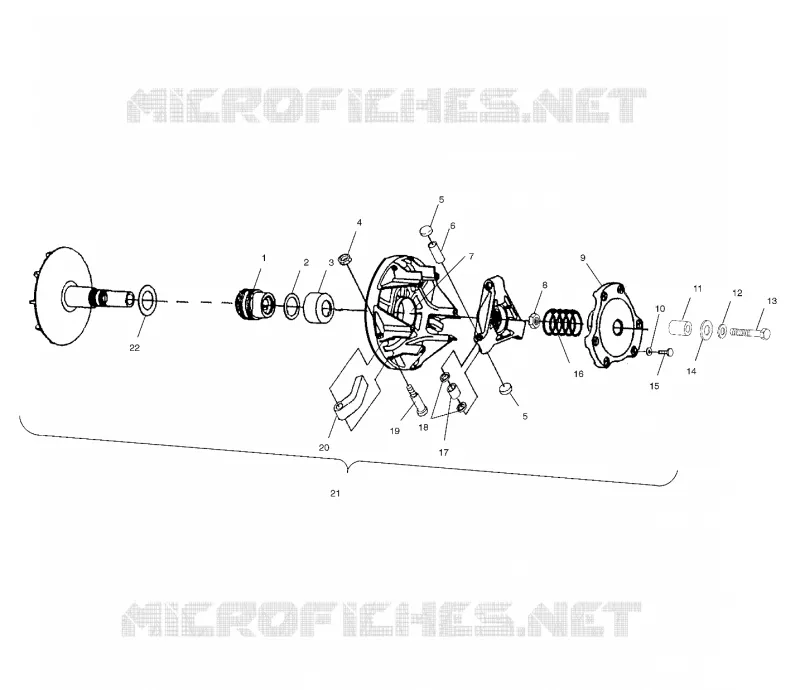

Find the detailed DRIVE CLUTCH POLARIS diagram on this page. This exploded view allows you to identify the various components you need to maintain your machine and quickly find their original POLARIS part number.
