Engine displacement
500
2
Year
2003
3
Trim
500 MAGNUM 4X4 HDS - A03CD50FB
4
Parts Catalog
DRIVEN CLUTCH
5
Parts Diagram
Parts Catalog
FRONT PROP SHAFT
by
FUEL PUMP
DRIVEN CLUTCH
1
2
3
4
5
5
6
7
8
9
10
11
12
13
14
15
16
16
1
WASHER .906 X 1.38 X .060 IN
7556120
$2,09 Unit Price incl. VAT
2
DOMED WASHER
5220646
$4,19 Unit Price incl. VAT
3
SPRING LOCK WASHER
7552901
$2,09 Unit Price incl. VAT
4
BOLT
7515382
$4,19 Unit Price incl. VAT
5
ASM-CLUTCH DRVN BLK 41-35
1322337
9999999
Not Available
6
ORV DRIVE BELT
3211077
$107,93 Unit Price incl. VAT
7
BUTTON RAMP
5430766
5450873
$11,54 Unit Price incl. VAT
8
BOLT (10)
7511854
$2,09 Unit Price incl. VAT
9
RETAINING RING
7710448
$5,76 Unit Price incl. VAT
10
SPACER-1.350X1.750X.020-YW/TAB
5244116
$13,64 Unit Price incl. VAT
11
RAMP-STA 41-35 STD MACH
5133701
9999999
Not Available
12
CLUTCH SPRING; CHROME/BLACK
7041782
$115,49 Unit Price incl. VAT
13
BUSHING MOVEABLE 1 IN
3576511
$52,49 Unit Price incl. VAT
14
BUSHING MOVEABLE 1/2 INCH
3576504
$41,99 Unit Price incl. VAT
15
WASHER 1.505 X 2.00 X 0.30
7556804
$1,56 Unit Price incl. VAT
16
WASHER 1.50 X 2.00 X .025
7556076
$9,44 Unit Price incl. VAT
16
WASHER 1.5 X 2.0 X .020
7555898
$2,09 Unit Price incl. VAT

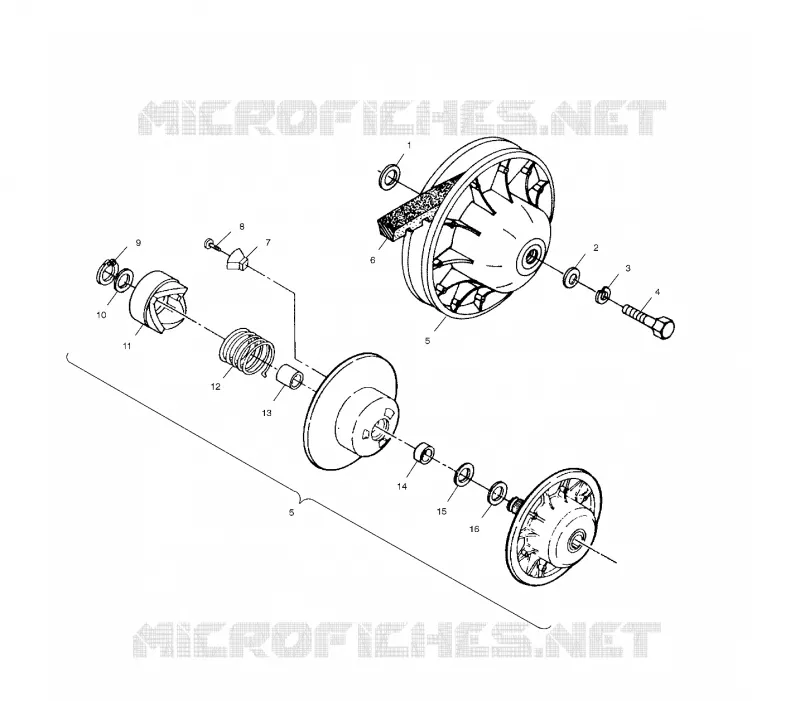

Find the detailed DRIVEN CLUTCH POLARIS diagram on this page. This exploded view allows you to identify the various components you need to maintain your machine and quickly find their original POLARIS part number.


The diagrams are not contractually binding. If you have any doubts, our professionals are available to answer your questions. When adding a part to your cart, make sure to order the desired quantity. The unit price shown is the price for each reference at a quantity of 1.
