FRONT RACK BUMPER MOUNTING
5
Parts Diagram
Parts Catalog
CABIN
by
DECALS
FRONT RACK BUMPER MOUNTING
1
2
3
3
4
5
5
6
7
8
9
10
10
11
12
12
12
13
14
15
16
17
18
19
19
20
21
21
1
SCREW
7517685
$3,14 Unit Price incl. VAT
2
FRONT RACK ASSEMBLY GLOSS BLACK
2670180070
Not Available
3
SCREW
7515399
9999999
Not Available
4
SUPPORT RACK; FRONT; MEDIUM GLOSS BLACK
1014023067
Not Available
5
NYLOK NUT
7542324
$1,56 Unit Price incl. VAT
6
FRONT BUMPER; GEN IV; GLOSS BLACK
5432155070
Not Available
7
BOLT(10)
7515391
$9,44 Unit Price incl. VAT
8
BOLT
7515390
9999999
Not Available
9
WASHER
7555954
$9,44 Unit Price incl. VAT
10
SUPPORT RACK WELD; FRONT; LEFT; GS BLK
1013744067
Not Available
10
SUPPORT RACK WELD; FRONT; RIGHT; GS BLK
1013746067
Not Available
11
BOLT
7512232
$2,09 Unit Price incl. VAT
12
ASM. HEADLIGHT SIDE MOUNT LH
2431014
9999999
Not Available
12
SIDE MOUNT HEADLIGHT ASM RIGHT 35 WATT
2431015
9999999
Not Available
12
BULB H/L 27W.HOBBS
4030059
9999999
Not Available
13
BOLT
7512329
$7,34 Unit Price incl. VAT
14
FLAT WASHER
7558402
$1,56 Unit Price incl. VAT
15
PLUG; FRAME
5810467
9999999
Not Available
16
WELD-BRUSH GUARD;BLK
1013772067
Not Available
17
NUT
7670094
$10,49 Unit Price incl. VAT
18
SCREW(10)
7512097
9999999
Not Available
19
SHIELD-RADIATOR SIDE RH
5433924
9999999
Not Available
19
RADIATOR SHIELD; LEFT
5433923
9999999
Not Available
20
NUTSERT HEX
7547069
$7,34 Unit Price incl. VAT
21
FRAME EXTENSION RIGHT GS BLK
5244730067
Not Available
21
FRAME EXTENSION LEFT GS BLK
5244729067
Not Available

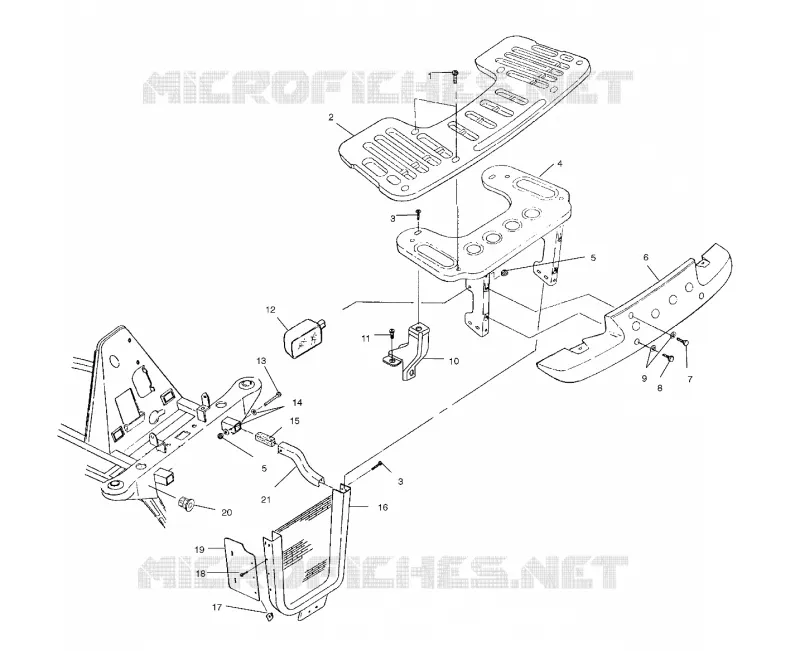

Find the detailed FRONT RACK BUMPER MOUNTING POLARIS diagram on this page. This exploded view allows you to identify the various components you need to maintain your machine and quickly find their original POLARIS part number.
