Engine displacement
500
2
Year
2003
3
Trim
500 MAGNUM 4X4 HDS - A03CD50FB
4
Parts Catalog
OIL TANK
5
Parts Diagram
Parts Catalog
CONTROLS
by
DRIVE CLUTCH
OIL TANK
1
1
2
2
3
3
3
4
5
5
6
7
8
8
9
10
11
12
1
2
3
4
5
6
7
8
9
10
11
12
1
BOLT
7512130
$7,34 Unit Price incl. VAT
2
FLAT WASHER
7558301
$2,09 Unit Price incl. VAT
3
HOSE CLAMP
7080699
$3,14 Unit Price incl. VAT
4
BREATHER-LINE-112 CMSLIT
5411668
9999999
Not Available
5
NYLOK NUT
7542122
$2,09 Unit Price incl. VAT
6
OIL TANK DIPSTICK
5434308
9999999
Not Available
7
SPRING HOSE CLAMP; .81
7081026
$14,69 Unit Price incl. VAT
8
LINE-GOODYEAR 1/2 16CM
845009616
Not Available
9
OIL FILTER SCREEN
7052326
9999999
Not Available
10
PLUG
7051524
$62,99 Unit Price incl. VAT
11
WASHER
5850135
$5,76 Unit Price incl. VAT
12
TANK OIL PLASTIC
1261176
1261653
$509,24 Unit Price incl. VAT

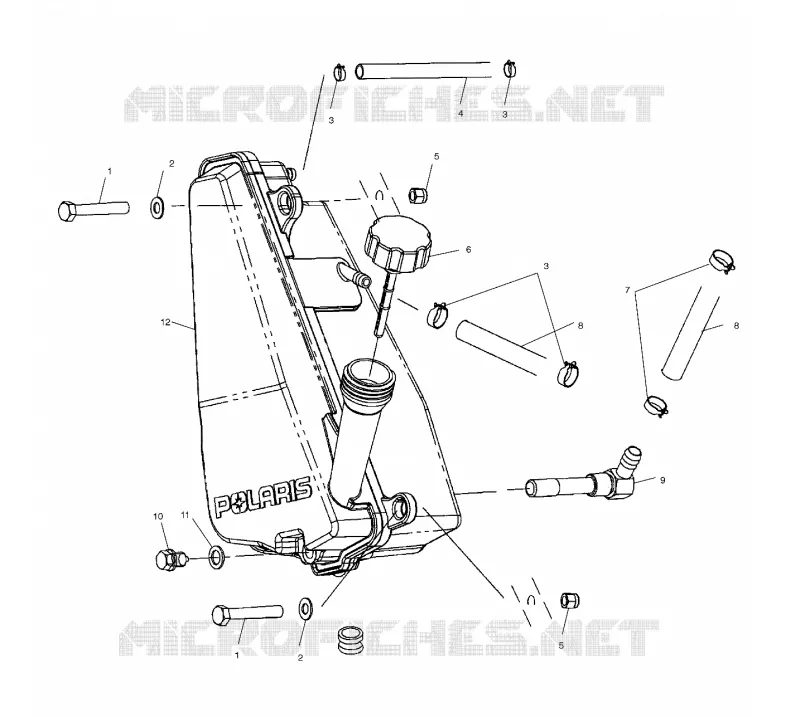

Find the detailed OIL TANK POLARIS diagram on this page. This exploded view allows you to identify the various components you need to maintain your machine and quickly find their original POLARIS part number.
