1
Engine displacement
500
2
Year
2003
3
Trim
500 MAGNUM 4X4 HDS - A03CD50FB
4
Parts Catalog
GEARCASE
5
Parts Diagram
Parts Catalog
STEERING POST
by
CABIN
GEARCASE
-
1
2
3
3
4
5
6
7
8
9
9
10
11
12
13
14
15
15
15
15
16
17
18
18
18
19
19
20
21
21
22
23
23
24
24
25
26
27
28
28
29
29
29
30
31
31
32
33
33
33
34
35
36
37
38
39
40
41
42
43
44
45
46
47
48
49
50
51
52
45
54
55
56
57
58
59
60
61
62
63
64
65
66
67
68
69
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
-
ASM-GEARCASE DRUM 500 4WD HDS
1341395
9999999
Not Available
1
NUT-LOCK HEX FLANGE NYLON 5/16
3233961
$5,24 Unit Price incl. VAT
2
BELLCRANK SHIFT DRUM
3233906
9999999
Not Available
3
SCREW
3233826
9999999
Not Available
4
GEARS SECTOR COVER
3233827
9999999
Not Available
5
DETENT PAWL
3233829
$68,24 Unit Price incl. VAT
6
O-RING
3233869
$10,49 Unit Price incl. VAT
7
SHIFT SHAFT
3233831
$115,49 Unit Price incl. VAT
8
SECTOR GEAR; 31 TOOTH CUT TO 11 TOOTH
3233832
$68,24 Unit Price incl. VAT
9
TRIPLE LIP SEAL
3233788
$57,74 Unit Price incl. VAT
10
WASHER
3233324
9999999
Not Available
11
OIL FILL PLUG
3233711
9999999
Not Available
12
GEARCASE-MAIN SECTION
3233867
9999999
Not Available
13
TUBE VENT
3233524
$15,74 Unit Price incl. VAT
14
DRUM-SHIFT
3233910
9999999
Not Available
15
BEARING
3233018
$47,24 Unit Price incl. VAT
16
SILENT CHAIN
3233036
9999999
Not Available
17
SUB ASM-INPUT SHAFT
3234029
9999999
Not Available
18
BEARING
3233019
$54,59 Unit Price incl. VAT
19
KNOCK PIPE
3233529
9999999
Not Available
20
COVER-MAIN LH
3233865
9999999
Not Available
21
SCR-TAPPING HEX WASHER HD 5/16
3234114
$13,64 Unit Price incl. VAT
22
DUAL LIP SEAL
3233874
$57,74 Unit Price incl. VAT
23
SHOCK FTA [SEE PAGE- SUSPENSION SHOCK FRONT TRACK]
*******
Not Available
24
SHIFT FORK WITH PIN SUBASSEMBLY
3234141
9999999
Not Available
25
SHIFT SHAFT RAIL; C VERSION
3233860
$99,74 Unit Price incl. VAT
26
PLATE-PARK 12 FACE
3233915
$73,49 Unit Price incl. VAT
27
ENGAGEMENT-DOG PARK 6-FACE
3234040
9999999
Not Available
28
SPRING-WAVE
3233849
9999999
Not Available
29
6 FACE ENGAGEMENT DOG
3233875
$309,74 Unit Price incl. VAT
30
RETAINING RING
3233850
$19,94 Unit Price incl. VAT
31
WASHER
3233851
$19,94 Unit Price incl. VAT
32
GEAR-33T 6-FACE
3234027
9999999
Not Available
33
NEEDLE BEARING
3233718
$60,89 Unit Price incl. VAT
34
REVERSE SHAFT
3233853
9999999
Not Available
35
SPROCKET-24T 6 FACE ENGAGEMENT
3233854
$257,24 Unit Price incl. VAT
36
WASHER
3233855
$19,94 Unit Price incl. VAT
37
GEAR-28T 6 FACE
3233912
9999999
Not Available
38
HELICAL GEAR; 36T
3234014
9999999
Not Available
39
GEAR HELICAL 48T
3233709
9999999
Not Available
40
SCREW
3233608
9999999
Not Available
41
COVER BEARING
3233609
9999999
Not Available
42
SNAP RING
3233106
$10,49 Unit Price incl. VAT
43
SPACER
3233357
$36,74 Unit Price incl. VAT
44
BALL BEARING
3233607
9999999
Not Available
45
SUBASM-GRND SPIRL BVL(411467)
3234912
9999999
Not Available
46
HEX FLANGE PLUG
3233777
9999999
Not Available
47
PLUG WASHER
3233254
$14,69 Unit Price incl. VAT
48
COVER-OUTPUT FRONT
3233781
9999999
Not Available
49
SHIM; .450 X .265
3233583
$52,49 Unit Price incl. VAT
50
BUTTON THRUST
3233582
$13,64 Unit Price incl. VAT
51
SHIM KIT
3233611
$52,49 Unit Price incl. VAT
52
SHAFT REAR OUTPUT
3233622
9999999
Not Available
53
SUBASM-GRND SPIRL BVL(411467)
3234912
9999999
Not Available
54
WASHER THRUST
3233619
$36,74 Unit Price incl. VAT
55
SPROCKET-22T/18T
3233873
9999999
Not Available
56
CHAIN-SILENT REXNORD
3233784
9999999
Not Available
57
OUTPUT SHAFT; FRONT
3233625
$262,49 Unit Price incl. VAT
58
SPROCKET; 22 TOOTH
3233844
$220,49 Unit Price incl. VAT
59
GARLOCK BUSHING
3233552
$41,99 Unit Price incl. VAT
60
CLAMP-TIE
3234013
9999999
Not Available
61
SUBASM-PARK LOCKOUT
3233917
9999999
Not Available
62
O-RING
3233548
9999999
Not Available
63
SECTOR GEAR; 16 TOOTH
3233839
$68,24 Unit Price incl. VAT
64
LOCKOUT DISC
3233838
$52,49 Unit Price incl. VAT
65
DETENT STAR
3233909
$52,49 Unit Price incl. VAT
66
O-RING
3233076
$11,54 Unit Price incl. VAT
67
COMPRESSION SPRING
3233830
$19,94 Unit Price incl. VAT
68
SWITCH-ROTARY 6 PIN
3233835
3236115
$225,74 Unit Price incl. VAT
69
RETAINING RING
3233834
$19,94 Unit Price incl. VAT

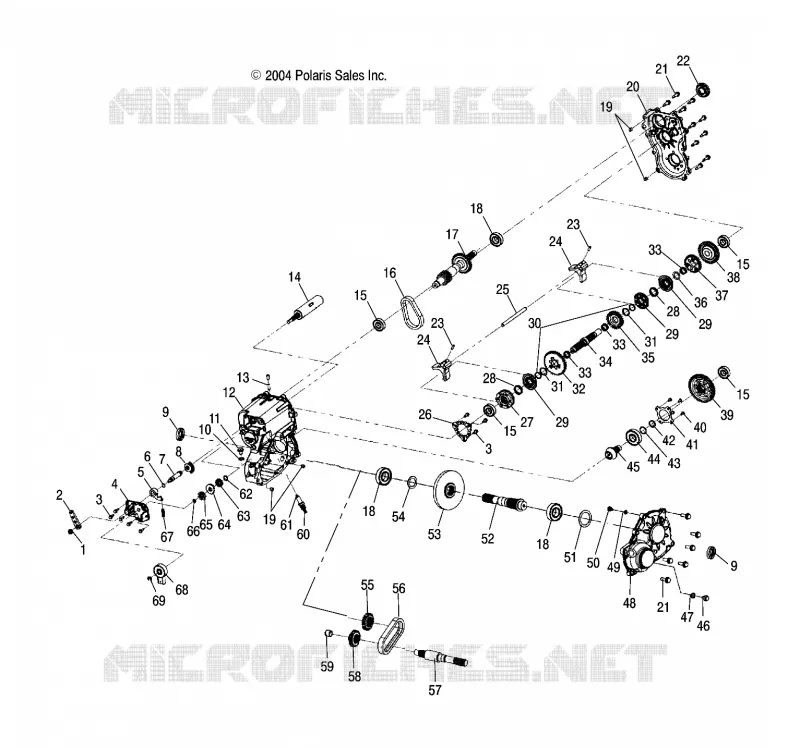

Find the detailed GEARCASE POLARIS diagram on this page. This exploded view allows you to identify the various components you need to maintain your machine and quickly find their original POLARIS part number.


The diagrams are not contractually binding. If you have any doubts, our professionals are available to answer your questions. When adding a part to your cart, make sure to order the desired quantity. The unit price shown is the price for each reference at a quantity of 1.
