ENGINE, COOLING SYSTEM
5
Parts Diagram
Parts Catalog
CAM CHAIN AND TENSIONER
by
ENGINE, CRANKCASE AND CRANKSHAFT
ENGINE, COOLING SYSTEM
24
25
26
27
28
1
RADIATOR ASSEMBLY
1240712
$1 102,49 Unit Price incl. VAT
2
CAP
1240694
$73,49 Unit Price incl. VAT
3
CORE RADIATOR ASSEMBLY
1240745
$892,49 Unit Price incl. VAT
4
FAN ASSEMBLY
2412447
$472,49 Unit Price incl. VAT
5
BOLT 6 MM X 15 MM
7519585
$17,84 Unit Price incl. VAT
6
OVERFLOW CAP
5430743
$10,49 Unit Price incl. VAT
6
OVERFLOW BOTTLE WITH FITTING CAP
5437635
$9,44 Unit Price incl. VAT
7
CAP PLUG9X(GRN) FLEX TEMP(10)
5433774
$10,49 Unit Price incl. VAT
8
SURGE TANK
5439202
$178,49 Unit Price incl. VAT
9
GASKET
5810279
$4,19 Unit Price incl. VAT
10
FUEL LINE; 1/4 ID
84500031525
Not Available
11
GROMMET
7052028
$11,54 Unit Price incl. VAT
12
COOLANT TUBE; 1 IN
5139908
5141611
$89,24 Unit Price incl. VAT
13
COOLANT TUBE BRACKET; BLACK
5259433329
Not Available
14
COOLANT TUBE BRACKET; BLACK
5260766329
Not Available
15
COOLANT TUBE BRACKET
5451221
$16,79 Unit Price incl. VAT
16
SCR-M6X1X40 TR/TX-M
7519001
$7,34 Unit Price incl. VAT
17
RADIATOR HOSE; UPPER
5414528
$125,99 Unit Price incl. VAT
18
ENGINE OUTLET HOSE; REAR
5414530
$141,74 Unit Price incl. VAT
19
HOSE-LWR RAD LONG
5414532
$89,24 Unit Price incl. VAT
20
ENGINE INLET HOSE; REAR
5414976
$83,99 Unit Price incl. VAT
21
SPRINGBAND CLAMP; 35/12
7080844
$19,94 Unit Price incl. VAT
22
BRACKET MOUNT; UPPER; BLACK
5256879329
Not Available
23
HOSE CLAMP; 25-40 MM
7081192
$14,69 Unit Price incl. VAT
24
BOLT M6 X 1.0 X 20
7518529
$2,09 Unit Price incl. VAT
25
SCREW #14 X 1 HI/LO
7518158
$9,44 Unit Price incl. VAT
26
COOLANT TUBE; 1 IN
5139909
$83,99 Unit Price incl. VAT
27
SCREW
7512026
$2,09 Unit Price incl. VAT
28
LINE FUEL 1/8 ID 600 CM.
8360009600
Not Available

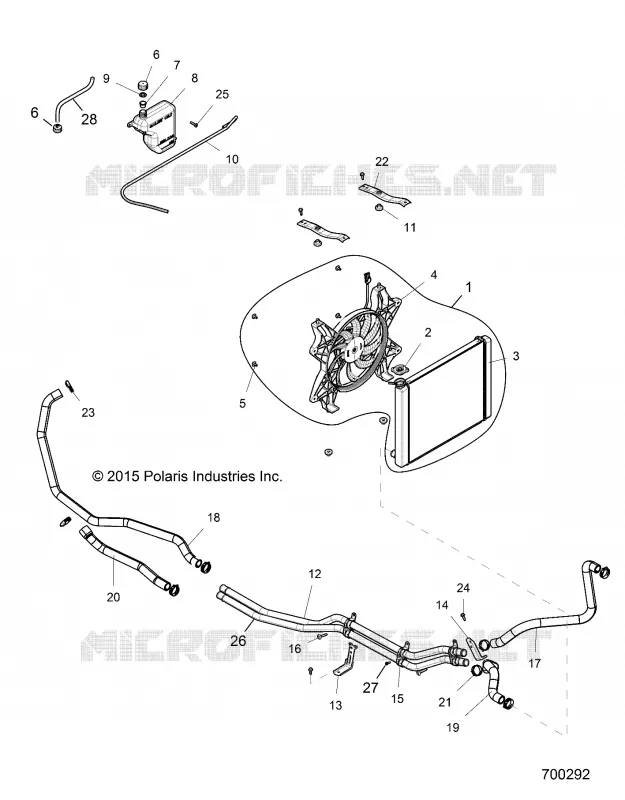

Find the detailed ENGINE, COOLING SYSTEM POLARIS diagram on this page. This exploded view allows you to identify the various components you need to maintain your machine and quickly find their original POLARIS part number.
