Parts Catalog
DRIVE TRAIN, CLUTCH COVER AND DUCTING
5
Parts Diagram
Parts Catalog
CHASSIS, MAIN FRAME AND SKID PLATES
by
DRIVE TRAIN, SECONDARY CLUTCH
DRIVE TRAIN, CLUTCH COVER AND DUCTING
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
1
CLUTCH COVER SEAL OUTER
5521831
5526449
$78,74 Unit Price incl. VAT
2
SCR-TFHFL-M6X1.0X20 ZOD
7519279
$19,94 Unit Price incl. VAT
3
SHOCK FTA [SEE PAGE- SUSPENSION SHOCK FRONT TRACK]
*******
Not Available
4
INNER CLUTCH COVER ASSEMBLY
2635158
$314,99 Unit Price incl. VAT
5
OUTER CLUTCH COVER ASSEMBLY
2635611
$346,49 Unit Price incl. VAT
6
DRIVE BELT
3211180
$278,24 Unit Price incl. VAT
7
CLUTCH WASHER; RETAINER
5132441
$41,99 Unit Price incl. VAT
8
BELT SCREEN BRACKET
5256957
$62,99 Unit Price incl. VAT
9
AIR OUTLET CLUTCH HOSE
5414537
$178,49 Unit Price incl. VAT
10
CLUTCH INTAKE HOSE
5415317
$188,99 Unit Price incl. VAT
11
INTAKE BOOT; PLASTIC
5451776
$18,89 Unit Price incl. VAT
12
INTAKE BOOT CLUTCH
5813639
$19,94 Unit Price incl. VAT
13
COVER SEAL
5813708
$41,99 Unit Price incl. VAT
14
3.75 SS
7080907
$20,99 Unit Price incl. VAT
15
WORM DRIVE CLAMP
7081626
$14,69 Unit Price incl. VAT
16
P-CLAMP; LARGE
7082035
$41,99 Unit Price incl. VAT
17
DECAL-BELT CAUTION/CHECK
7177469
Not Available
18
BOLT M6 X 1.0 X 20
7518529
$2,09 Unit Price incl. VAT
19
SCREW M10 X 1.25-6G
7519043
$17,84 Unit Price incl. VAT
20
TORX SCREW; #14 X 3/4
7519045
$6,29 Unit Price incl. VAT
21
SCR-M14X1.5X215; HX; 8.8
7519208
7518412
$52,49 Unit Price incl. VAT
22
WASHER
7555748
$9,44 Unit Price incl. VAT
23
SCREW HI/LO M6 X 35
7519330
$7,34 Unit Price incl. VAT
24
WASHER
7556003
$11,54 Unit Price incl. VAT
25
WASHER .406 X 1.25 X .125
7556130
$11,54 Unit Price incl. VAT
26
CLUTCH HOSE; AIR INLET
5414580
$173,24 Unit Price incl. VAT
27
INTAKE DUCT; CLUTCH; AIR
5450655
$194,24 Unit Price incl. VAT
28
CLAMP-HOSE OETIKER 94.8-98
7081914
$19,94 Unit Price incl. VAT
29
CLUTCH COVER GUARD BRACKET
5256223
$68,24 Unit Price incl. VAT
30
AIR INLET CLUTCH DUCT
5439086
$73,49 Unit Price incl. VAT
31
SCR-M6X1.0X20MM TX PH 8.8-B
7518546
$6,29 Unit Price incl. VAT
32
SCR-#14X3/4 HI/LO-PH-PN TRX-M
7519205
$3,14 Unit Price incl. VAT
33
HEX FLANGE NUT; 6 MM X 1.0 MM
7547453
$7,34 Unit Price incl. VAT
34
O RING-.364X.504X.07
5410542
5411432
$9,44 Unit Price incl. VAT
35
DRAIN PLUG
5434264
$10,49 Unit Price incl. VAT
36
COVER-CLUTCH OUTER;SP
5451767
2635611
$346,49 Unit Price incl. VAT

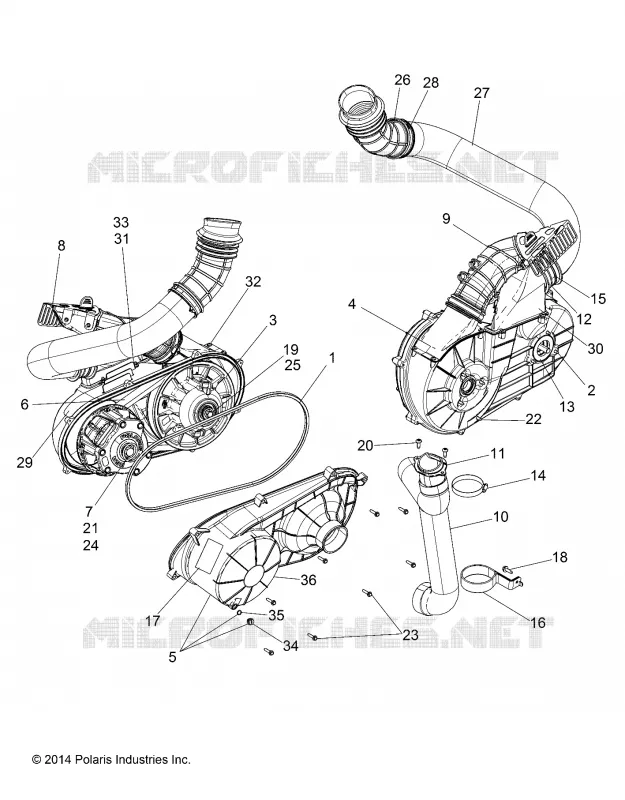

Find the detailed DRIVE TRAIN, CLUTCH COVER AND DUCTING POLARIS diagram on this page. This exploded view allows you to identify the various components you need to maintain your machine and quickly find their original POLARIS part number.
