Engine displacement
1000
2
Year
2016
3
Trim
RZR XP 1000
4
Parts Catalog
SUSPENSION, REAR SHOCK
5
Parts Diagram
Parts Catalog
REAR SUSPENSION CONTROL ARMS
by
SUSPENSION, REAR SHOCK
28
29
30
30
30
31
32
33
34
35
36
37
38
39
40
40
41
42
43
44
45
46
1
SHOCK; REAR; 2.5
7044376
9999999
Not Available
2
LOOP; BODY; 2.5IN (1325150)
1800605
$482,99 Unit Price incl. VAT
3
SPHERICAL BEARING
1800592
$101,84 Unit Price incl. VAT
4
PISTON-2.5 IN RES (WER-925205)
1800480
9999999
Not Available
5
CHECK VALVE (1125712)
1800546
9999999
Not Available
6
CLICKER BOLT (1125408)
1800547
9999999
Not Available
7
NUT-7/16 CRIMP
1800164
$17,84 Unit Price incl. VAT
8
ADJUSTER KNOB (1325604)
1800553
9999999
Not Available
9
BALL .25 (1261250)
1800548
9999999
Not Available
10
NUT-(WER-1125697)
1800492
9999999
Not Available
11
SHAFT LOOP
1800555
$440,99 Unit Price incl. VAT
12
BODY; 2.5 IN; 18.55L
1800606
9999999
Not Available
13
HOSE; 28 IN
1800607
9999999
Not Available
14
MOUNT; 2.5IN;ADJ RES (1325696)
1800608
$440,99 Unit Price incl. VAT
15
SPACER; 2.287L (1325106)
1800610
$115,49 Unit Price incl. VAT
16
END CAP;2.5IN (1325207)
1800552
$241,49 Unit Price incl. VAT
17
NEEDLE BOLT 1.70L (1300101)
1800611
9999999
Not Available
18
NUT-(WER-1125613)
1800493
9999999
Not Available
19
BODY RES. 2.5X8.5 1325602
1800644
$167,99 Unit Price incl. VAT
20
SCREW-BLEED W/O RING
1800074
9999999
Not Available
21
BUMPER
1800201
1800593
$125,99 Unit Price incl. VAT
22
PISTON BAND
1800509
9999999
Not Available
23
O-RING BLEED SCREW
1800210
$3,14 Unit Price incl. VAT
24
BLEED SCREW (10)
1800043
$12,59 Unit Price incl. VAT
25
O-RING
1800508
$10,49 Unit Price incl. VAT
26
NEEDLE; 4.225L (1300121)
1800612
9999999
Not Available
27
O-RING
1800613
$20,99 Unit Price incl. VAT
28
SHRADER VALVE
1800021
9999999
Not Available
29
RING-RETAINING(WER-1202125)
1800507
$20,99 Unit Price incl. VAT
30
O-RING
1800500
$3,66 Unit Price incl. VAT
31
WIPER
1800506
$83,99 Unit Price incl. VAT
32
SHAFT SEAL
1800505
9999999
Not Available
33
BUSHING-SHAFT (WER-220327)
1800504
9999999
Not Available
34
O-RING (1325116)
1800614
9999999
Not Available
35
SPRING-D-TENT(10)
1800128
$20,99 Unit Price incl. VAT
36
BALL-D-TENT(10)
1800127
$12,59 Unit Price incl. VAT
37
O-RING (WER-400614)
1800501
$13,64 Unit Price incl. VAT
38
O-RING
1800503
$3,14 Unit Price incl. VAT
39
SCREW 10X5/8 BTN SS (500603)
1800357
$6,29 Unit Price incl. VAT
40
RETAINING RING
1800482
$20,99 Unit Price incl. VAT
41
SHAFT; SSCHR NEEDLE (1425111)
1800620
$440,99 Unit Price incl. VAT
42
WASHER; CLICKER BOLT 1425113
1800639
9999999
Not Available
43
NUT 7/16 NYLOCK (1425112)
1800638
$9,44 Unit Price incl. VAT
44
PISTON; 2.5 NO BLD (1425128)
1800659
9999999
Not Available
45
SPRING NUT; 2.5 IN
1800715
9999999
Not Available
46
SEAL HEAD ASSEMBLY
1800549
9999999
Not Available

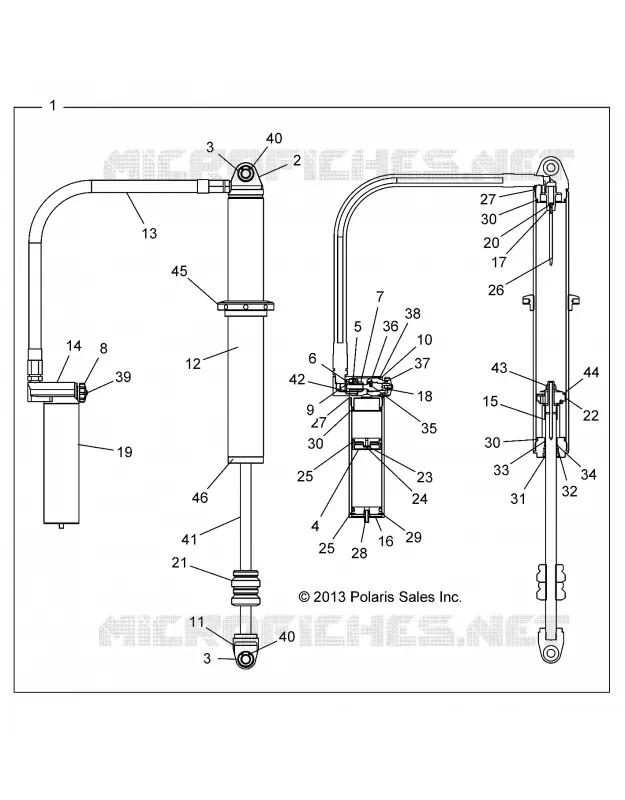

Find the detailed SUSPENSION, REAR SHOCK POLARIS diagram on this page. This exploded view allows you to identify the various components you need to maintain your machine and quickly find their original POLARIS part number.
