Engine displacement
1000
2
Year
2016
3
Trim
RZR XP 1000
4
Parts Catalog
ENGINE, MOUNTING
5
Parts Diagram
Parts Catalog
ENGINE, DIPSTICK AND OIL FILTER
by
ENGINE, THROTTLE PEDAL
ENGINE, MOUNTING
1
2
2
3
4
5
6
6
7
8
9
10
10
11
12
13
14
14
15
1
KIT-LONG BLOCK 999 ETC
2205905
2207368
$11 124,74 Unit Price incl. VAT
2
TRANSJOINT BRACKET MACHINED
5139904
5143635
$83,99 Unit Price incl. VAT
2
BRKT-TRANSJOINT MAG MACH
5138469
$194,24 Unit Price incl. VAT
3
WELD NUT PLATE
5259964
$41,99 Unit Price incl. VAT
4
SCREW M10 X 1.25-6G
7519043
$17,84 Unit Price incl. VAT
5
SCR-HXFL-M10X1.25X75 10.9 ZOD
7519286
$13,64 Unit Price incl. VAT
6
WASHER
7556153
$3,66 Unit Price incl. VAT
7
ENGINE MOUNT WELD; BLACK
1019852329
Not Available
8
DRIVELINE ISOLATOR MOUNT
1332955
$136,49 Unit Price incl. VAT
9
ENGINE MOUNT BRACKET
5257952
$62,99 Unit Price incl. VAT
10
HEX HEAD SCREW; 8 MM X 1.25 MM X 45 MM
7519097
$3,14 Unit Price incl. VAT
11
HEX FLANGE SCREW 10 MM X 1.25 MM X 40 MM
7519332
$10,49 Unit Price incl. VAT
12
PALNUT
7547030
$9,44 Unit Price incl. VAT
13
NYLOC OLIVE NUT; 8 MM X 1.25 MM
7547332
$7,34 Unit Price incl. VAT
14
NYLOC NUT
7547333
$3,14 Unit Price incl. VAT
15
HEAD BOLT 10MM X 1.50MM X60MM
7518826
$9,44 Unit Price incl. VAT

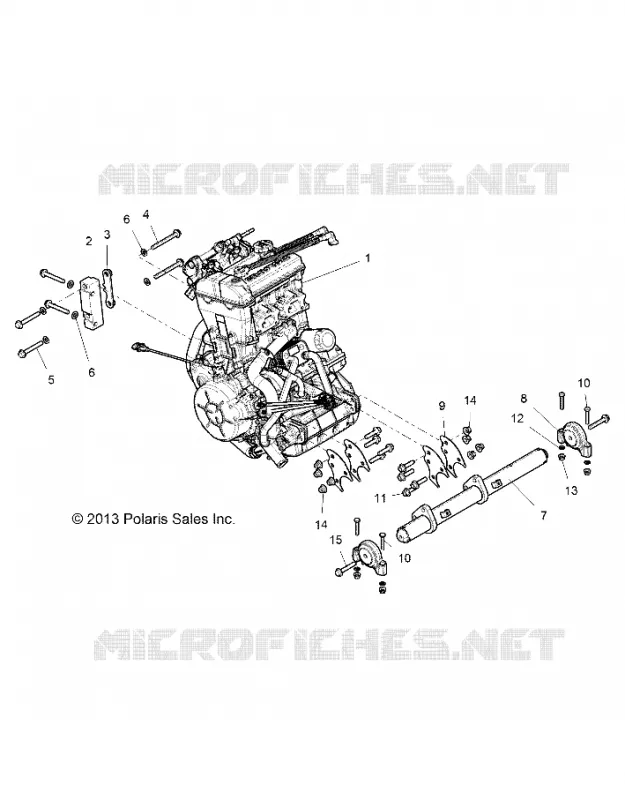

Find the detailed ENGINE, MOUNTING POLARIS diagram on this page. This exploded view allows you to identify the various components you need to maintain your machine and quickly find their original POLARIS part number.
