1
Engine displacement
1000
2
Year
2016
3
Trim
RZR XP 1000
4
Parts Catalog
SUSPENSION, REAR SHOCK
5
Parts Diagram
Parts Catalog
FRONT SUSPENSION CONTROL ARMS
by
DOORSS
SUSPENSION, REAR SHOCK
1
2
2
3
4
5
6
7
8
9
10
10
11
12
13
14
14
15
16
17
18
19
20
21
22
22
23
24
25
26
27
27
28
29
30
31
32
33
33
34
35
36
37
38
39
40
41
42
43
44
45
46
47
48
1
SHOCK; REAR
7044257
9999999
Not Available
2
SPHERICAL BEARING
1800592
$101,84 Unit Price incl. VAT
3
SHAFT LOOP
1800555
$440,99 Unit Price incl. VAT
4
NUT 7/16 NYLOCK (1425112)
1800638
$9,44 Unit Price incl. VAT
5
END CAP;2.5IN (1325207)
1800552
$241,49 Unit Price incl. VAT
6
PISTON-2.5 IN RES (WER-925205)
1800480
9999999
Not Available
7
PISTON BAND
1800509
9999999
Not Available
8
O-RING BLEED SCREW
1800210
$3,14 Unit Price incl. VAT
9
BLEED SCREW (10)
1800043
$12,59 Unit Price incl. VAT
10
O-RING
1800508
$10,49 Unit Price incl. VAT
11
CHECK VALVE (1125712)
1800546
9999999
Not Available
12
CLICKER BOLT (1125408)
1800547
9999999
Not Available
13
NUT-7/16 CRIMP
1800164
$17,84 Unit Price incl. VAT
14
ADJUSTER KNOB (1325604)
1800553
9999999
Not Available
15
BALL .25 (1261250)
1800548
9999999
Not Available
16
NUT-(WER-1125697)
1800492
9999999
Not Available
17
NUT-(WER-1125613)
1800493
9999999
Not Available
18
O-RING (WER-400614)
1800501
$13,64 Unit Price incl. VAT
19
SPRING-D-TENT(10)
1800128
$20,99 Unit Price incl. VAT
20
BALL-D-TENT(10)
1800127
$12,59 Unit Price incl. VAT
21
SNAP RING .875 (1425110503470
1800643
$68,24 Unit Price incl. VAT
22
BUMPER
1800201
1800593
$125,99 Unit Price incl. VAT
23
O-RING
1800613
$20,99 Unit Price incl. VAT
24
SHAFT CHR NEEDLE 7/8 1425122
1800713
$262,49 Unit Price incl. VAT
25
SEAL HEAD ASSEMBLY
1800549
9999999
Not Available
26
SPACER 2.037L 1425106
1800657
$52,49 Unit Price incl. VAT
27
O-RING
1800500
$3,66 Unit Price incl. VAT
28
BODY RES. 2.5X9.5 (1425103)
1800633
9999999
Not Available
29
SHRADER VALVE
1800021
9999999
Not Available
30
RING-RETAINING(WER-1202125)
1800507
$20,99 Unit Price incl. VAT
31
SCREW 10X5/8 BTN SS (500603)
1800357
$6,29 Unit Price incl. VAT
32
O-RING
1800503
$3,14 Unit Price incl. VAT
33
WIPER; .875SHFT (1425107)
1800641
$68,24 Unit Price incl. VAT
34
SHAFT SEAL; .875
1800642
9999999
Not Available
35
O-RING
1800636
9999999
Not Available
36
CLICKER KNOB
1800481
9999999
Not Available
37
LOOP; BODY; 2.5IN (1325150)
1800605
$482,99 Unit Price incl. VAT
38
BRIDGE PB (1325695)
1800550
9999999
Not Available
39
MOUNT-RES 2.5IN (WER-1125335)
1800488
$167,99 Unit Price incl. VAT
40
O-RING
1800497
$10,49 Unit Price incl. VAT
41
SPRING NUT; 2.5 IN
1800715
9999999
Not Available
42
O-RING (WER-1125232)
1800499
9999999
Not Available
43
BODY 2.5 17.697L 1425123
1800714
9999999
Not Available
44
O-RING (WER-1125229)
1800498
9999999
Not Available
45
O-RING
1800502
$3,66 Unit Price incl. VAT
46
O-RING 2-031 VITON WER-1425031
1800717
9999999
Not Available
47
PISTON-2.5 HIFLO WER-1425033
1800716
9999999
Not Available
48
LOCK NUT PB (1325345)
1800551
9999999
Not Available

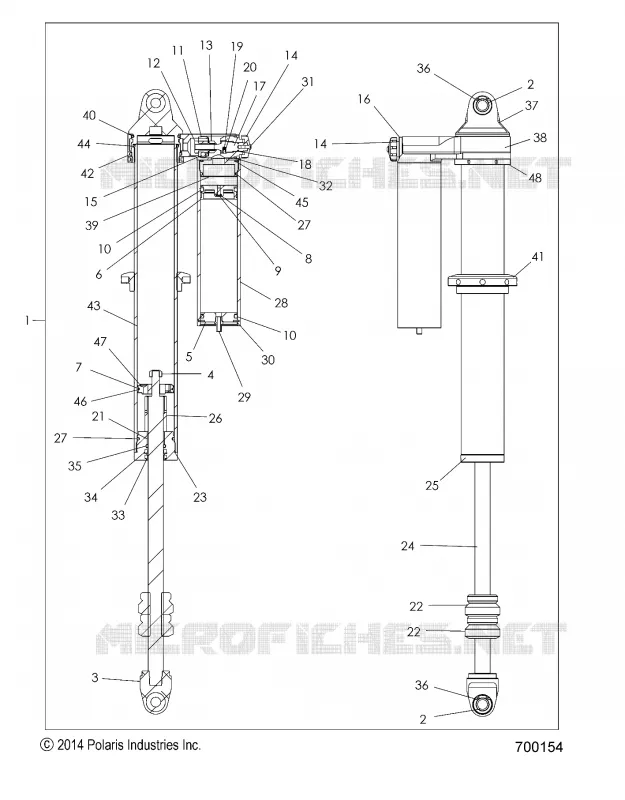

Find the detailed SUSPENSION, REAR SHOCK POLARIS diagram on this page. This exploded view allows you to identify the various components you need to maintain your machine and quickly find their original POLARIS part number.


The diagrams are not contractually binding. If you have any doubts, our professionals are available to answer your questions. When adding a part to your cart, make sure to order the desired quantity. The unit price shown is the price for each reference at a quantity of 1.
