1
Engine displacement
autre
2
Year
2007
3
Trim
HAWKEYE 2X4/4X4 - A07LB27AA/AC/LH27AA/AB/AC/AD/AL
4
Parts Catalog
REAR WHEEL AND BRAKE DISK/HUBS/BEARING CARRIERS
5
Parts Diagram
Parts Catalog
THROTTLE ASSEMBLY
by
BODYWORK
REAR WHEEL AND BRAKE DISK/HUBS/BEARING CARRIERS
1
1
2
2
3
3
4
4
5
5
5
5
6
6
7
7
7
7
8
8
9
9
10
11
12
13
13
13
13
13
13
14
14
14
14
15
15
1
2
2
3
3
3
4
5
6
7
8
9
10
11
12
13
14
1
CASTLE NUT; 18 MM X 1.5 MM
7547337
$3,66 Unit Price incl. VAT
2
COTTER PIN
7661404
$9,44 Unit Price incl. VAT
3
CONE WASHER
7555796
$14,69 Unit Price incl. VAT
4
HUB; REAR
5135546
9999999
Not Available
5
PRESS FIT STUD
7518378
$3,14 Unit Price incl. VAT
5
STUD 3/8-24 X 1.12
7515513
9999999
Not Available
6
CARRIER BEARING; LEFT; REAR; MACHINED
5135671
$169,04 Unit Price incl. VAT
7
FITTING LUBRICATION THREADED(1
7080433
$2,09 Unit Price incl. VAT
8
BEARING-AXLE TUBE/HUBSTRUT
3514342
3514634
$73,49 Unit Price incl. VAT
9
INTERNAL RETAINING RING
7710507
$4,19 Unit Price incl. VAT
10
RIM VALVE
1525017
$12,59 Unit Price incl. VAT
11
BOLT-M8X1025X20 HSCOK CSNK PCH
7518451
$17,84 Unit Price incl. VAT
12
BRAKE DISC; REAR
5248213
9999999
Not Available
13
RIM REAR 12X8.0 BLK
1520713067
Not Available
13
RIM-REAR 12X8 CAST ALUM
1520899
9999999
Not Available
13
WELD-RIM REAR 12X8 NEW RIM SLV
1520713486
Not Available
14
WHEEL NUT
7547309
$6,81 Unit Price incl. VAT
14
FLANGE NUT
7547237
$4,19 Unit Price incl. VAT
15
TIRE REAR 22 X 10 -12
5413077
$161,69 Unit Price incl. VAT
15
TIRE CARLISLE ACT 23X10X12 RR_
2876085
9999999
Not Available

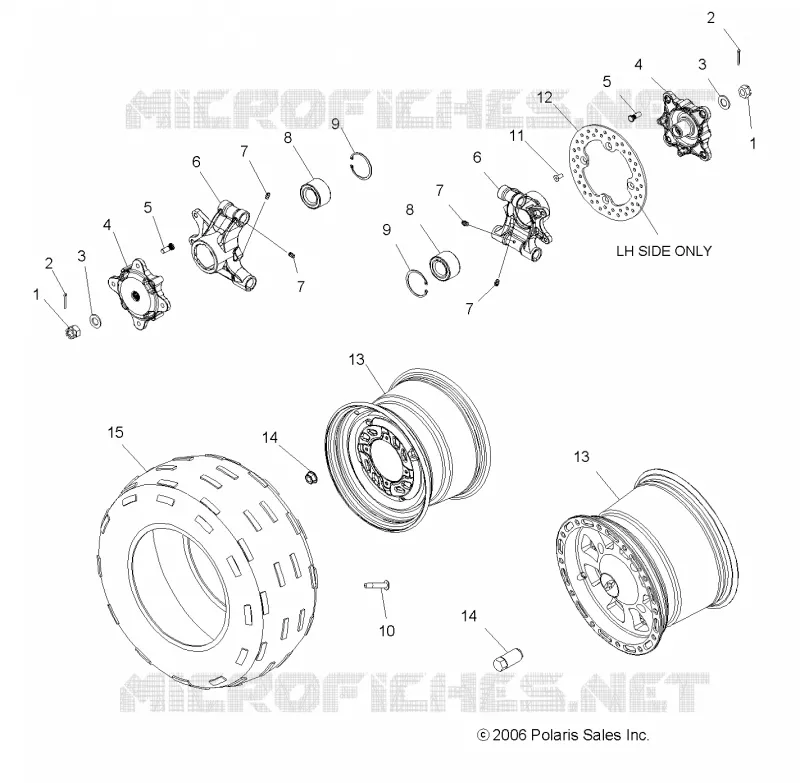

Find the detailed REAR WHEEL AND BRAKE DISK/HUBS/BEARING CARRIERS POLARIS diagram on this page. This exploded view allows you to identify the various components you need to maintain your machine and quickly find their original POLARIS part number.


The diagrams are not contractually binding. If you have any doubts, our professionals are available to answer your questions. When adding a part to your cart, make sure to order the desired quantity. The unit price shown is the price for each reference at a quantity of 1.
