1
Engine displacement
autre
2
Year
2007
3
Trim
HAWKEYE 2X4/4X4 - A07LB27AA/AC/LH27AA/AB/AC/AD/AL
4
Parts Catalog
REAR SUSPENSION
5
Parts Diagram
Parts Catalog
SEAT
by
SHOCK
REAR SUSPENSION
1
2
2
3
4
4
4
4
4
5
6
7
8
9
9
10
11
11
12
13
13
13
13
14
15
15
16
17
18
1
2
3
3
3
3
3
3
3
3
3
3
4
4
4
4
5
5
6
7
7
8
9
10
10
10
10
11
11
12
13
14
15
15
15
16
17
18
1
BOLT-M10X1.5X75 HX HD FLG
7518473
$9,44 Unit Price incl. VAT
2
BUSHING; EXTRA SHORT; 25.4 MM
5436971
9999999
Not Available
3
PIVOT TUBE; 51.95 MM
5135495
9999999
Not Available
4
HEX FLANGE NUT; 10 MM X 1.5 MM
7547313
$2,09 Unit Price incl. VAT
5
HEX HEAD FLANGE BOLT 10MM X 1.5MM X230MM
7518472
$11,54 Unit Price incl. VAT
6
BOLT-M10X1.5X20 HXHDFLG
7518700
$7,34 Unit Price incl. VAT
7
BRKT-SUPPORT REAR SUSP BLK
5249760067
Not Available
8
PIVOT TUBE 209.55 MM
5135494
9999999
Not Available
9
A-ARM BUSHING; LONG; 102.36 MM
5436973
$9,44 Unit Price incl. VAT
10
FITTING LUBRICATION THREADED(1
7080433
$2,09 Unit Price incl. VAT
11
WELD-CONTROL ARMLHBLK
1015704067
Not Available
11
WELD-CONTROL ARMRHBLK
1015705067
Not Available
12
HEX HEAD FLANGE BOLT 10MM X 1.5MM X 95MM
7518468
$10,49 Unit Price incl. VAT
13
BUSHING-SHORT 35.05MM
5436972
5439270
$4,19 Unit Price incl. VAT
14
PIVOT TUBE; 73.74 MM
5135493
$47,24 Unit Price incl. VAT
15
BRKT-ARM CONTROL LH BLK
5249046067
Not Available
15
BRKT-ARM CONTROL RH BLK
5249047067
Not Available
16
HEX HEAD FLANGE BOLT 10MM X 1.5MM X 165
7518668
$13,64 Unit Price incl. VAT
17
LUBRICATION FITTING
7080424
$9,44 Unit Price incl. VAT
18
PIVOT TUBE; 142.74 MM
5135637
$62,99 Unit Price incl. VAT

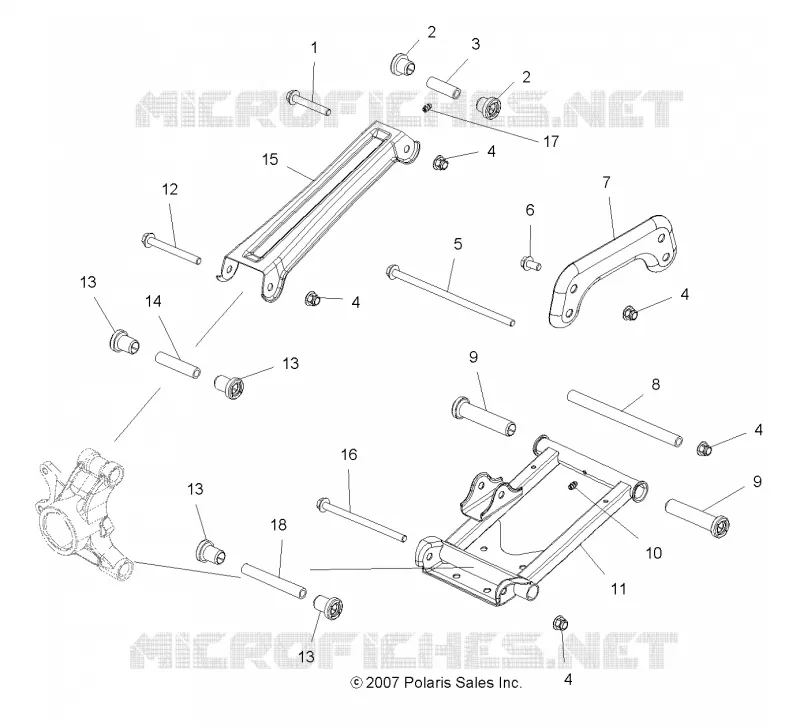

Find the detailed REAR SUSPENSION POLARIS diagram on this page. This exploded view allows you to identify the various components you need to maintain your machine and quickly find their original POLARIS part number.


The diagrams are not contractually binding. If you have any doubts, our professionals are available to answer your questions. When adding a part to your cart, make sure to order the desired quantity. The unit price shown is the price for each reference at a quantity of 1.
