1
Engine displacement
autre
2
Year
2007
3
Trim
HAWKEYE 2X4/4X4 - A07LB27AA/AC/LH27AA/AB/AC/AD/AL
4
Parts Catalog
FRONT STRUT
5
Parts Diagram
Parts Catalog
STEERING POST (BUILT 4/01/07 AND BEFORE)
by
TORSION BAR
FRONT STRUT
1
1
1
1
2
3
4
5
5
6
7
8
9
9
9
9
10
11
12
13
14
15
16
1
KNUCKLE-FRONT MACH RH
5135608
9999999
Not Available
1
KNUCKLE-FRONT MACH LH
5135607
9999999
Not Available
1
ASM-KNUCKLE FRONT LH
1521097
9999999
Not Available
1
ASM-KNUCKLE FRONT RH
1521098
9999999
Not Available
2
BEARING-AXLE TUBE/HUBSTRUT
3514342
3514634
$73,49 Unit Price incl. VAT
3
INTERNAL RETAINING RING
7710507
$4,19 Unit Price incl. VAT
4
HEX FLANGE NUT; 10 MM X 1.5 MM
7547313
$2,09 Unit Price incl. VAT
5
STRUT-FRONT 165.2 STROKE
7043113
9999999
Not Available
5
STRUT-FRT 165.2 STROKE CLEVIS
7043274
9999999
Not Available
6
CAM-ADJUSTER STRUT FRONT
5631795
9999999
Not Available
7
HEX FLANGE BOLT; 10 MM X 1.5 MM X 55 MM
7518474
$9,44 Unit Price incl. VAT
8
MCU BUMPER; 17.8 MM
5412665
$12,59 Unit Price incl. VAT
9
SPRING-COMP BLK
7043135067
Not Available
9
SPRING-COMP 17/60#IN BLK
7043214067
Not Available
9
SPRING-COMP 60#/IN INDY RED
7043135293
Not Available
9
SPRING-COMP 60#/IN SLVR
7043135385
Not Available
10
RETAINER SPRING
5243364
$36,74 Unit Price incl. VAT
11
BALL BOTTOM PIVOT
5432871
$19,94 Unit Price incl. VAT
12
SPACER-M12X1.75 STRUT
5135054
9999999
Not Available
13
PIVOT BALL; TOP
5432872
$19,94 Unit Price incl. VAT
14
SPACER RUBBER
5810291
$7,34 Unit Price incl. VAT
15
WASHER
7555749
$2,09 Unit Price incl. VAT
16
NUT-M12X1.75 HXFLG NYLON INS
7547327
9999999
Not Available

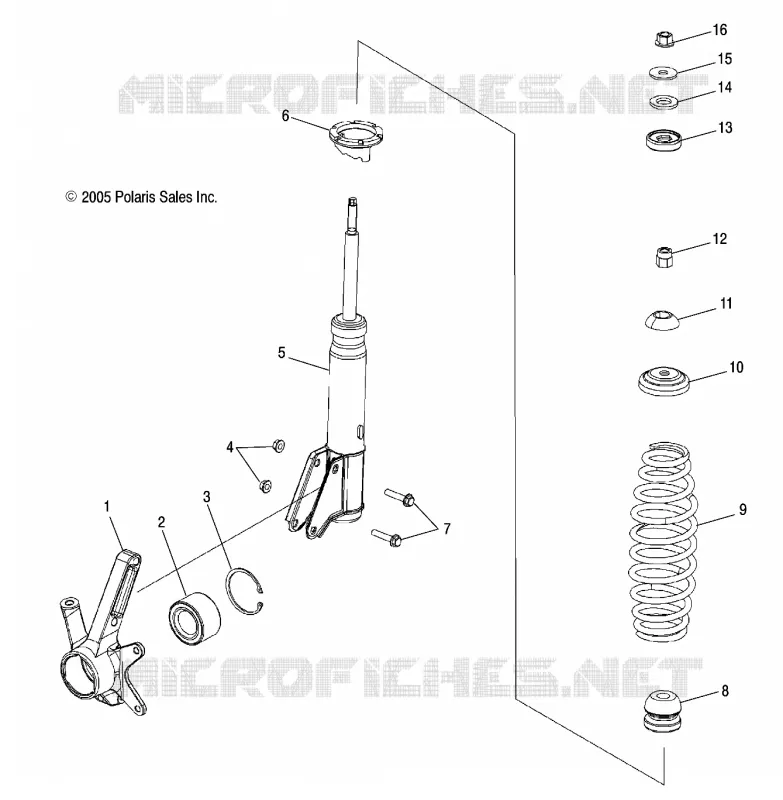

Find the detailed FRONT STRUT POLARIS diagram on this page. This exploded view allows you to identify the various components you need to maintain your machine and quickly find their original POLARIS part number.


The diagrams are not contractually binding. If you have any doubts, our professionals are available to answer your questions. When adding a part to your cart, make sure to order the desired quantity. The unit price shown is the price for each reference at a quantity of 1.
