1
Engine displacement
autre
2
Year
2007
3
Trim
HAWKEYE 2X4/4X4 - A07LB27AA/AC/LH27AA/AB/AC/AD/AL
4
Parts Catalog
ELECTRICAL
5
Parts Diagram
Parts Catalog
ENGINE, CRANKSHAFT AND PISTON
by
ENGINE MOUNTING
ELECTRICAL
1
1
2
2
2
2
3
4
5
6
7
7
8
9
10
11
12
13
14
15
16
17
17
18
19
20
21
22
1
2
3
4
5
6
7
1
DIODE-6AMP; 1/4 TERM
2410694
9999999
Not Available
2
SCREW
7512024
$9,44 Unit Price incl. VAT
3
IGNITION COIL ASSEMBLY
3089860
9999999
Not Available
4
REGULATOR RECTIFIER
4011182
9999999
Not Available
5
CAPACITOR DISCHARGE IGNITION (CDI)
3089978
9999999
Not Available
6
BOLT M6 X 1.0 X 20
7518529
$2,09 Unit Price incl. VAT
7
HARNESS-MAIN MS
2410610
9999999
Not Available
7
DECAL-FUSE BLOCK
7173852
9999999
Not Available
8
CLIP
7670102
$4,19 Unit Price incl. VAT
9
ROSEBUD CLIP
4020139
$9,44 Unit Price incl. VAT
10
CABLE TIE
7080138
$5,24 Unit Price incl. VAT
11
FUSE-MINI BLADE;15 AMP
2410280
4010859
$15,74 Unit Price incl. VAT
12
CABLE-BLK (BATTERY/FRAME)
4011233
9999999
Not Available
13
BOLT 5/8 LONG TORX PAN HEAD
7518238
$7,34 Unit Price incl. VAT
14
BRKT-BATTERY HOLD DOWN;BLK
5250157067
Not Available
15
KIT-BATTERY BOLT (SHORT)
2200361
9999999
Not Available
16
BATTERY-14AH DRY W/O ACID
4011359
4010774
$178,49 Unit Price incl. VAT
17
BATTERY PAD
5810290
5810290-CO
$13,64 Unit Price incl. VAT
18
TUBE BATTERY VENT 88 CM
5433156
9999999
Not Available
19
STARTER SOLENOID
4011483
$152,24 Unit Price incl. VAT
20
NUT-HXFLGHD M6 SERRATED
7547270
$7,34 Unit Price incl. VAT
21
CABLE-RED (BATTERY/SOLENOID)
4011287
9999999
Not Available
22
FUSIBLE LINK KIT; 0.8 MM
2202607
$73,49 Unit Price incl. VAT

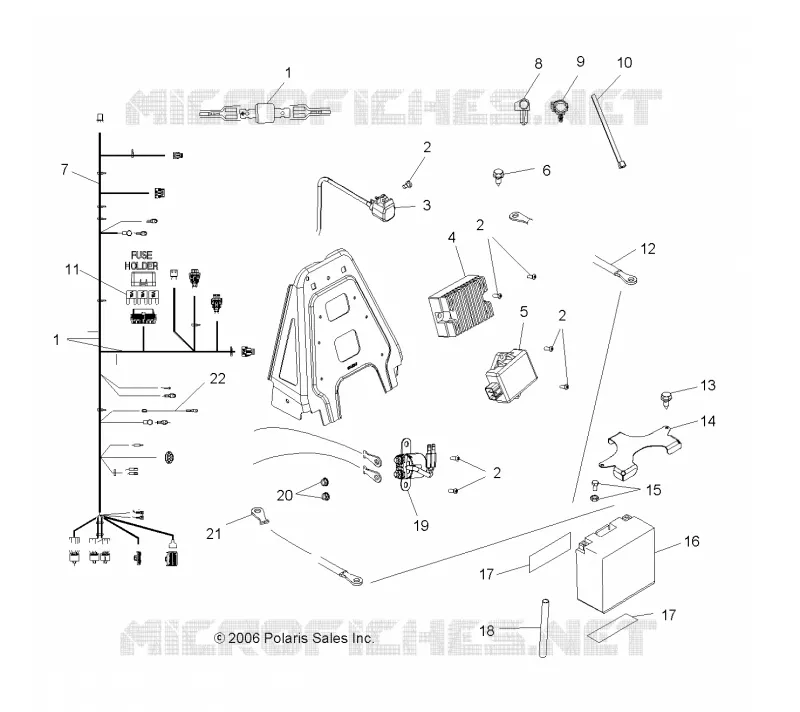

Find the detailed ELECTRICAL POLARIS diagram on this page. This exploded view allows you to identify the various components you need to maintain your machine and quickly find their original POLARIS part number.


The diagrams are not contractually binding. If you have any doubts, our professionals are available to answer your questions. When adding a part to your cart, make sure to order the desired quantity. The unit price shown is the price for each reference at a quantity of 1.
