Parts Catalog
ENGINE MOUNTING
5
Parts Diagram
Parts Catalog
ELECTRICAL
by
EXHAUST
ENGINE MOUNTING
1
1
2
3
4
5
5
6
6
7
8
9
10
10
11
12
13
14
15
12
17
17
17
18
18
18
1
2
3
4
5
6
7
8
9
10
10
11
12
13
14
15
12
17
18
1
LINE FUEL 1/8 ID 600 CM.
8360009600
Not Available
2
VALVE CHECK
7051011
9999999
Not Available
3
HEX FLANGE BOLT; 10 MM X 1.5 MM X 20 MM
7518460
$3,14 Unit Price incl. VAT
4
MOUNT-REAR ENGINERH
5248864
9999999
Not Available
5
BOLT 10 MM X 1.5 MM X 85
7518466
$9,44 Unit Price incl. VAT
6
HEX FLANGE NUT; 10 MM X 1.5 MM
7547313
$2,09 Unit Price incl. VAT
7
ENGINE AND TRANSMISSION PAPER GASKET
5812849
9999999
Not Available
8
SCR-M10X1.5X35 SOCHD W/PATCH
7518483
9999999
Not Available
9
ENGINE-ES300PFE011
1203369
9999999
Not Available
10
FUEL LINE; 1/4 ID
84500031525
Not Available
11
SMALL IN-LINE FILTER
2530009
$12,59 Unit Price incl. VAT
12
FITTING TEE
7052075
$17,84 Unit Price incl. VAT
13
FORMED ENGINE BREATHER HOSE
5413289
9999999
Not Available
14
HOSE-BREATHER CRANKCASE FORMED
5413290
9999999
Not Available
15
HOSE-BREATHER AIRBOX FORMED
5413291
9999999
Not Available
16
FITTING TEE
7052075
$17,84 Unit Price incl. VAT
17
HOSE CLAMP
7080699
$3,14 Unit Price incl. VAT
18
CLAMP HOSE SPRING
7080694
$10,49 Unit Price incl. VAT

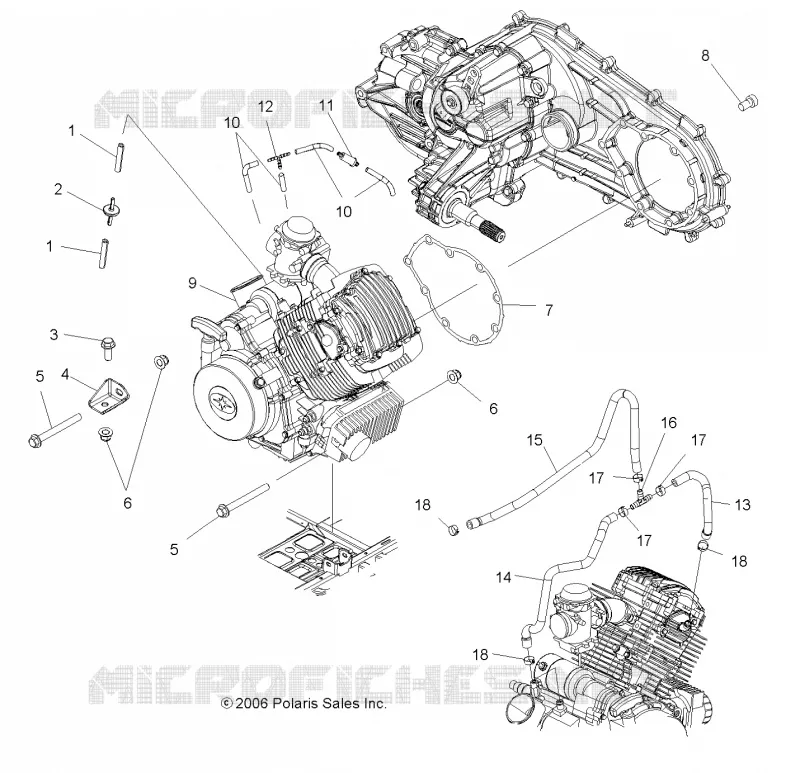

Find the detailed ENGINE MOUNTING POLARIS diagram on this page. This exploded view allows you to identify the various components you need to maintain your machine and quickly find their original POLARIS part number.


The diagrams are not contractually binding. If you have any doubts, our professionals are available to answer your questions. When adding a part to your cart, make sure to order the desired quantity. The unit price shown is the price for each reference at a quantity of 1.
