Engine displacement
1000
2
Year
2020
3
Trim
SPORTSMAN XP 1000 S 55"
4
Parts Catalog
CRANKCASE
5
Parts Diagram
Parts Catalog
COOLING SYSTEM AND WATER PUMP
by
STEERING, CONTROLS, THROTTLE ASM.
CRANKCASE
1
1
2
2
2
2
2
2
2
2
3
3
3
4
4
4
5
6
7
7
7
7
8
8
9
10
11
12
13
14
15
16
1
CRANKCASE 1204793
2205144
$3 464,99 Unit Price incl. VAT
2
DOWEL PIN; 6 MM X 10 MM
5132835
$4,19 Unit Price incl. VAT
3
BALANCE SHAFT WITH FLANGE SEAL; 55 MM
3610144
$14,69 Unit Price incl. VAT
4
PLUG-1/8 NPT;HX/SOC W/SEALANT
7052337
$6,29 Unit Price incl. VAT
5
PLUG-3/8 NPT;HX/SOC W/SEALANT
7052413
$8,39 Unit Price incl. VAT
6
PLUG-HEX SOCKET;1/4X18;SEALANT
7518835
$10,49 Unit Price incl. VAT
7
MAIN BEARING REAR/FRONT 55 MM
3514534
3515829
$20,99 Unit Price incl. VAT
8
CENTER MAIN BEARING 55 MM
3514535
3515830
$20,99 Unit Price incl. VAT
9
HEX FLANGE BOLT; 9 MM X 1.25 MM X 160 MM
7518804
$5,76 Unit Price incl. VAT
10
HEX FLANGED BOLT 9 MM X 1.25 MM X 115 MM
7518805
$10,49 Unit Price incl. VAT
11
HEX FLANGE SCREW; 6 MM X 35 MM
7518578
$7,34 Unit Price incl. VAT
12
HEX FLANGE SCREW; 6 MM X 20 MM
7518576
$6,29 Unit Price incl. VAT
13
CRANKSHAFT SEAL; 55.7 MM
3610152
$73,49 Unit Price incl. VAT
14
CRANKSEAL 32MM
3610220
$36,74 Unit Price incl. VAT
15
COPPER WASHER
5812232
7556937
$6,29 Unit Price incl. VAT
16
SOCKET PLUG; 12 MM X 1.5 MM
7052306
$31,49 Unit Price incl. VAT

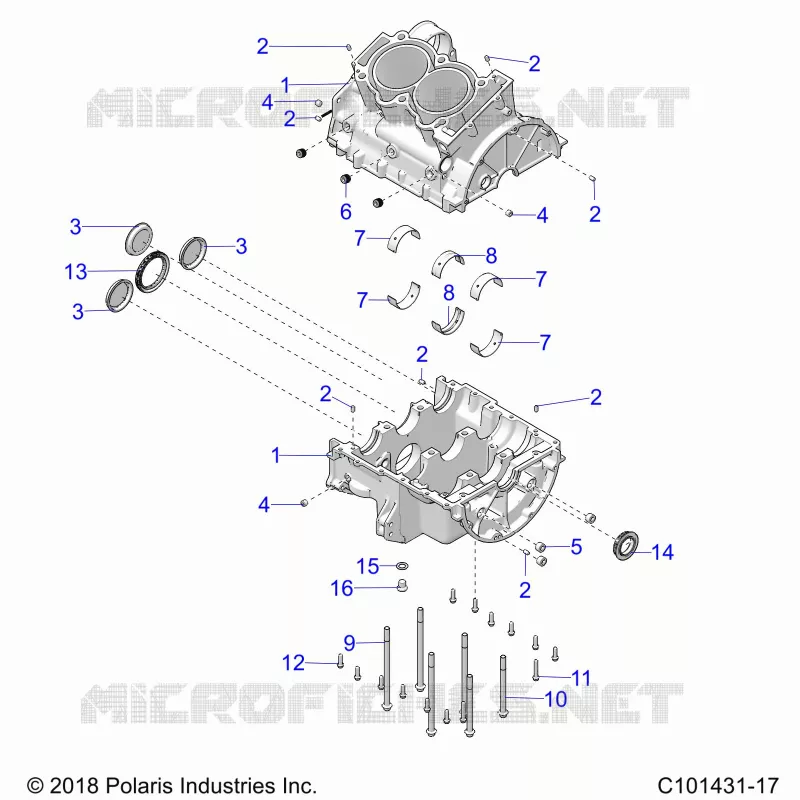

Find the detailed CRANKCASE POLARIS diagram on this page. This exploded view allows you to identify the various components you need to maintain your machine and quickly find their original POLARIS part number.
