IGNITION SYSTEM
5
Parts Diagram
Parts Catalog
IGNITION COIL MOUNTING
by
ELECTRICAL, LIGHTBAR
IGNITION SYSTEM
1
2
3
4
5
6
7
8
9
9
1
FLYWHEEL 560 WATT
4015585
4080627
$498,74 Unit Price incl. VAT
2
WATERPUMP DRIVE BOLT; LEFT
5140078
$57,74 Unit Price incl. VAT
3
SCR-M6X1.0X30 HX/SOC/CP-Y/D
7518544
7527860
$5,24 Unit Price incl. VAT
4
STATOR
4014406
$944,99 Unit Price incl. VAT
5
STATOR COVER GASKET
5813680
$73,49 Unit Price incl. VAT
6
RETAINER-STATOR WIRE
5261146
$10,49 Unit Price incl. VAT
7
SCR-M6X1.0X10 SHCS
7518765
7527859
$9,44 Unit Price incl. VAT
8
HEX FLANGE SCREW; 6 MM X 20 MM
7518576
$6,29 Unit Price incl. VAT
9
SPARK PLUG; 12 MM
3022553
9999999
Not Available

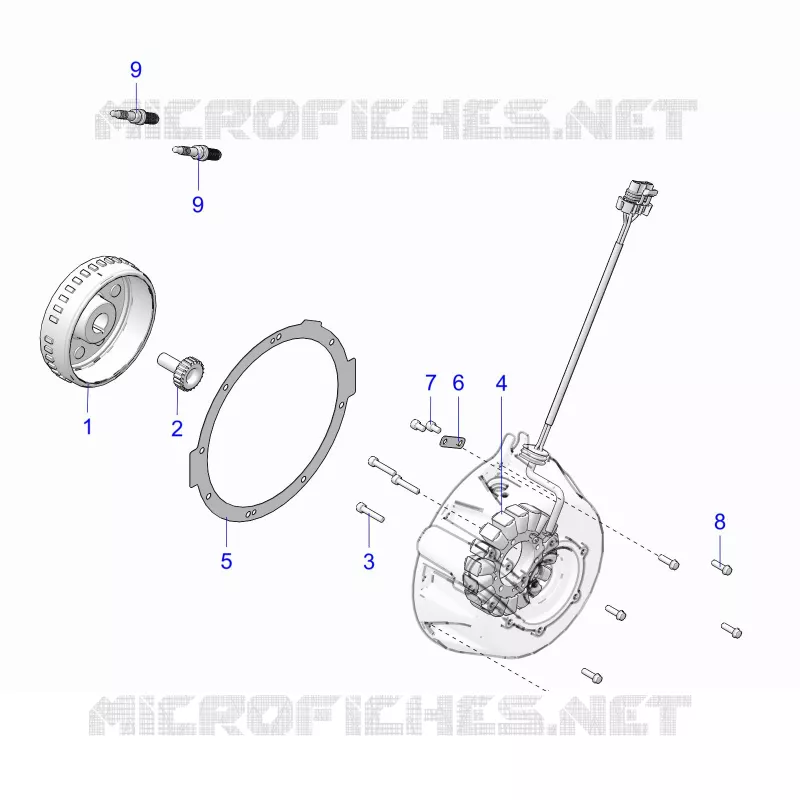

Find the detailed IGNITION SYSTEM POLARIS diagram on this page. This exploded view allows you to identify the various components you need to maintain your machine and quickly find their original POLARIS part number.
