Engine displacement
1000
2
Year
2020
3
Trim
SPORTSMAN XP 1000 S 55"
4
Parts Catalog
COOLING SYSTEM
5
Parts Diagram
Parts Catalog
COOLING BYPASS
by
COOLING SYSTEM AND WATER PUMP
COOLING SYSTEM
1
2
3
3
4
5
6
7
7
8
9
9
10
11
12
13
14
15
16
17
18
19
20
1
ASM-COOLANT SUPPLY
1241351
$157,49 Unit Price incl. VAT
2
ASM-COOLANT RETURN
1241350
$141,74 Unit Price incl. VAT
3
ASM-RADIATOR WL LED
1241448
$766,49 Unit Price incl. VAT
3
RADIATOR
1241264
$666,74 Unit Price incl. VAT
4
SPRINGBAND CLAMP; 35/12
7080844
$19,94 Unit Price incl. VAT
5
NYLOCK FLANGE NUT; 6 MM
7547274
7548027
$3,14 Unit Price incl. VAT
6
SCR-HXFL-M6X1.0X30 RIE DGPNT
7519202
$7,34 Unit Price incl. VAT
7
SPRING BAND CLAMPS; 32/12
7080843
$7,34 Unit Price incl. VAT
8
HOSE CLAMP; 25-40 MM
7081192
$14,69 Unit Price incl. VAT
9
BOTTLE COLLANT RECOVERY
5455427
$141,74 Unit Price incl. VAT
9
ASM. BOTTLE COOLANT RECOVERY
1241323
$178,49 Unit Price incl. VAT
10
GROMMET AND INSERT ASSEMBLY
5413509
$30,23 Unit Price incl. VAT
11
PRESSURE CAP; 13 PSI
1240466
$104,99 Unit Price incl. VAT
12
RADIATOR MOUNT GROMMET; LOWER
5413510
$30,23 Unit Price incl. VAT
13
OVERFLOW BOTTLE WITH FITTING CAP
5437635
$9,44 Unit Price incl. VAT
14
GASKET
5810279
$4,19 Unit Price incl. VAT
15
CAP PLUG9X(GRN) FLEX TEMP(10)
5433774
$10,49 Unit Price incl. VAT
16
FAN-12 ;RING;SHROUD;LED
2415280
$488,24 Unit Price incl. VAT
17
1/4 SAEJ2002;EPDM HOSE;600CM
8450120600
Not Available
18
CABLE TIE STRAP WITH EDGE CLIP
7081808
$10,49 Unit Price incl. VAT
19
LINE FUEL 1/8 ID 600 CM.
8360009600
Not Available
20
BOLT M6 X 1.0 X 20
7518529
$2,09 Unit Price incl. VAT

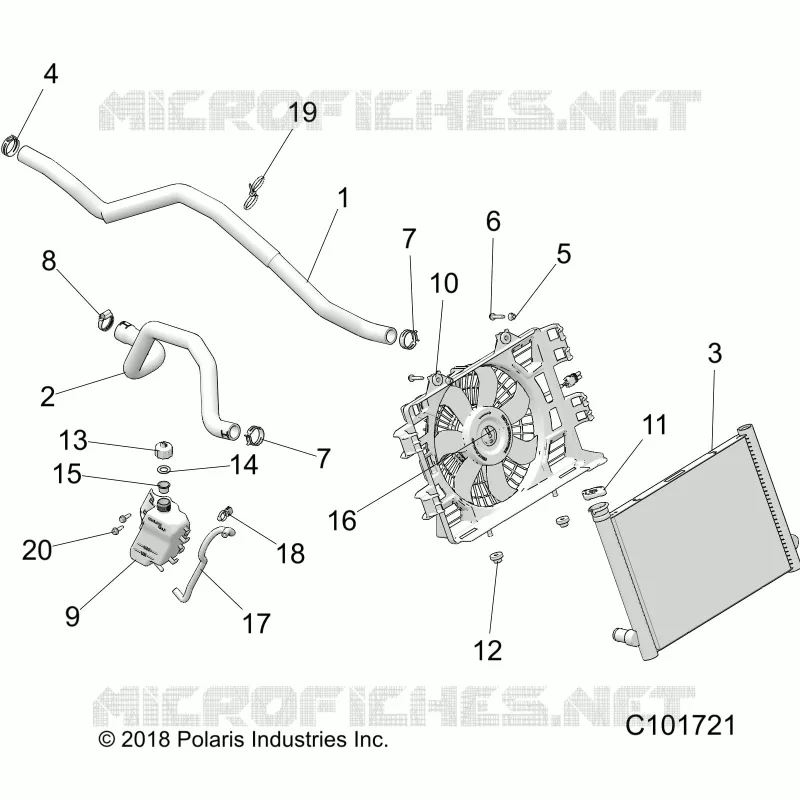

Find the detailed COOLING SYSTEM POLARIS diagram on this page. This exploded view allows you to identify the various components you need to maintain your machine and quickly find their original POLARIS part number.
