Parts Catalog
BRAKES, BRAKE PEDAL AND MASTER CYLINDER
5
Parts Diagram
Parts Catalog
BRAKE LINES
by
BRAKES, DOUBLE BORE CALIPER
BRAKES, BRAKE PEDAL AND MASTER CYLINDER
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
17
1
2-EAR RESERVOIR BRAKE ASSEMBLY; TALL
1911224
$68,24 Unit Price incl. VAT
2
DIAPHRAGM-RESERVOIR BRAKE
5413262
$9,44 Unit Price incl. VAT
3
RING-RESERVOIR BRAKE
5437041
$10,49 Unit Price incl. VAT
4
HOSE CLAMP
7080003
$2,09 Unit Price incl. VAT
5
HOSE-RESERVOIR BRAKE 826MM
1911267826
Not Available
6
MASTER CYLINDER ASSEMBLY
1913033
$257,24 Unit Price incl. VAT
7
NYLOCK FLANGE NUT; 6 MM
7547274
7548027
$3,14 Unit Price incl. VAT
8
SCR-M6X1.0X45 HX-FL-Y/D
7517950
$10,49 Unit Price incl. VAT
9
BRKT-BRAKE MOUNT;BLK
5266924329
Not Available
10
HEX FLANGE BOLT; 8 MM X 1.25 MM X 20 MM
7518555
$4,19 Unit Price incl. VAT
11
HEX FLANGE BOLT; 8 MM X 1.25 MM X 50 MM
7518677
$7,34 Unit Price incl. VAT
12
NYLOC NUT
7547333
$3,14 Unit Price incl. VAT
13
PEDAL PIVOT BUSHING
5433189
$7,34 Unit Price incl. VAT
14
TORSION SPRING; BRAKE
7041750
$16,79 Unit Price incl. VAT
15
WELD-LEVER BRAKE SPMN XP BLK
1913360067
Not Available
16
BOLT-M10X1.25X50 HXFLG-OLIVE D
7518559
$10,49 Unit Price incl. VAT
17
SPACER-12.7X10.2X30.5MM
5135720
$12,59 Unit Price incl. VAT

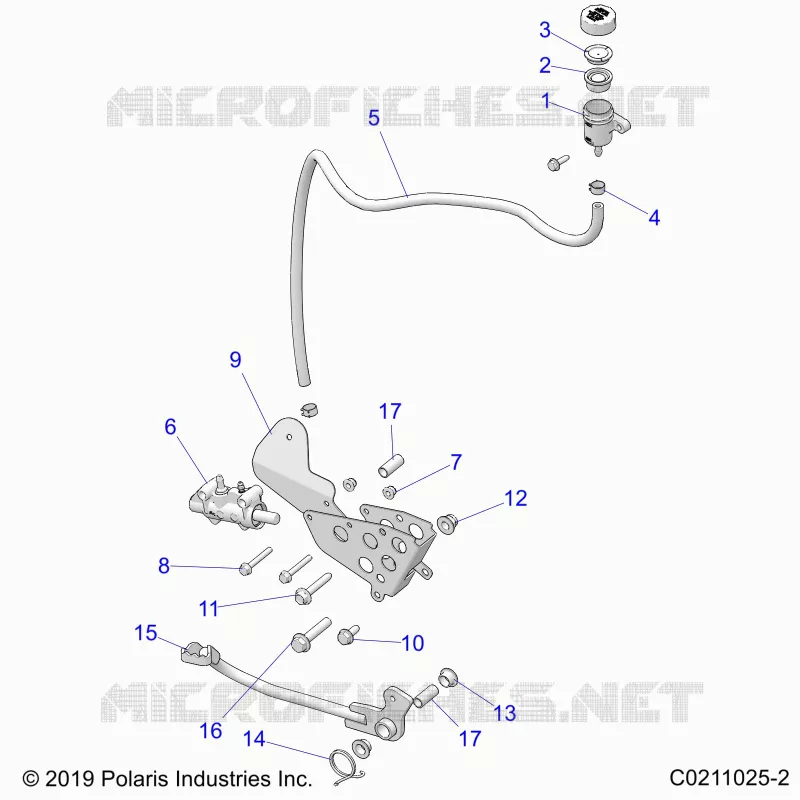

Find the detailed BRAKES, BRAKE PEDAL AND MASTER CYLINDER POLARIS diagram on this page. This exploded view allows you to identify the various components you need to maintain your machine and quickly find their original POLARIS part number.
