1
Engine displacement
1000
2
Year
2020
3
Trim
SPORTSMAN XP 1000 S 55"
4
Parts Catalog
FRONT SUSPENSION HUB AND STEERING KNUCKLE- A20SGE95AK (C101483)
5
Parts Diagram
Parts Catalog
OWNERS MANUAL
by
REAR SUSPENSION HUB AND BEARING CARRIER- A20SGE95AK (C101485)
FRONT SUSPENSION HUB AND STEERING KNUCKLE- A20SGE95AK (C101483)
1
KNUCKLE-STEERING MACH RH
5142904
5145223
$325,49 Unit Price incl. VAT
1
STEERING KNUCKLE; MACHINED; LEFT
5142903
5145222
$325,49 Unit Price incl. VAT
2
SEALED BALL BEARING; 44 X 72 X 33.1
3514924
$73,49 Unit Price incl. VAT
3
RETAINING RING
7710440
$18,89 Unit Price incl. VAT
4
ASM-WHEEL HUB;W/DISC
1522541
$414,74 Unit Price incl. VAT
4
WHEEL HUB; MATTE BLACK
5139978458
Not Available
5
FRONT DISC BRAKE
5254999
$125,99 Unit Price incl. VAT
6
BOLT FRONT LEFT 10 MM X 1.5 MM X 20 MM
7518978
$7,34 Unit Price incl. VAT
7
WHEEL STUD
7519753
$9,44 Unit Price incl. VAT
8
CASTLE NUT; 18 MM X 1.5 MM
7547337
$3,66 Unit Price incl. VAT
9
CONE WASHER
7555796
$14,69 Unit Price incl. VAT
10
COTTER PIN
7661404
$9,44 Unit Price incl. VAT

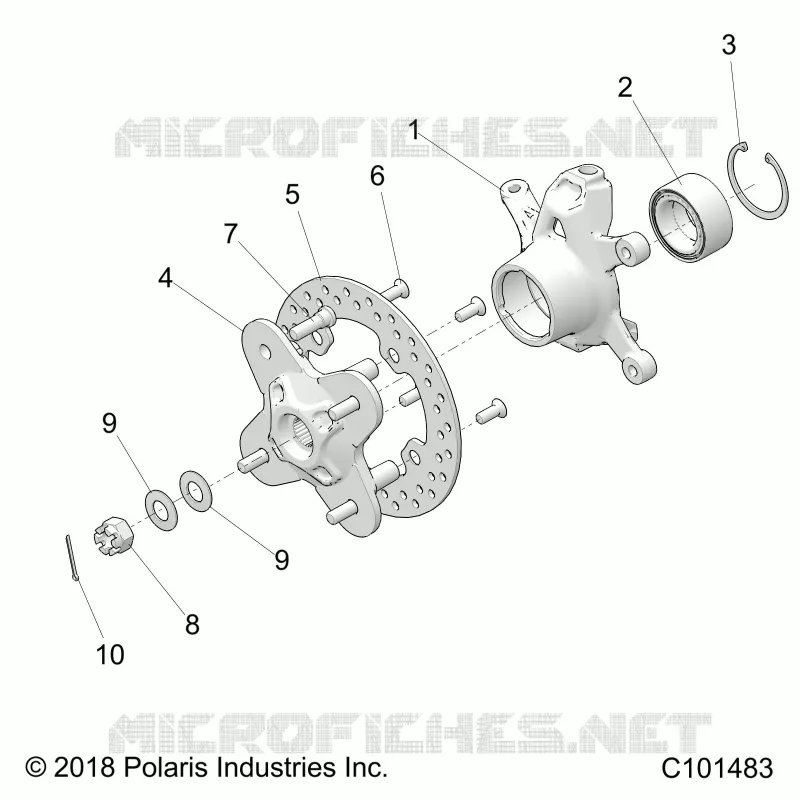

Find the detailed FRONT SUSPENSION HUB AND STEERING KNUCKLE- A20SGE95AK (C101483) POLARIS diagram on this page. This exploded view allows you to identify the various components you need to maintain your machine and quickly find their original POLARIS part number.


The diagrams are not contractually binding. If you have any doubts, our professionals are available to answer your questions. When adding a part to your cart, make sure to order the desired quantity. The unit price shown is the price for each reference at a quantity of 1.
