1
Engine displacement
700
2
Year
1996
3
Trim
INTL SLT 700 - I964166
4
Parts Catalog
DECALS SLT 700 B964166 AND INTL. SLT 700 I964166 (4933923392A007)
5
Parts Diagram
Parts Catalog
HULL BODY SLT 700 B964166 and Intl. SLT 700 I964166 (4933923392A006)
by
DECALS SLT 700 B964166 AND INTL. SLT 700 I964166 (4933923392A007)
1
2
3
4
5
6
7
8
9
10
11
12
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
1
2
3
4
5
6
7
8
9
10
11
12
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
1
DECAL BOW
7074759
9999999
Not Available
2
DECAL LH COMP.DOOR BTM.
7074757
Not Available
3
DECAL LH COMP.DOOR TOP
7074755
9999999
Not Available
4
DECAL;FIRE EXTINGUISHER
7073467
9999999
Not Available
5
DECAL WARN REFUEL
7074740
Not Available
6
LABEL U.S.A.
7073024
9999999
Not Available
7
DECAL LH UPPER DECK
7074760
9999999
Not Available
8
DECAL LH SIDEWALL
7074768
9999999
Not Available
9
DECALLHHANDLE
7074917
9999999
Not Available
10
DECAL SAFETY
7074915
Not Available
11
DECALCAPSIZE CAUTION
7073865
9999999
Not Available
12
DECAL; POLARIS
7074767
9999999
Not Available
13
DECAL LH RUBRAIL (700) [No Longer Available]
7075377
Not Available
14
DECAL LH FR.DECK
7076188
9999999
Not Available
15
DECAL RH HANDLE
7074918
9999999
Not Available
16
DECAL;FUEL SHUTOFF
7074639
9999999
Not Available
17
DECAL;RECOMMENDED OIL
7074959
9999999
Not Available
18
DECAL;REVERSE ARM
7074940
9999999
Not Available
19
DECAL RH UPPER DECK
7074761
9999999
Not Available
20
DECAL RH SIDEWALL
7074769
Not Available
21
DECAL RH COMP.DOOR TOP
7074756
9999999
Not Available
22
DECAL LOW.CONSOLE CHOKE/STRT
7075737
9999999
Not Available
23
DECAL CONSOLE
7074660
9999999
Not Available
24
DECAL PRIMER ENG.FOGGER
7075738
9999999
Not Available
25
DECAL DASH WARNING Substituted by 7078380
7074770
Not Available
26
DECAL RH COMP.DOOR BTM.
7074758
Not Available
27
DECAL #POLARIS#
7074921
Not Available
28
DECAL RH FR.DECK [No Longer Available]
7076189
Not Available
29
DECAL RH RUBRAIL (700)
7075378
9999999
Not Available

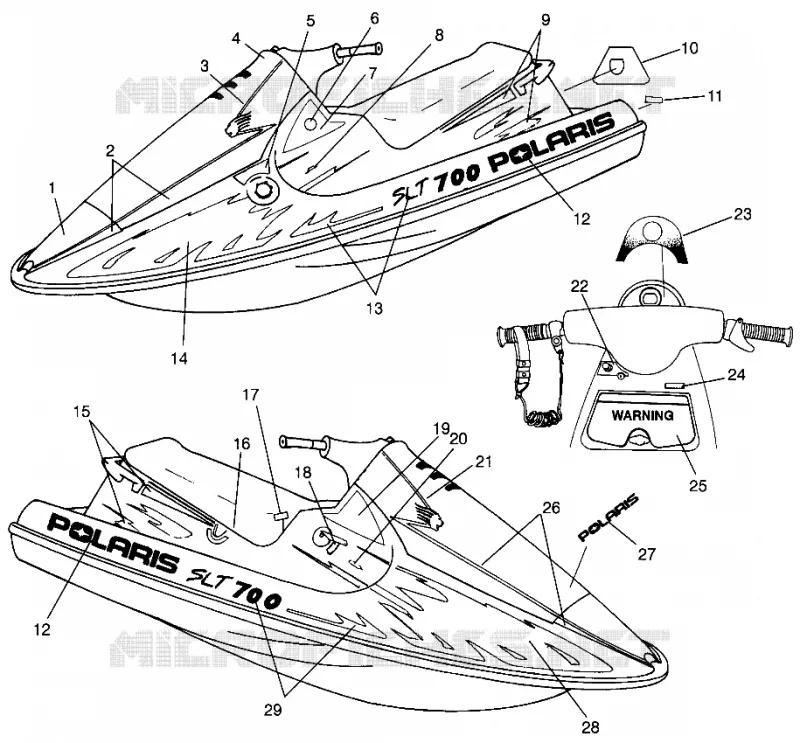

Find the detailed DECALS SLT 700 B964166 AND INTL. SLT 700 I964166 (4933923392A007) POLARIS diagram on this page. This exploded view allows you to identify the various components you need to maintain your machine and quickly find their original POLARIS part number.


The diagrams are not contractually binding. If you have any doubts, our professionals are available to answer your questions. When adding a part to your cart, make sure to order the desired quantity. The unit price shown is the price for each reference at a quantity of 1.
