1
Engine displacement
700
2
Year
1996
3
Trim
INTL SLT 700 - I964166
4
Parts Catalog
STEERING SLT 700 B964166 AND INTL. SLT 700 I964166 (4933923392A013)
5
Parts Diagram
Parts Catalog
FRONT STORAGE COMPARTMENT SLT 700 B964166 AND INTL. SLT 700 I964166 (4933923392A008)
by
OIL TANK SLT 700 B964166 AND INTL. SLT 700 I964166 (4933923392A014)
STEERING SLT 700 B964166 AND INTL. SLT 700 I964166 (4933923392A013)
1
2
3
4
5
6
7
8
9
10
10
11
12
13
14
15
16
17
18
19
20
1
2
3
4
5
6
7
8
9
10
10
11
12
13
14
15
16
17
18
19
20
1
BOOT;(STRG.)
1860116
9999999
Not Available
2
NUT S.S.(10)
7542150
9999999
Not Available
3
BOLT
7515120
9999999
Not Available
4
WASHER; FLAT; S.S.(10)
7555839
9999999
Not Available
5
ROD END
7060170
9999999
Not Available
6
NUT NYLOK S.S.
7542133
9999999
Not Available
7
SEAL WASHER STRG.
1860115
9999999
Not Available
8
NUT
1860114
9999999
Not Available
9
CABLE STRNG (SLT)
7080639
Not Available
10
NUT
7542528
9999999
Not Available
11
WASHER
1860103
9999999
Not Available
12
SEAL ROD STRG.
1860108
9999999
Not Available
13
COVER; STEERING
1860109
9999999
Not Available
14
WASHER; LOCK;S.S.
7571625
9999999
Not Available
15
BRKT STRG.CABLE
5240255
9999999
Not Available
16
RIVET; S.S.
7661842
9999999
Not Available
17
BOOT STRG.CABLE
5410824
9999999
Not Available
18
RING RETAINING
7710431
9999999
Not Available
19
WASHER; FLAT; S.S.
7555837
9999999
Not Available
20
BUSHING STRG.ARM.
5431967
9999999
Not Available

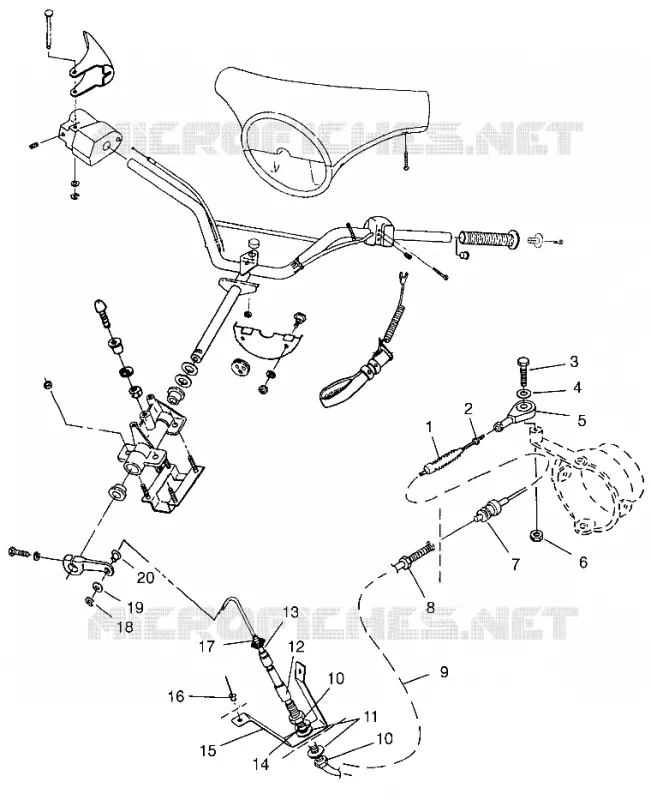

Find the detailed STEERING SLT 700 B964166 AND INTL. SLT 700 I964166 (4933923392A013) POLARIS diagram on this page. This exploded view allows you to identify the various components you need to maintain your machine and quickly find their original POLARIS part number.


The diagrams are not contractually binding. If you have any doubts, our professionals are available to answer your questions. When adding a part to your cart, make sure to order the desired quantity. The unit price shown is the price for each reference at a quantity of 1.
