1
Engine displacement
700
2
Year
1996
3
Trim
INTL SLT 700 - I964166
4
Parts Catalog
ENGINE FOGGING SYSTEM INTL. SLT 700 I964166 (4933923392C009)
5
Parts Diagram
Parts Catalog
BILGE PUMP SLT 700 B964166 AND INTL. SLT 700 I964166 (4933923392C008)
by
FRONT STORAGE COMPARTMENT SLT 700 B964166 AND INTL. SLT 700 I964166 (4933923392A008)
ENGINE FOGGING SYSTEM INTL. SLT 700 I964166 (4933923392C009)
-
-
-
FLUSH KIT(NON-FICHT ENGINES)
2871443
9999999
Not Available
1
CABLE TIE
7080138
$5,24 Unit Price incl. VAT
2
PRIMER ENG. FOG
3160114
9999999
Not Available
3
DECAL; FOG.OIL ONLY
7075732
9999999
Not Available
4
TANK OIL FOG KIT
5432362
9999999
Not Available
5
GASKET
5810279
$4,19 Unit Price incl. VAT
6
CAP OIL BOTTLE
5432359
9999999
Not Available
7
CHECKVALVE VENT
7052047
9999999
Not Available
8
FITTING
7052077
9999999
Not Available
9
SHOCK FTA [SEE PAGE- SUSPENSION SHOCK FRONT TRACK]
*******
Not Available
10
BRKT; OILTANK
5241622
9999999
Not Available
11
BOLT SS.
7512045
9999999
Not Available
12
WASHER; FLAT; S.S.
7555837
9999999
Not Available
13
NUT HEX S.S.
7541931
$9,44 Unit Price incl. VAT
14
FITTING; 90 DEG.
7052138
9999999
Not Available
15
CLAMP; HOSE(10)
7080484
9999999
Not Available
16
OILLINE (OD=5/16 ID=1/8)
8450062
9999999
Not Available
17
CLAMP HOSE S.S.
7080476
$11,54 Unit Price incl. VAT
18
FITTING T
7052139
9999999
Not Available

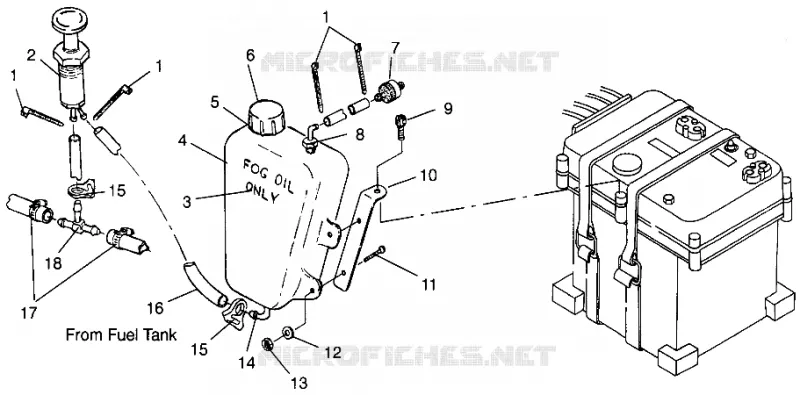

Find the detailed ENGINE FOGGING SYSTEM INTL. SLT 700 I964166 (4933923392C009) POLARIS diagram on this page. This exploded view allows you to identify the various components you need to maintain your machine and quickly find their original POLARIS part number.


The diagrams are not contractually binding. If you have any doubts, our professionals are available to answer your questions. When adding a part to your cart, make sure to order the desired quantity. The unit price shown is the price for each reference at a quantity of 1.
