1
Engine displacement
700
2
Year
1996
3
Trim
INTL SLT 700 - I964166
4
Parts Catalog
FUEL SYSTEM SLT 700 B964166 AND INTL. SLT 700 I964166 (4933923392A010)
5
Parts Diagram
Parts Catalog
FUEL TANK W/COMBINATION FUEL PICK-UP AND SENDER SLT 700 B964166 AND INTL. (4933923392A009)
by
SEAT SLT 700 B964166 AND INTL. SLT 700 I964166 (4933923392A011)
FUEL SYSTEM SLT 700 B964166 AND INTL. SLT 700 I964166 (4933923392A010)
1
SCREW S.S.(10)
7516302
9999999
Not Available
2
WASHER; FLAT; S.S.
7555840
9999999
Not Available
3
KNOB; FUEL VALVE
5431360
9999999
Not Available
4
NUT; FUEL VALVE
5431451
9999999
Not Available
5
VALVE CHECK
7052063
9999999
Not Available
6
CLAMP HOSE S.S.
7080476
$11,54 Unit Price incl. VAT
7
DESC NOT_AVAILABLE
845006515
Not Available
8
DESC NOT_AVAILABLE
845004676
Not Available
9
SHOCK FTA [SEE PAGE- SUSPENSION SHOCK FRONT TRACK]
*******
Not Available
10
DESC NOT_AVAILABLE
845006685
Not Available
11
FUEL FILTER
2530008
9999999
Not Available
12
SHOCK FTA [SEE PAGE- SUSPENSION SHOCK FRONT TRACK]
*******
Not Available
13
DESC NOT_AVAILABLE
845006366
Not Available
14
DESC NOT_AVAILABLE
8450064111
Not Available
15
FITTING TEE
7052111
9999999
Not Available
16
GROMMET VENT
5410682
9999999
Not Available
17
CABLE TIE
7080138
$5,24 Unit Price incl. VAT
18
VALVE CHECK RELIEF
7051015
9999999
Not Available
19
VALVEVACUUM CHECK
7052118
9999999
Not Available
20
T-CLIP
7080482
9999999
Not Available
21
DESC NOT_AVAILABLE
845006786
Not Available

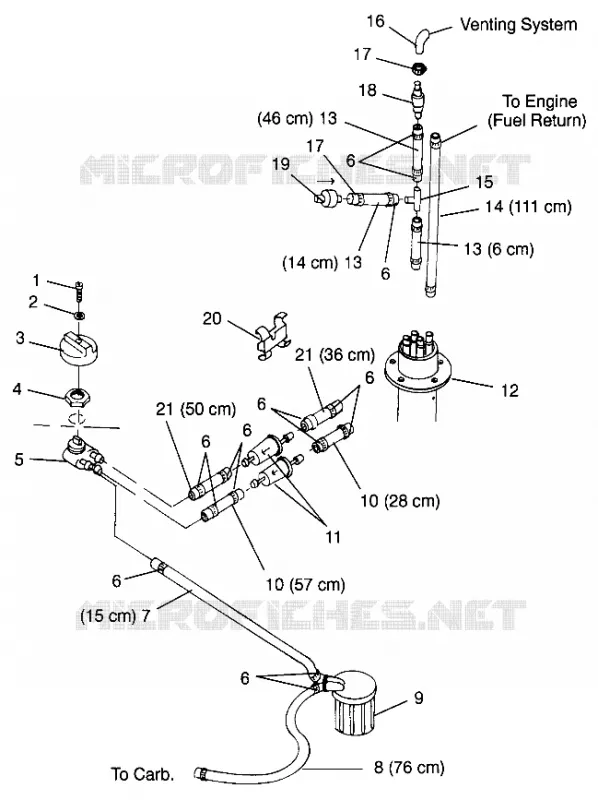

Find the detailed FUEL SYSTEM SLT 700 B964166 AND INTL. SLT 700 I964166 (4933923392A010) POLARIS diagram on this page. This exploded view allows you to identify the various components you need to maintain your machine and quickly find their original POLARIS part number.


The diagrams are not contractually binding. If you have any doubts, our professionals are available to answer your questions. When adding a part to your cart, make sure to order the desired quantity. The unit price shown is the price for each reference at a quantity of 1.
