1
Engine displacement
700
2
Year
1996
3
Trim
INTL SLT 700 - I964166
4
Parts Catalog
BILGE PUMP SLT 700 B964166 AND INTL. SLT 700 I964166 (4933923392C008)
5
Parts Diagram
Parts Catalog
DRAIN SLT 700 B964166 AND INTL. SLT 700 I964166 (4933923392C007)
by
ENGINE FOGGING SYSTEM INTL. SLT 700 I964166 (4933923392C009)
BILGE PUMP SLT 700 B964166 AND INTL. SLT 700 I964166 (4933923392C008)
1
FITTINGTHRU HULLWATER
5431444
9999999
Not Available
2
GASKET
5811317
9999999
Not Available
3
CLAMP; S.S.(10)
7080470
9999999
Not Available
4
DESC NOT_AVAILABLE
845005511
Not Available
5
ELBOW
7052141
Not Available
6
DESC NOT_AVAILABLE
845005539
Not Available
7
DESC NOT_AVAILABLE
845005508
Not Available
8
PUMP BILGE Substituted by 2871237
2410035
Not Available
9
SCREW
7512052
9999999
Not Available
10
WASHER; FLAT; S.S.
7555837
9999999
Not Available

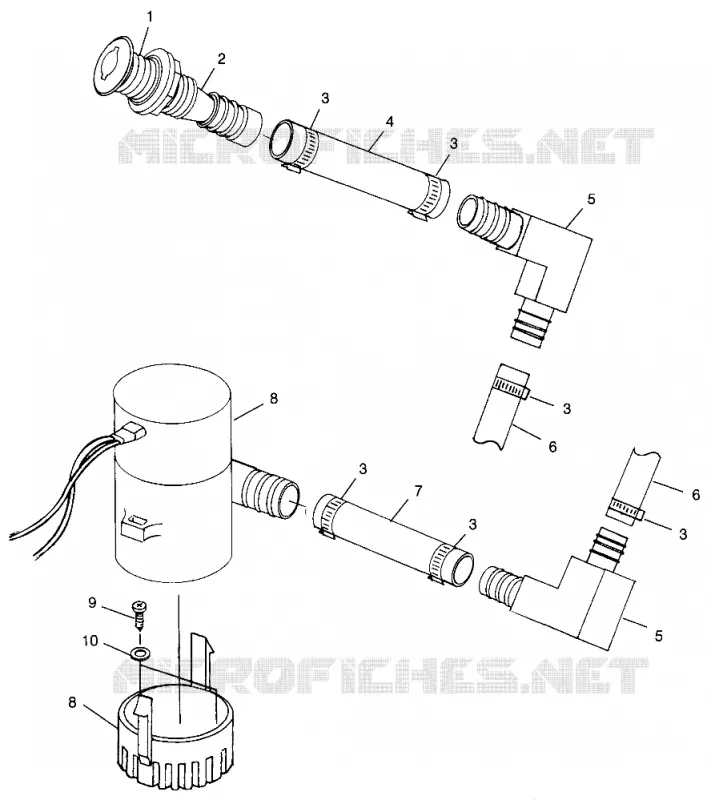

Find the detailed BILGE PUMP SLT 700 B964166 AND INTL. SLT 700 I964166 (4933923392C008) POLARIS diagram on this page. This exploded view allows you to identify the various components you need to maintain your machine and quickly find their original POLARIS part number.


The diagrams are not contractually binding. If you have any doubts, our professionals are available to answer your questions. When adding a part to your cart, make sure to order the desired quantity. The unit price shown is the price for each reference at a quantity of 1.
