1
Engine displacement
700
2
Year
1996
3
Trim
INTL SLT 700 - I964166
4
Parts Catalog
CRANKSHAFT PISTON SLT 700 B964166 AND INTL. SLT 700 I964166 (4933923392C001)
5
Parts Diagram
Parts Catalog
REVERSE SLT 700 B964166 AND INTL. SLT 700 I964166 (4933923392B011)
by
CARBURETOR SLT 700 B964166 AND INTL. SLT 700 I964166 (4933923392C002)
CRANKSHAFT PISTON SLT 700 B964166 AND INTL. SLT 700 I964166 (4933923392C001)
1
1
1
2
2
3
3
3
3
3
3
3
3
3
3
3
3
3
3
3
3
3
3
4
4
4
4
4
4
4
4
4
4
4
4
4
4
4
4
4
4
24
24
24
24
24
24
24
24
8
8
9
9
10
10
11
12
13
14
15
15
16
16
17
18
19
20
21
22
23
24
24
1
1
1
2
2
3
3
3
3
3
3
3
3
3
3
3
3
3
3
3
3
3
3
4
4
4
4
4
4
4
4
4
4
4
4
4
4
4
4
4
4
24
24
24
24
24
24
24
24
8
8
9
9
10
10
11
12
13
14
15
15
16
16
17
18
19
20
21
22
23
24
24
1
PISTON CIRCLIP 20 MM
3022950
9999999
Not Available
2
PIN PISTON
3022953
9999999
Not Available
3
KIT;PISTONRINGS(.50 O/S)81MM.
2200678
9999999
Not Available
3
KIT PISTONRINGS(.25 O/S)81MM.
2200679
9999999
Not Available
3
KIT PISTONRINGS STD 81MM.
2200671
9999999
Not Available
4
KIT PISTON ASM STD PWC
2200883
9999999
Not Available
4
KIT;PISTON ASM;.25 O/S;PWC
2200884
2201627
Not Available
4
KIT PISTON ASM .50 O/S PWC
2200885
9999999
Not Available
5
SHOCK FTA [SEE PAGE- SUSPENSION SHOCK FRONT TRACK]
*******
Not Available
6
SHOCK FTA [SEE PAGE- SUSPENSION SHOCK FRONT TRACK]
*******
Not Available
7
SHOCK FTA [SEE PAGE- SUSPENSION SHOCK FRONT TRACK]
*******
Not Available
8
KIT CONN.ROD ASM.(PWC)
2200674
9999999
Not Available
9
BEARING; 15 NEEDLE
3584001
9999999
Not Available
10
BEARING DEEP GROOVE
3585501
3585503
$54,59 Unit Price incl. VAT
11
COLLAR CRANKSHAFT
5131195
9999999
Not Available
12
O-RING
5410613
$3,66 Unit Price incl. VAT
13
RING RETAINING
7710435
9999999
Not Available
14
SEAL
5410913
9999999
Not Available
15
RING RETAINING
7710441
9999999
Not Available
16
BUSHING
7555905
9999999
Not Available
17
CRANKWEB PTO
5131083
9999999
Not Available
18
CRANKWEB CTR
5131084
9999999
Not Available
19
LABYRINTH
5131086
9999999
Not Available
20
CRANKWEB MAG.
5131085
9999999
Not Available
21
CRANKSHAFT ASM2 CYL.
1201558
9999999
Not Available
22
WOODRUFF KEY
7721117
$47,24 Unit Price incl. VAT
23
SEAL
3610044
9999999
Not Available
24
SHOCK FTA [SEE PAGE- SUSPENSION SHOCK FRONT TRACK]
*******
Not Available
25
SHOCK FTA [SEE PAGE- SUSPENSION SHOCK FRONT TRACK]
*******
Not Available

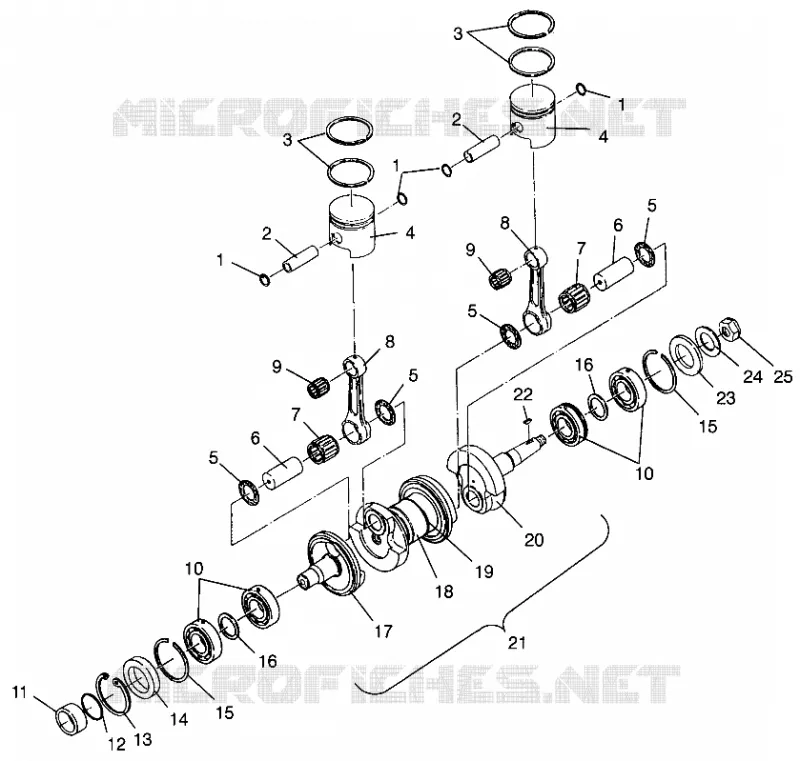

Find the detailed CRANKSHAFT PISTON SLT 700 B964166 AND INTL. SLT 700 I964166 (4933923392C001) POLARIS diagram on this page. This exploded view allows you to identify the various components you need to maintain your machine and quickly find their original POLARIS part number.


The diagrams are not contractually binding. If you have any doubts, our professionals are available to answer your questions. When adding a part to your cart, make sure to order the desired quantity. The unit price shown is the price for each reference at a quantity of 1.
