REAR BRAKE CALIPER
5
Parts Diagram
Parts Catalog
DASHBOARD
by
CHASSIS, FRAME
REAR BRAKE CALIPER
1
1
2
3
4
5
6
7
8
9
10
1
1
2
3
4
5
6
7
8
9
10
1
REAR RIGHT HAND BRAKE CALIPER ASSEMBLY
1912375
$524,99 Unit Price incl. VAT
1
RR LFT HAND DUAL BORE BRAKE CALIPER ASM
1912374
$524,99 Unit Price incl. VAT
2
DUAL BORE 1.375" BRAKE PAD KIT ASM
2203747
2205949
$60,68 Unit Price incl. VAT
3
BRAKE CALIPER MOUNT ASSEMBLY; REAR
1911762
$141,74 Unit Price incl. VAT
4
PISTON BRAKE; 1.188 IN
5138832
$52,49 Unit Price incl. VAT
5
SQUARE MOLDED RING; .094
5410779
$19,94 Unit Price incl. VAT
6
SQUARE MOLDED RING; .103 X .134
5410780
$19,94 Unit Price incl. VAT
7
PIN BUSHING BOOT
5412505
$6,29 Unit Price incl. VAT
8
PIN SEAL BOOT
5412506
$6,29 Unit Price incl. VAT
9
SCR-M7X1.0 BLEEDER OLIVE D
7081343
$10,49 Unit Price incl. VAT
10
SCR-M10X1.0X8 SOC SET-OD
7518863
$17,84 Unit Price incl. VAT

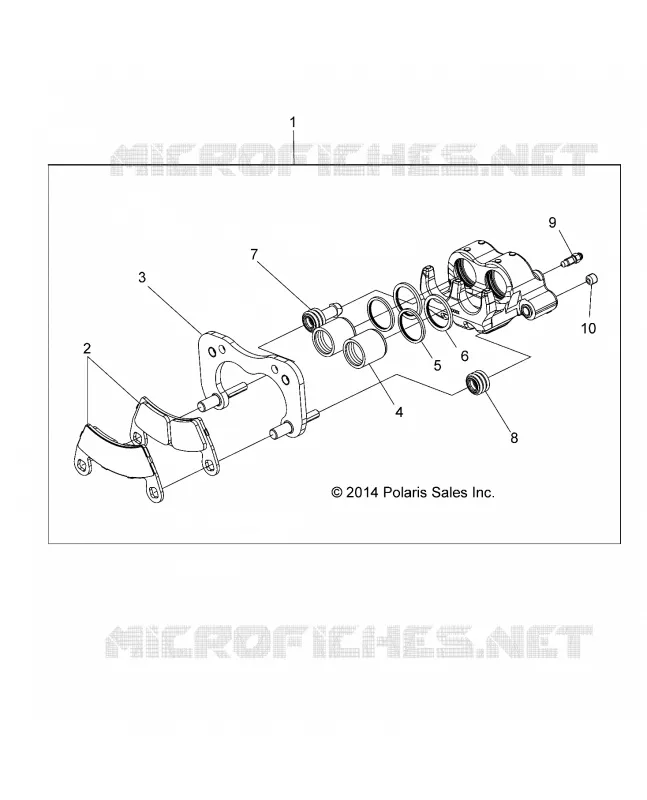

Find the detailed REAR BRAKE CALIPER POLARIS diagram on this page. This exploded view allows you to identify the various components you need to maintain your machine and quickly find their original POLARIS part number.


The diagrams are not contractually binding. If you have any doubts, our professionals are available to answer your questions. When adding a part to your cart, make sure to order the desired quantity. The unit price shown is the price for each reference at a quantity of 1.
