1
Engine displacement
570
2
Year
2016
3
Trim
RANGER XP 570 FULL SIZE CREW
4
Parts Catalog
ENGINE, CRANKSHAFT, PISTON AND BALANCE SHAFT
5
Parts Diagram
Parts Catalog
CRANKCASE
by
CYLINDER

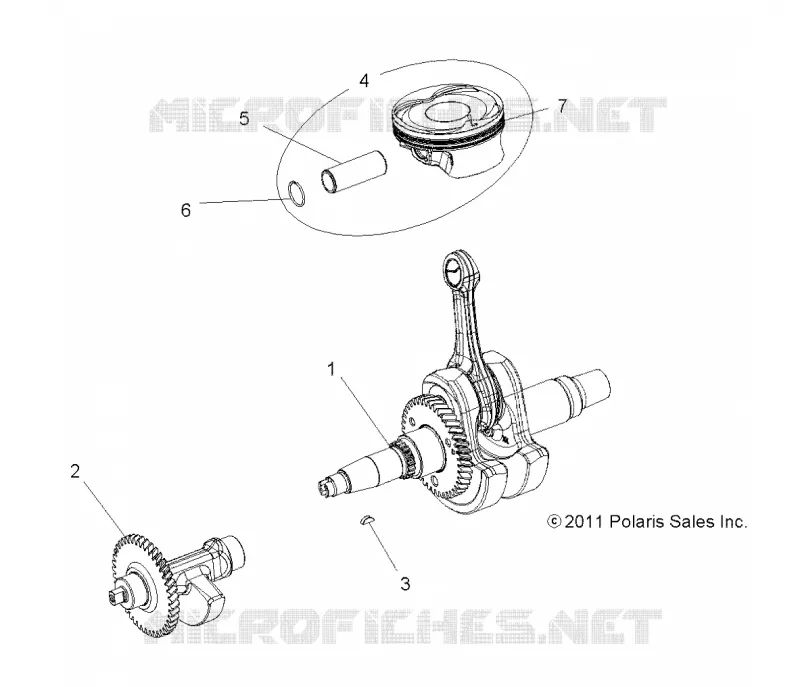

ENGINE, CRANKSHAFT, PISTON AND BALANCE SHAFT
1
2
3
4
4
4
5
6
7
7
7
1
1
ASM-CRANKSHAFT MACH 73.6MM
1205024
2204729
$1 658,99 Unit Price incl. VAT
2
BALANCE SHAFT ASSEMBLY
1204515
$262,49 Unit Price incl. VAT
3
WOODRUFF KEY
7721122
$13,64 Unit Price incl. VAT
4
KIT-ASMPISTON99MM+0.50MM
2204730
9999999
Not Available
4
KIT-ASMPISTON99MM+0.25MM
2204734
9999999
Not Available
4
ASM-PISTON 99MM
3022477
2204960
$256,19 Unit Price incl. VAT
5
PISTON PIN; 22 MM X 12.8 MM X 56.6 MM
3022291
$83,99 Unit Price incl. VAT
6
C-CLIP; ROUNG(2)
7710479
$13,64 Unit Price incl. VAT
7
STD RING KIT
2204733
$108,14 Unit Price incl. VAT
7
KIT-RING +0.50MM
2204731
9999999
Not Available
7
KIT-RING+0.25MM
2204735
9999999
Not Available

Find the detailed ENGINE, CRANKSHAFT, PISTON AND BALANCE SHAFT POLARIS diagram on this page. This exploded view allows you to identify the various components you need to maintain your machine and quickly find their original POLARIS part number.


The diagrams are not contractually binding. If you have any doubts, our professionals are available to answer your questions. When adding a part to your cart, make sure to order the desired quantity. The unit price shown is the price for each reference at a quantity of 1.
