1
Engine displacement
570
2
Year
2016
3
Trim
RANGER XP 570 FULL SIZE CREW
4
Parts Catalog
CHASSIS, FRAME
5
Parts Diagram
Parts Catalog
REAR BRAKE CALIPER
by
DRIVE TRAIN, GEAR SELECTOR
CHASSIS, FRAME
1
2
3
4
5
6
6
6
6
7
8
9
10
11
12
13
14
15
16
17
17
18
19
20
21
22
23
24
25
26
27
28
1
2
3
4
5
6
1
MAIN FRAME WELD; FRONT; MATTE BLACK
1020582458
Not Available
2
BOLT-M10X1.25X70 HXFLG-OLIVE D
7518561
$13,64 Unit Price incl. VAT
3
NYLOC NUT
7547333
$3,14 Unit Price incl. VAT
4
REAR SKID PLATE; GLOSS BLACK
5450336070
Not Available
5
FRONT SKID PLATE; GLOSS BLACK
5450337070
Not Available
6
BOLT M6 X 1.0 X 20
7518529
$2,09 Unit Price incl. VAT
7
SKID PLATE WASHER
7556065
$8,39 Unit Price incl. VAT
8
BRKT-ROUTING TRAY;BLK
5257333329
Not Available
9
BRKT-ROUTING TRAY CTR;BLK
5257387329
Not Available
10
TRAY-ROUTING BLK
5450841070
Not Available
11
TRAY-ROUTING REAR BLK
5450845070
Not Available
12
TUFLOK RIVET
7661855
$2,09 Unit Price incl. VAT
13
CAB AND SEAT BASE WELD; BLACK
1019513329
Not Available
14
HEX FLANGE BOLT; 8 MM X 1.25 MM X 20 MM
7518555
$4,19 Unit Price incl. VAT
15
HEX FLANGE SCREW; 8 MM X 1.25 MM X 25 MM
7519156
$3,14 Unit Price incl. VAT
16
CAB SUPPORT WELD; REAR; BLACK
1020588329
Not Available
17
HEX FLANGE SCREW 10 MM X 1.25 MM X 30 MM
7519059
$5,76 Unit Price incl. VAT
18
WASHER
7556153
$3,66 Unit Price incl. VAT
19
WELD-CAB SUPPORT;DSL;BLK
1020586329
Not Available
20
FLOOR SUPPORT WELD; LEFT; MATTE BLCAK
1020577458
Not Available
21
SUPPORT FLOOR WELD; RIGHT; MATTE BLACK
1020578458
Not Available
22
HEX FLANGE SCREW 10 MM X 1.25 MM X 80 MM
7519363
7528444
$4,19 Unit Price incl. VAT
23
BRKT-PLATE CTR PIN MT TTN
5260353
9999999
Not Available
24
WINDSHIELD MOUNT PLATE LOWER GLOSS BLACK
5450344070
Not Available
25
U-CLIP SPEED NUT
7081305
$3,66 Unit Price incl. VAT
26
ROCKER WELD; LEFT
1019498329
Not Available
27
ROCKER WELD; RIGHT
1019500329
Not Available
28
MAIN FRAME WELD REAR MATTE BLACK
1020584458
Not Available

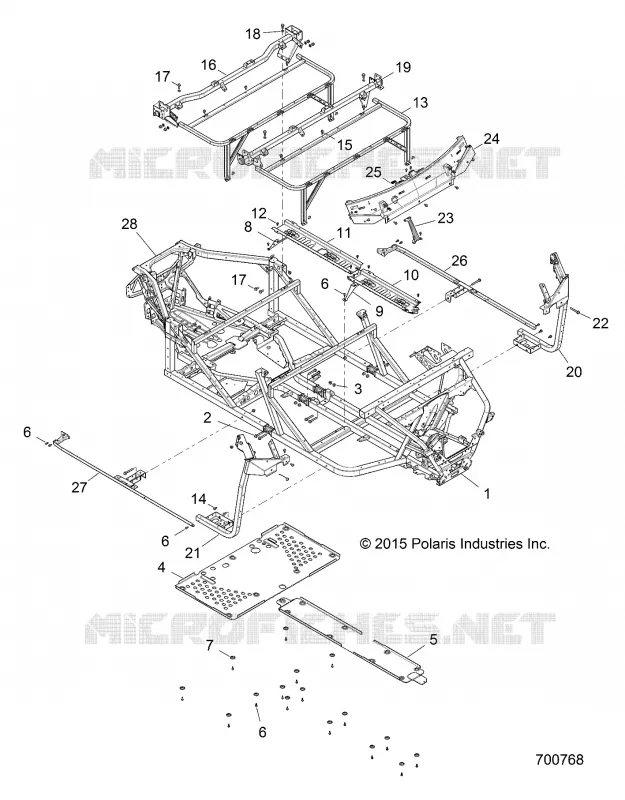

Find the detailed CHASSIS, FRAME POLARIS diagram on this page. This exploded view allows you to identify the various components you need to maintain your machine and quickly find their original POLARIS part number.


The diagrams are not contractually binding. If you have any doubts, our professionals are available to answer your questions. When adding a part to your cart, make sure to order the desired quantity. The unit price shown is the price for each reference at a quantity of 1.
