Engine displacement
570
2
Year
2016
3
Trim
RANGER XP 570 FULL SIZE CREW
4
Parts Catalog
REAR SUSPENSION SHOCK
5
Parts Diagram
Parts Catalog
REFERENCES, TOOL KIT AND OWNERS MANUALS
by
TAILGATE
REAR SUSPENSION SHOCK
1
2
3
4
4
5
5
6
6
1
RETAINER SPRING; STEEL
5251753
$19,94 Unit Price incl. VAT
2
CAM ADJUSTING SPRING STEEL
5253768
$68,24 Unit Price incl. VAT
3
REAR SHOCK
7043753
$230,99 Unit Price incl. VAT
4
SPRING; 305#; MATTE BLACK
7044019458
Not Available
4
SPR-200-280# 12.4FL 2ID;M.BLK
7044138458
Not Available
5
FLANGE SCREW
7519306
$10,49 Unit Price incl. VAT
6
NYLOC NUT
7547333
$3,14 Unit Price incl. VAT

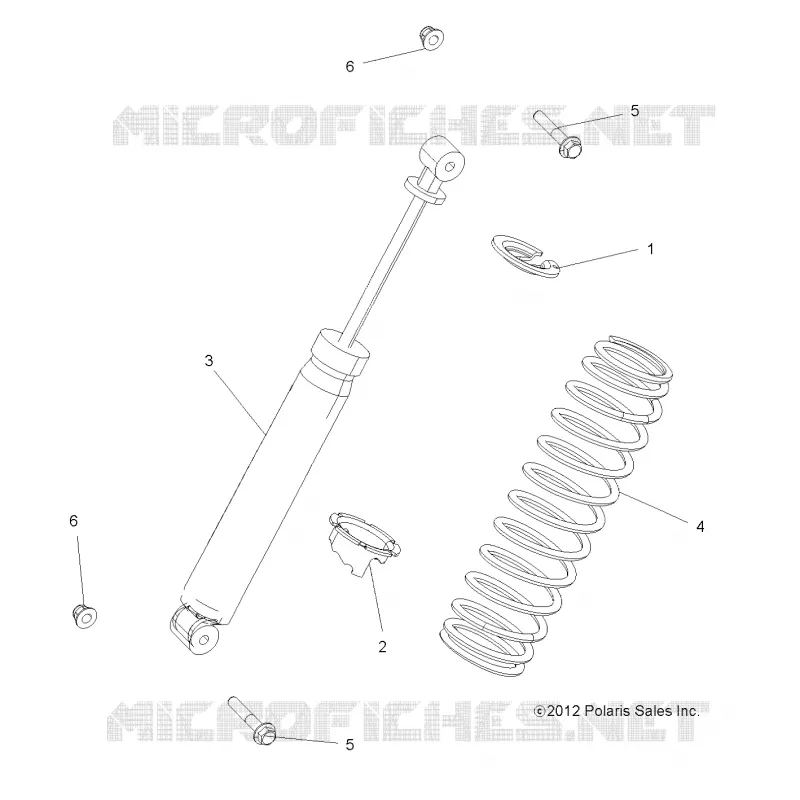

Find the detailed REAR SUSPENSION SHOCK POLARIS diagram on this page. This exploded view allows you to identify the various components you need to maintain your machine and quickly find their original POLARIS part number.
