1
Engine displacement
570
2
Year
2016
3
Trim
RANGER XP 570 FULL SIZE CREW
4
Parts Catalog
SIDE NETS
5
Parts Diagram
Parts Catalog
HOOD FRONT FACSIA
by
STORAGE
SIDE NETS
1
2
3
4
5
6
7
1
2
3
4
5
5
6
7
1
BUCKLE; 40 MM
5452506
$52,49 Unit Price incl. VAT
2
DOOR NET; FRONT;
2686765
$467,24 Unit Price incl. VAT
3
DOOR NETS; REAR; FULL;
2686766
$519,74 Unit Price incl. VAT
4
BOLT M6 X 1.0 X 20
7518529
$2,09 Unit Price incl. VAT
5
SCR-M8X1.25X30 8.8 TR/TX ZOD
7518953
$3,14 Unit Price incl. VAT
6
NYLOC OLIVE NUT; 8 MM X 1.25 MM
7547332
$7,34 Unit Price incl. VAT
7
MALE BUCKET; 40 MM
5452505
$52,49 Unit Price incl. VAT

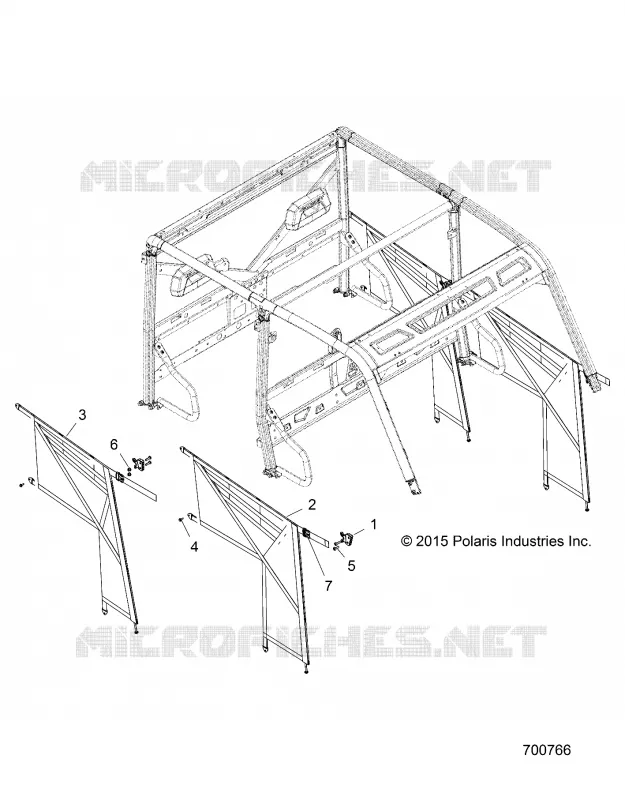

Find the detailed SIDE NETS POLARIS diagram on this page. This exploded view allows you to identify the various components you need to maintain your machine and quickly find their original POLARIS part number.


The diagrams are not contractually binding. If you have any doubts, our professionals are available to answer your questions. When adding a part to your cart, make sure to order the desired quantity. The unit price shown is the price for each reference at a quantity of 1.
