Engine displacement
570
2
Year
2016
3
Trim
RANGER XP 570 FULL SIZE CREW
4
Parts Catalog
COOLING SYSTEM
5
Parts Diagram
Parts Catalog
CAM CHAIN AND SPROCKET
by
CRANKCASE
COOLING SYSTEM
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
17
17
17
17
17
18
19
20
21
21
22
23
24
25
26
27
28
29
1
2
3
3
4
5
5
5
6
7
7
8
8
9
10
11
11
12
12
12
13
13
13
14
15
15
15
16
16
17
18
19
1
SCREW M6 X 1.0; L-20MM
7516822
$4,19 Unit Price incl. VAT
2
RADIATOR ASSEMBLY
1240955
$850,49 Unit Price incl. VAT
3
PRESSURE CAP
1240899
$73,49 Unit Price incl. VAT
4
SHROUD FAN ASSEMBLY
2413196
$493,49 Unit Price incl. VAT
5
RADIATOR MOUNT BRACKET; LEFT; BLACK
5256596329
Not Available
6
RADIATOR MOUNT BRACKET; RIGHT; BLACK
5256597329
Not Available
7
GROMMET
7052028
$11,54 Unit Price incl. VAT
8
BOLT M6 X 1.0 X 20
7518529
$2,09 Unit Price incl. VAT
9
COOLANT TUBE; 1 IN
5138504
9999999
Not Available
10
RADIUS HOSE; UPPER
5415596
9999999
Not Available
11
LOWER HOSE; RAD
5415595
9999999
Not Available
12
HOSE-ENG IN
5415170
$73,49 Unit Price incl. VAT
13
ENGINE HOSE; OUT
5415171
9999999
Not Available
14
INLET AND BYPASS ENGINE HOSE
5415185
9999999
Not Available
15
HOSE-BYPASS
5415186
9999999
Not Available
16
TEE CONNECTOR; 1 X 1 X 0.5
7052530
$10,49 Unit Price incl. VAT
17
SPRINGBAND CLAMP; 35/12
7080844
$19,94 Unit Price incl. VAT
18
ROUTING CLIP
7081496
$9,44 Unit Price incl. VAT
19
CLAMP-HOSE SPRING 20MM
7081719
$10,49 Unit Price incl. VAT
20
HOSE CLAMP
7080474
$13,64 Unit Price incl. VAT
21
HOSE CLAMP; 25-40 MM
7081192
$14,69 Unit Price incl. VAT
22
CLIP
7670102
$4,19 Unit Price incl. VAT
23
OVERFLOW CAP
5430743
$10,49 Unit Price incl. VAT
24
CAP PLUG9X(GRN) FLEX TEMP(10)
5433774
$10,49 Unit Price incl. VAT
25
SURGE TANK
5439202
$178,49 Unit Price incl. VAT
26
GASKET
5810279
$4,19 Unit Price incl. VAT
27
FUEL LINE; 95 CM
845000395
Not Available
28
SCREW #14 X 1 HI/LO
7518158
$9,44 Unit Price incl. VAT
29
VALVE-PLASTIC RAD/COOLER DRAIN
7052617
$52,49 Unit Price incl. VAT

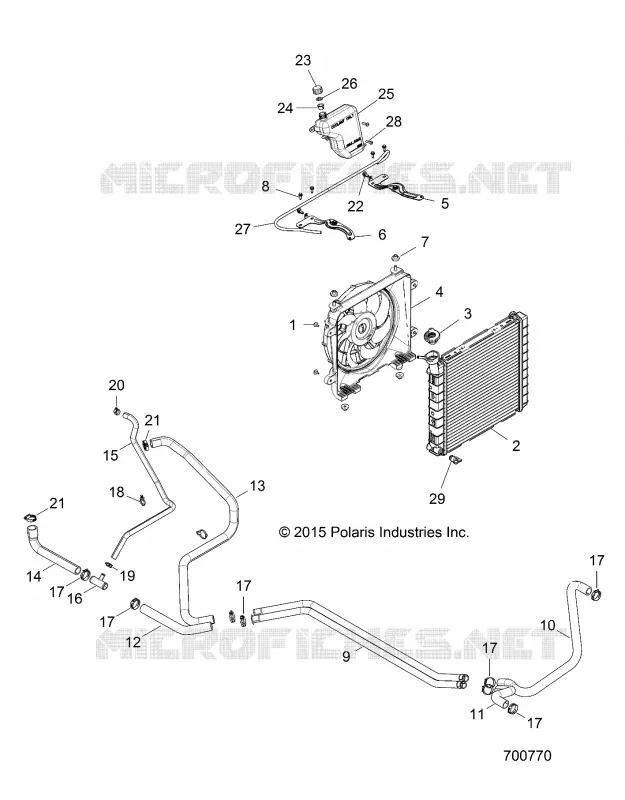

Find the detailed COOLING SYSTEM POLARIS diagram on this page. This exploded view allows you to identify the various components you need to maintain your machine and quickly find their original POLARIS part number.
