Engine displacement
570
2
Year
2017
3
Trim
ACE 570 EFI EU
4
Parts Catalog
REAR BODYWORK RACK AND FENDERS
5
Parts Diagram
Parts Catalog
SPLASH SHIELDS
by
SEAT ASM.
REAR BODYWORK RACK AND FENDERS
8
9
10
11
12
13
13
13
13
14
15
16
17
8
9
10
10
11
11
12
1
REAR CARGO BOX; GLOSS BLACK
5450078070
Not Available
2
FENDER-REAR LH VELOCITY BLUE
5450076689
Not Available
3
FENDER-REAR RH VELOCITY BLUE
5450077689
Not Available
4
PANEL-CLOSE OFF;BLK
5454054070
Not Available
5
BOX-MAINT PANEL;REMOVABLE;BLK
5450080070
Not Available
6
UNDERSEAT COVER PANEL; LEFT; GLOSS BLACK
5450299070
Not Available
7
RIVET-PLASTIC R-LOCK .197 DIA
7081040
$2,09 Unit Price incl. VAT
7
PANEL-UNDERSEAT CVR;RTR;RH;BLK
5454090070
Not Available
8
GRILL INTAKE; COVER; LEFT; GLOSS BLACK
5450392070
Not Available
9
INTAKE GRILL COVER; RIGHT; GLOSS BLACK
5450393070
Not Available
10
LATCH GROMMET
5413428
$6,29 Unit Price incl. VAT
11
TURN LATCH; 1/4
7081730
$10,49 Unit Price incl. VAT
12
WASHER
7555919
$7,34 Unit Price incl. VAT
13
BOLT
7519650
$7,34 Unit Price incl. VAT
14
U-TYPE NUT; M6-1.0
7547674
$2,09 Unit Price incl. VAT
15
GROMMET
5412507
$12,59 Unit Price incl. VAT
16
CLOSEOFF PANEL SHIELD
5814322
$83,99 Unit Price incl. VAT
17
TUFLOK RIVET
7661855
$2,09 Unit Price incl. VAT

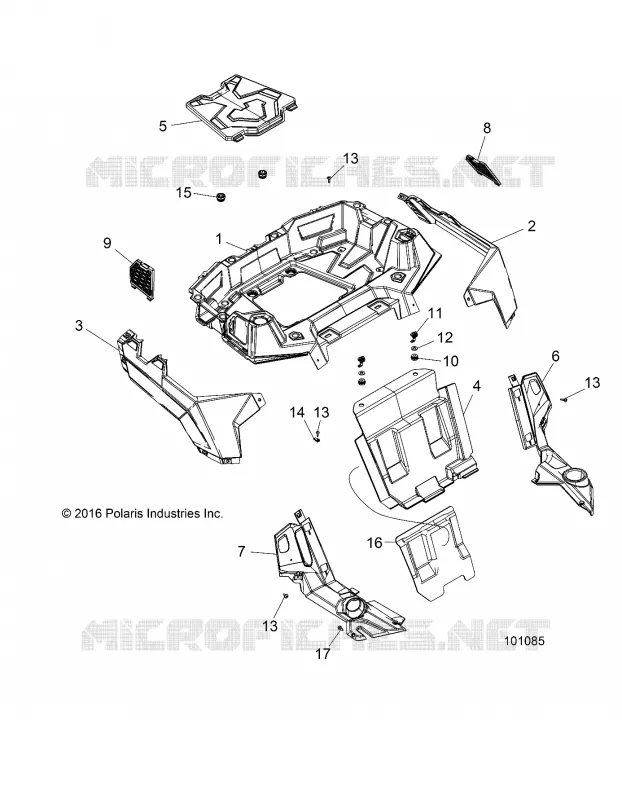

Find the detailed REAR BODYWORK RACK AND FENDERS POLARIS diagram on this page. This exploded view allows you to identify the various components you need to maintain your machine and quickly find their original POLARIS part number.
