Engine displacement
570
2
Year
2017
3
Trim
ACE 570 EFI EU
4
Parts Catalog
ENGINE, EXHAUST SYSTEM
5
Parts Diagram
Parts Catalog
ENGINE, ENGINE AND TRANSMISSION MOUNTING
by
ENGINE, EXHAUST SYSTEM SHIELDS
ENGINE, EXHAUST SYSTEM
4
5
6
7
8
9
9
10
11
12
13
14
15
16
17
18
1
EXHAUST PIPE ASSEMBLY
1262488
9999999
Not Available
2
EXHST SILENCER WELD HGH TMP PWDR PNT BLK
1262487489
Not Available
3
BOLT
7512666
$4,19 Unit Price incl. VAT
4
CLEAN OUT WASHER; .51 X .75 X .09
7556230
$2,09 Unit Price incl. VAT
5
ISOLATOR MOUNT
5438965
$52,49 Unit Price incl. VAT
6
EXHAUST SOCKET SEAL
3610181
$57,74 Unit Price incl. VAT
7
EXHAUST SEALING GASKET
5253989
$52,49 Unit Price incl. VAT
8
NYLOK NUT
7542324
$1,56 Unit Price incl. VAT
9
SPRING
7041789
$16,79 Unit Price incl. VAT
10
M8X60 HEX FLANGE BOLT
7520828
$13,64 Unit Price incl. VAT
11
WASHER
7555716
$3,14 Unit Price incl. VAT
12
BOLT M6 X 1.0 X 20
7518529
$2,09 Unit Price incl. VAT
13
SILENCER MOUNT GROMMET
5413383
$9,44 Unit Price incl. VAT
14
BOLT
7515316
$4,19 Unit Price incl. VAT
15
VIBRATION DAMPER
5414946
$9,44 Unit Price incl. VAT
16
BUSHING
5010192
$12,59 Unit Price incl. VAT
17
MOUNT-EXHAUST LOWER
5258177
9999999
Not Available
18
WASHER 15.4 X 38.1 X 7.9 RUB
5414945
$9,44 Unit Price incl. VAT

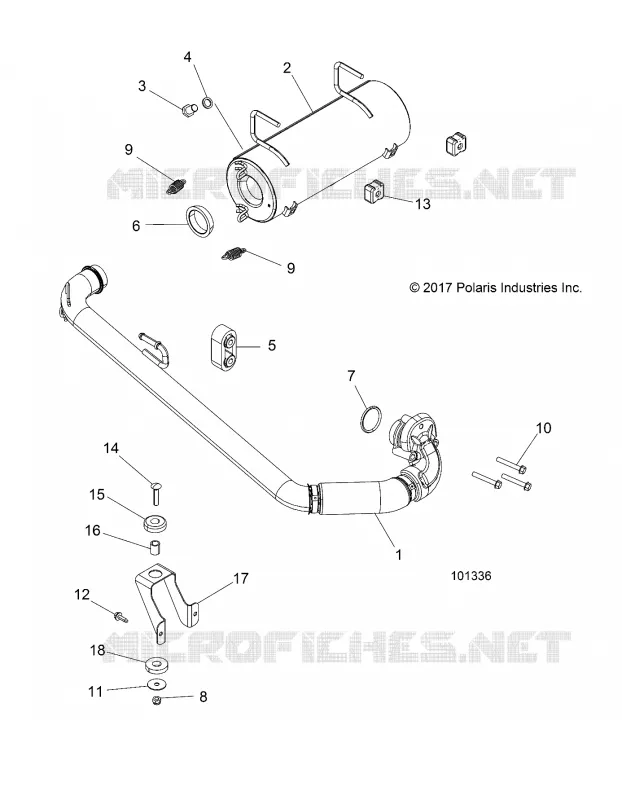

Find the detailed ENGINE, EXHAUST SYSTEM POLARIS diagram on this page. This exploded view allows you to identify the various components you need to maintain your machine and quickly find their original POLARIS part number.


The diagrams are not contractually binding. If you have any doubts, our professionals are available to answer your questions. When adding a part to your cart, make sure to order the desired quantity. The unit price shown is the price for each reference at a quantity of 1.
