1
Engine displacement
570
2
Year
2017
3
Trim
ACE 570 EFI EU
4
Parts Catalog
REAR SUSPENSION CONTROL ARMS
5
Parts Diagram
Parts Catalog
SUSPENSION, FRONT STRUT
by
SUSPENSION, REAR SHOCK MOUNTING
REAR SUSPENSION CONTROL ARMS
8
9
9
9
9
10
10
10
10
11
11
11
11
12
12
12
12
13
13
14
14
15
15
15
15
1
CONTROL ARM WELD REAR UPPER LEFT MT BLK
1018121458
Not Available
2
CONTROL ARM WELD REAR UPPER RIGHT MT BLK
1018123458
Not Available
3
PIVOT SHAFT
5138794
$10,49 Unit Price incl. VAT
4
WASHER
7556153
$3,66 Unit Price incl. VAT
5
BOLT
7518566
$13,64 Unit Price incl. VAT
6
NYLOC NUT
7547333
$3,14 Unit Price incl. VAT
7
CONTROL ARM WELD REAR LOWER LEFT BLACK
1021704458
Not Available
8
CONTROL ARM WELD REAR LOWER RIGHT MT BLK
1021705458
Not Available
9
PIVOT SHAFT
5138797
$16,79 Unit Price incl. VAT
10
HD BUSHING W/ SEAL ASSEMBLY(4)
1543367
$19,94 Unit Price incl. VAT
11
SCREW M10 X 1.25-6G
7519043
$17,84 Unit Price incl. VAT
12
ZERK FITTING
7080510
$10,49 Unit Price incl. VAT
13
SCREW
7519042
$17,84 Unit Price incl. VAT
14
PIVOT SHAFT
5138796
$23,09 Unit Price incl. VAT
15
STANDARD BUSHING; ORV
5439874
$4,19 Unit Price incl. VAT

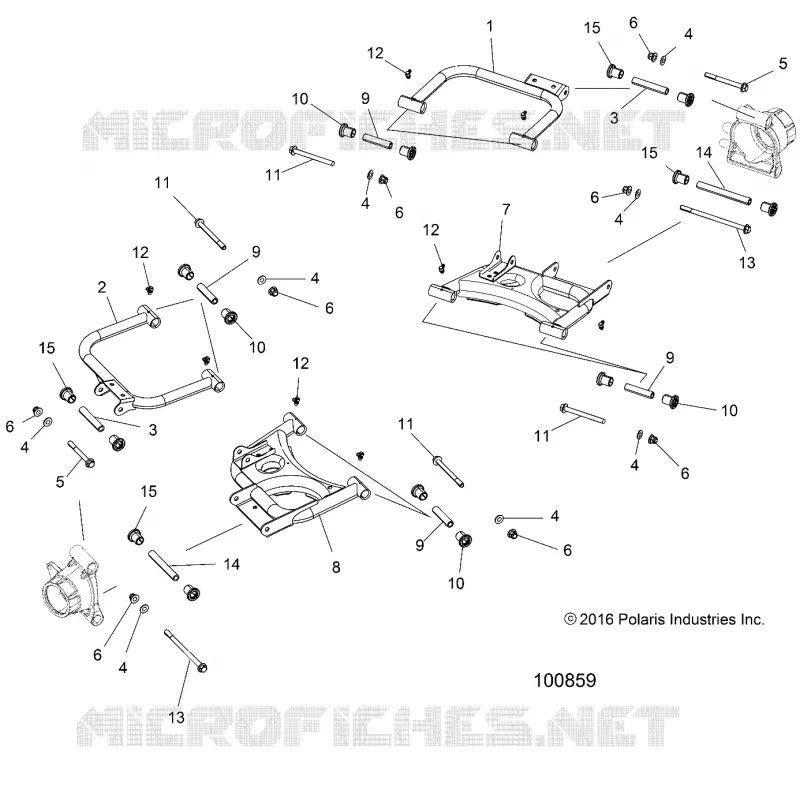

Find the detailed REAR SUSPENSION CONTROL ARMS POLARIS diagram on this page. This exploded view allows you to identify the various components you need to maintain your machine and quickly find their original POLARIS part number.


The diagrams are not contractually binding. If you have any doubts, our professionals are available to answer your questions. When adding a part to your cart, make sure to order the desired quantity. The unit price shown is the price for each reference at a quantity of 1.
