Engine displacement
570
2
Year
2017
3
Trim
ACE 570 EFI EU
4
Parts Catalog
CAM CHAIN AND SPROCKET
5
Parts Diagram
Parts Catalog
ELECTRICAL, IGNITION
by
CRANKCASE
CAM CHAIN AND SPROCKET
1
2
3
3
4
5
6
7
8
9
10
1
CAMCHAIN GUIDE; FIXED
3022150
$26,24 Unit Price incl. VAT
2
CAM CHAIN TENSIONER GUIDE
3022151
$52,49 Unit Price incl. VAT
3
CAMCHAIN TENSIONER
3022152
$167,99 Unit Price incl. VAT
3
TENSIONER GASKET
5813449
$13,64 Unit Price incl. VAT
4
GUIDE CAMCHAIN FIXED COVER
3022153
$52,49 Unit Price incl. VAT
5
CAM DRIVE GUIDE; LOWER
3022711
$19,94 Unit Price incl. VAT
6
DRIVEN CAM SPROCKET
3222189
3225061
$68,24 Unit Price incl. VAT
7
CAMSHAFT CHAIN; 144 L
3222196
$152,24 Unit Price incl. VAT
8
HEX FLANGE SCREW; 6 MM X 20 MM
7518576
$6,29 Unit Price incl. VAT
9
HEX FLANGE SCREW; 6 MM X 1.0 MM X 10 MM
7519164
$7,34 Unit Price incl. VAT
10
SHOULDER BOLT; 6 MM X 12 MM X 15 MM
7519165
$25,19 Unit Price incl. VAT

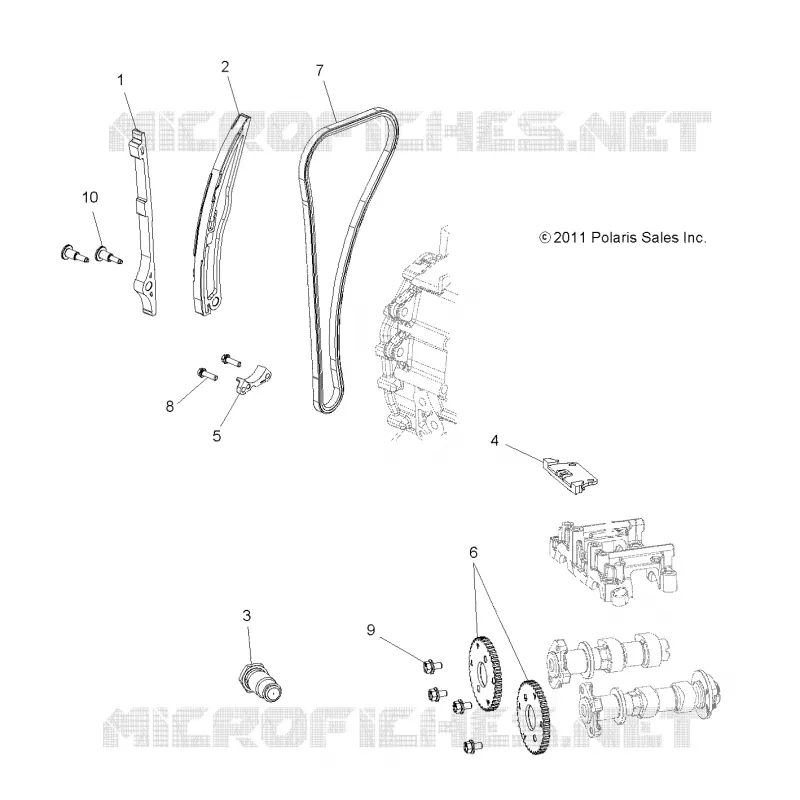

Find the detailed CAM CHAIN AND SPROCKET POLARIS diagram on this page. This exploded view allows you to identify the various components you need to maintain your machine and quickly find their original POLARIS part number.


The diagrams are not contractually binding. If you have any doubts, our professionals are available to answer your questions. When adding a part to your cart, make sure to order the desired quantity. The unit price shown is the price for each reference at a quantity of 1.

Other Parts for ACE 570 EFI EU
