Engine displacement
570
2
Year
2017
3
Trim
ACE 570 EFI EU
4
Parts Catalog
BRAKES, BRAKE LINES AND MASTER CYLINDER
5
Parts Diagram
Parts Catalog
HOOD AND FRONT BODY WORK
by
BRAKES, FRONT BRAKE CALIPER
BRAKES, BRAKE LINES AND MASTER CYLINDER
1
2
3
4
5
6
7
8
9
10
10
11
12
13
14
15
16
17
18
19
20
21
1
BANJO BOLT; 10 MM X 1.00
1910499
$10,49 Unit Price incl. VAT
2
BANJO BOLT; 10 MM X 1.25-6G
1910958
$14,69 Unit Price incl. VAT
3
SWITCH
4014225
$167,99 Unit Price incl. VAT
4
ASM-TANDEM MSTR CYL;HBII;SHORT
1911985
$283,49 Unit Price incl. VAT
5
LINE-BRK RL 35.8 20F 70B 225
1912021
$157,49 Unit Price incl. VAT
6
LINE-BRK RR 43.5 90F 70B 45
1912022
$167,99 Unit Price incl. VAT
7
LINE-BRK MC-R.81.5 45B 20F 0
1912023
$204,74 Unit Price incl. VAT
8
LINE-BRK FL 35.43 45B 70B 45
1912024
$167,99 Unit Price incl. VAT
9
LINE-BRK FR 26.4 20B 70B 315
1912025
$125,99 Unit Price incl. VAT
10
SEAL
5413212
9999999
Not Available
11
TEE FITTING BRAKE
7052293
$110,24 Unit Price incl. VAT
12
STRAP-PANDUIT DBL LOOP 260MM
7081916
$9,44 Unit Price incl. VAT
13
CLAMP CABLE
7080499
$10,49 Unit Price incl. VAT
14
HOSE CLAMP
7080683
$4,19 Unit Price incl. VAT
15
CLIP-RETAINING DUAL .250 LINE
7670126
$9,44 Unit Price incl. VAT
16
SCREW
7512025
$9,44 Unit Price incl. VAT
17
SCREW
7512084
$2,09 Unit Price incl. VAT
18
POP RIVET
7621323
$2,09 Unit Price incl. VAT
19
CLIP
7670102
$4,19 Unit Price incl. VAT
20
CABLE TIE; 11 IN
7080492
$5,24 Unit Price incl. VAT
21
SCREW 10-24X5/8 (10)
7517756
$2,09 Unit Price incl. VAT

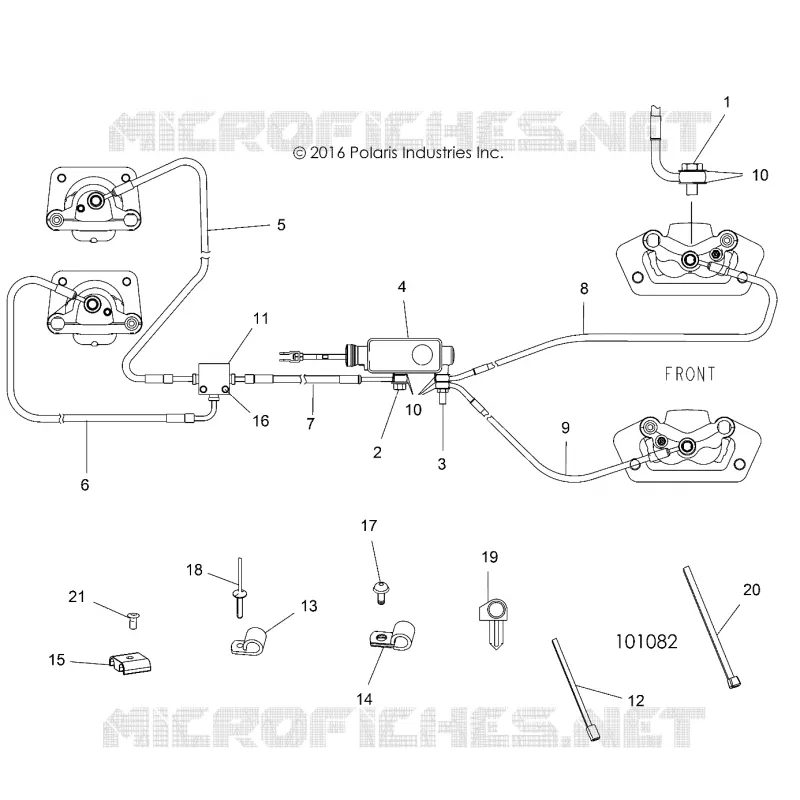

Find the detailed BRAKES, BRAKE LINES AND MASTER CYLINDER POLARIS diagram on this page. This exploded view allows you to identify the various components you need to maintain your machine and quickly find their original POLARIS part number.
