1
Engine displacement
570
2
Year
2017
3
Trim
ACE 570 EFI EU
4
Parts Catalog
ENGINE, COOLING SYSTEM
5
Parts Diagram
Parts Catalog
ELECTRICAL, HEADLIGHTS
by
ENGINE, CRANKSHAFT, PISTON AND BALANCE SHAFT
ENGINE, COOLING SYSTEM
15
15
16
17
18
19
20
21
22
23
24
25
26
27
27
27
27
27
27
28
29
29
29
29
29
30
31
32
33
34
35
35
35
36
37
38
39
40
41
41
42
1
CORE RADIATOR ASSEMBLY
1240444
1241480
$871,49 Unit Price incl. VAT
2
FAN ASSEMBLY; 11 INCHES; ATV
2410413
$493,49 Unit Price incl. VAT
3
FAN SHROUD
5437845
9999999
Not Available
4
RADIATOR MOUNT BUSHING; LOWER
5410584
$10,49 Unit Price incl. VAT
5
U CLIP; 6.0 MM X 1.0 MM
7547366
$9,44 Unit Price incl. VAT
6
PRESSURE CAP
1240300
$73,49 Unit Price incl. VAT
7
TUBE-COOLANT 3/4 ENG OUT
5138389
9999999
Not Available
8
COOLANT HOSE; FLARED
5414632
9999999
Not Available
9
HOSE-COOLANT FLARED
5414633
$83,99 Unit Price incl. VAT
10
HOSE-COOLANT FRONT
5414634
9999999
Not Available
11
HOSE-COOLANT REAR ENG OUT
5414707
9999999
Not Available
12
HOSE-COOLANT REAR ENG IN
5414708
9999999
Not Available
13
HOSE-COOLANT FRONT
5414637
9999999
Not Available
14
CONNECTOR TEE 3/4
7052093
$15,74 Unit Price incl. VAT
15
CLAMP-HOSE 13/16 -1 1/2
7081174
$13,64 Unit Price incl. VAT
16
SURGE TANK
5436936
$152,24 Unit Price incl. VAT
17
FITTING 90 DEGREE
7052065
$13,64 Unit Price incl. VAT
18
OVERFLOW CAP
5430743
$10,49 Unit Price incl. VAT
19
CAP PLUG9X(GRN) FLEX TEMP(10)
5433774
$10,49 Unit Price incl. VAT
20
COOLANT REMOTE FILLER; SMALL
5439079
$62,99 Unit Price incl. VAT
21
GASKET
5810279
$4,19 Unit Price incl. VAT
22
FUEL LINE; 1/4 ID
84500031525
Not Available
23
RADIATOR MOUNT; MATTE BLACK
5256171458
Not Available
24
MNT-RADIATOR UPPER E-COAT
5260310329
Not Available
25
TIE CABLE; 14 IN
7080761
$5,24 Unit Price incl. VAT
26
CLAMP-COOLANT LINES
5258642
9999999
Not Available
27
SPRINGBAND CLAMP; 27/12; GREEN
7080841
$13,64 Unit Price incl. VAT
28
SCREW M6 X 1.0; L-20MM
7516822
$4,19 Unit Price incl. VAT
29
BOLT M6 X 1.0 X 20
7518529
$2,09 Unit Price incl. VAT
30
SCR-TFHFL-M6X1.0X25 ZOD
7519342
$3,14 Unit Price incl. VAT
31
HOSE CLAMP
7080003
$2,09 Unit Price incl. VAT
32
1/4 SAEJ2002;EPDM HOSE;600CM
8450120600
Not Available
33
CLAMP-COOLANT LINES
5258169
9999999
Not Available
34
SCREW
7512084
$2,09 Unit Price incl. VAT
35
SPRING BAND CLAMPS; 32/12
7080843
$7,34 Unit Price incl. VAT
36
TUBE-COOLANT 3/4 ENG IN
5138390
9999999
Not Available
37
HOSE-COOLANT ENGINE INLET
5415129
$73,49 Unit Price incl. VAT
38
HOSE-COOLANT BYPASS
5415447
9999999
Not Available
39
TEE CONNECTOR; 1 X 1 X 0.5
7052530
$10,49 Unit Price incl. VAT
40
SPRINGBAND CLAMP; 35/12
7080844
$19,94 Unit Price incl. VAT
41
HOSE CLAMP
7080474
$13,64 Unit Price incl. VAT
42
CLAMP-HOSE 1.312 VINYL COATED
7080851
9999999
Not Available

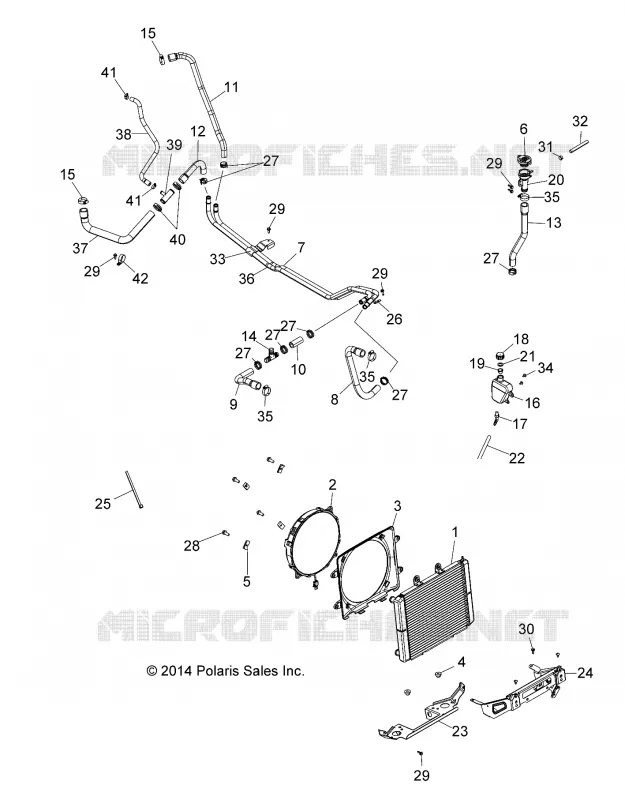

Find the detailed ENGINE, COOLING SYSTEM POLARIS diagram on this page. This exploded view allows you to identify the various components you need to maintain your machine and quickly find their original POLARIS part number.


The diagrams are not contractually binding. If you have any doubts, our professionals are available to answer your questions. When adding a part to your cart, make sure to order the desired quantity. The unit price shown is the price for each reference at a quantity of 1.
