Parts Catalog
CRANKCASE AND CYLINDER SPORTSMAN 400L W97AC38C (4939673967D001)
5
Parts Diagram
Parts Catalog
PISTON CRANKSHAFT SPORTSMAN 400L W97AC38C (4939673967C014)
by
WATER PUMP SPORTSMAN 400L W97AC38C (4939673967D003)
CRANKCASE AND CYLINDER SPORTSMAN 400L W97AC38C (4939673967D001)
1
2
3
4
5
5
5
6
6
6
7
8
9
10
11
12
13
13
14
15
16
17
18
19
20
21
22
23
24
25
25
25
26
27
28
29
30
31
32
33
33
34
34
35
35
36
37
38
39
40
41
42
43
44
44
45
46
47
48
49
50
50
50
51
52
53
54
55
56
57
58
1
CYLINDER
3085276
9999999
Not Available
2
STUD
3084138
9999999
Not Available
3
GASKET HEAD
3084731
9999999
Not Available
4
HEAD CYLINDER
3084730
9999999
Not Available
5
GASKET; ALUM;
3082758
7555998
$2,09 Unit Price incl. VAT
6
PLUG DRAIN
3083767
9999999
Not Available
7
FLANGE NUT
3082910
9999999
Not Available
8
PIPE; WATER
3083452
9999999
Not Available
9
NUT
3080285
9999999
Not Available
10
LOCK WASHER
3080530
9999999
Not Available
11
GASKET EXH
3084439
9999999
Not Available
12
STUD
3085326
9999999
Not Available
13
PIPE-1ELBOW
3084129
9999999
Not Available
14
FLANGE NUT
3082911
7547013
$3,14 Unit Price incl. VAT
15
BANJO BOLT
3083137
9999999
Not Available
16
GASKET; ALUMINUM
3083138
7555998
$2,09 Unit Price incl. VAT
17
ADAPTER; CARB.
3085277
9999999
Not Available
18
VALVE REED
3240064
9999999
Not Available
19
STOPPER
3240065
9999999
Not Available
20
SCREW&WASHER
3240066
9999999
Not Available
21
GASKET REED VALVE(10)
3084148
9999999
Not Available
22
VALVE ASM. REED
3084147
9999999
Not Available
23
STUFFER (REED VALVE ASM.)
3240164
9999999
Not Available
24
PAN HEAD SCREW
3081497
9999999
Not Available
25
CLAMP
3083590
9999999
Not Available
26
BAND ASM.
3084144
9999999
Not Available
27
BOLT; FLANGE
3084145
9999999
Not Available
28
VALVE CHECK
3083894
9999999
Not Available
29
CYLINDER GASKET
3084729
9999999
Not Available
30
CLAMP
3083384
9999999
Not Available
31
WASHER(10)
3080142
9999999
Not Available
32
BOLT FLANGE
3084124
9999999
Not Available
33
STUD
3084118
9999999
Not Available
34
STUD
3084119
9999999
Not Available
35
ASM-CRANKCASE
3084774
9999999
Not Available
36
BALL BEARING
3084123
9999999
Not Available
37
PLUG
3083453
9999999
Not Available
38
GASKET
3082956
9999999
Not Available
39
GASKET-CASE 3
3084727
9999999
Not Available
40
PIPE; BREATHER
3084128
9999999
Not Available
41
BOLT; FLANGE
3084177
9999999
Not Available
42
PIPE-2 ELBOW
3084130
9999999
Not Available
43
BOLT FLANGE (10)
3084435
9999999
Not Available
44
SEAL OIL
3084120
9999999
Not Available
45
PLUG
3085152
9999999
Not Available
46
GASKET ALUMINUM(10)
3083482
9999999
Not Available
47
BOLT FLANGE
3084126
9999999
Not Available
48
CRANKCASE 3
3085278
9999999
Not Available
49
BOLT FLANGE
3084134
9999999
Not Available
50
PIN; DOWEL
3080103
9999999
Not Available
51
BALL BEARING
3084131
9999999
Not Available
52
O-RING
3084733
9999999
Not Available
53
GAUGE OIL Substituted by 3085517 (Incl. 42)
3084732
Not Available
54
BOLT FLANGE
3084125
9999999
Not Available
55
BALL BEARING
3084775
9999999
Not Available
56
BALL BEARING
3084121
9999999
Not Available
57
SEAL OIL
3084725
9999999
Not Available
58
SCREW AND WASHER
3084205
9999999
Not Available

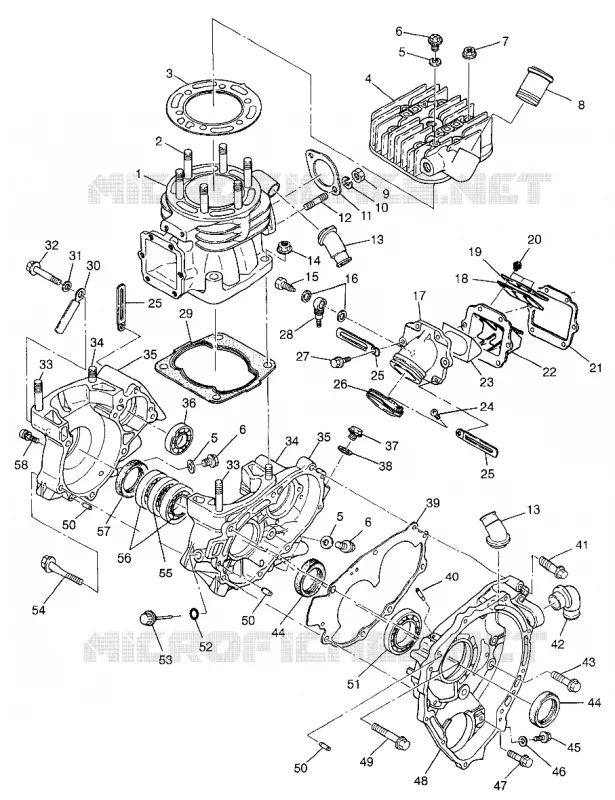

Find the detailed CRANKCASE AND CYLINDER SPORTSMAN 400L W97AC38C (4939673967D001) POLARIS diagram on this page. This exploded view allows you to identify the various components you need to maintain your machine and quickly find their original POLARIS part number.
