1
Engine displacement
400
2
Year
1997
3
Trim
SPORTSMAN 400L - W97AC38C
4
Parts Catalog

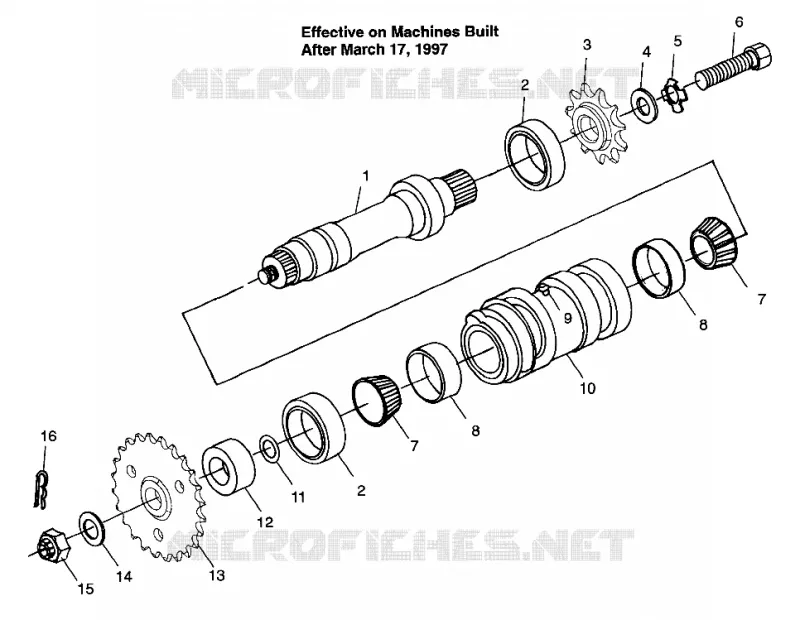

CENTER TIGHTENER SPORTSMAN 400L W97AC38C (4939673967B014)
5
Parts Diagram
Parts Catalog
CONTROLS
by
DRIVE CLUTCH SPORTSMAN 400L W97AC38C (4939673967C001)
CENTER TIGHTENER SPORTSMAN 400L W97AC38C (4939673967B014)
-
1
2
2
3
4
5
6
7
7
8
8
9
10
11
12
13
14
15
16
-
TIGHTENER CTR TPR BRGS
1380121
9999999
Not Available
1
SHAFT CTR.TIGHT SHORT
5020935
9999999
Not Available
2
SEAL TIGHTENER
3610017
9999999
Not Available
3
SPROCKET; 12 TOOTH
3221044
$83,99 Unit Price incl. VAT
4
FLAT WASHER
7555815
$7,34 Unit Price incl. VAT
5
LOCK WASHER
7571611
9999999
Not Available
6
SCREW
7512492
$2,09 Unit Price incl. VAT
7
TAPER ROLL CONE BEARING
3554506
$54,59 Unit Price incl. VAT
8
TAPER ROLL CUP BEARING
3554507
$54,59 Unit Price incl. VAT
9
ECC.ASM CTR W/BRNG CUP
1380136
9999999
Not Available
10
FITTING LUBE.W/BALL CK.(10)
7080306
$5,76 Unit Price incl. VAT
11
O-RING
5410463
9999999
Not Available
12
SPACER.CTR.TIGHTENER TPR
5010444
9999999
Not Available
13
SPROCKET; 22T
3222044
9999999
Not Available
14
WASHER THRUST
7555788
9999999
Not Available
15
SLOTTED NUT
7542810
$5,76 Unit Price incl. VAT
16
COTTER PIN
7661401
$1,56 Unit Price incl. VAT

Find the detailed CENTER TIGHTENER SPORTSMAN 400L W97AC38C (4939673967B014) POLARIS diagram on this page. This exploded view allows you to identify the various components you need to maintain your machine and quickly find their original POLARIS part number.


The diagrams are not contractually binding. If you have any doubts, our professionals are available to answer your questions. When adding a part to your cart, make sure to order the desired quantity. The unit price shown is the price for each reference at a quantity of 1.
