Parts Catalog
SWING ARM SHOCK SPORTSMAN 400L W97AC38C (4939673967C003)
5
Parts Diagram
Parts Catalog
DRIVEN CLUTCH SPORTSMAN 400L W97AC38C (4939673967C002)
by
TOOL KIT SPORTSMAN 400L W97AC38C (4939673967C008)
SWING ARM SHOCK SPORTSMAN 400L W97AC38C (4939673967C003)
1
2
2
3
4
4
5
6
7
8
9
9
10
10
11
11
12
12
13
14
14
15
16
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
1
SHOULDER BOLT
7512701
9999999
Not Available
2
BOLT LOCK PLATE
5220958
9999999
Not Available
3
SPRING COMP BLK.
7041303067
Not Available
4
NYLOCK NUT
7542439
$2,09 Unit Price incl. VAT
5
SCREW
7515415
9999999
Not Available
6
RETAINER SHOCK
5241147
5251753
$19,94 Unit Price incl. VAT
7
SHOCK REAR
7041447
9999999
Not Available
8
CAM ADJUSTMENT SPRING
5630551
$68,24 Unit Price incl. VAT
9
BUSHING
5240952
9999999
Not Available
10
BUSHING
5431977
9999999
Not Available
11
WASHER
7555911
9999999
Not Available
12
NUT LOCK
7542602
9999999
Not Available
13
SHOCK FTA [SEE PAGE- SUSPENSION SHOCK FRONT TRACK]
*******
Not Available
14
SWING ARM BUSHING
5020793
9999999
Not Available
15
FITTING LUBE
7080438
$19,94 Unit Price incl. VAT
16
BUSHING SWING ARM
5431972
5433417
$16,79 Unit Price incl. VAT
17
BOLT SHOULDER
7512702
9999999
Not Available
18
GUIDE CHAIN
5431310
9999999
Not Available
19
RIVET
7621433
$2,09 Unit Price incl. VAT
20
DECAL LUBRICATION
7074214
Not Available
21
FLANGED SCREW
7515304
9999999
Not Available
22
BUSHING
5332828
9999999
Not Available
23
CHAIN GUARD
5430776
9999999
Not Available
24
FLAT WASHER
7558402
$1,56 Unit Price incl. VAT
25
FLANGE NUT
7542321
$2,09 Unit Price incl. VAT
26
ARM ASMSWING
1580090
9999999
Not Available
27
WASHER
7555883
$7,34 Unit Price incl. VAT
28
NUT FLEXLOCK
7542503
9999999
Not Available
29
DECAL CHAIN FREE PLAY
7074752
Not Available
30
DECAL HITCH Substituted by 7078261
7072533
Not Available
31
KIT HITCH
2200472
9999999
Not Available
32
BOLT
7512576
9999999
Not Available
33
BOLT
7515438
$9,44 Unit Price incl. VAT

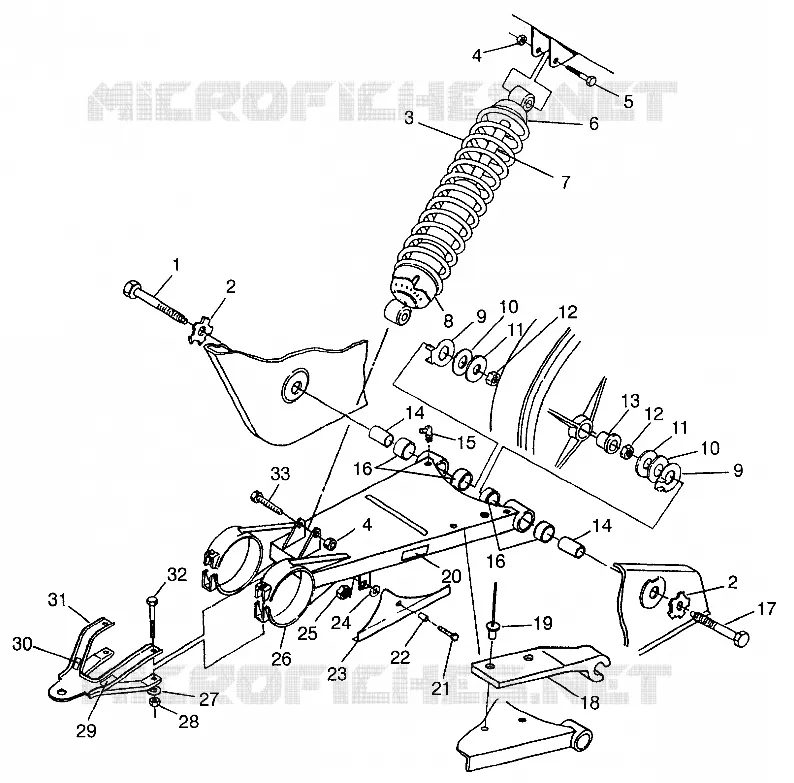

Find the detailed SWING ARM SHOCK SPORTSMAN 400L W97AC38C (4939673967C003) POLARIS diagram on this page. This exploded view allows you to identify the various components you need to maintain your machine and quickly find their original POLARIS part number.


The diagrams are not contractually binding. If you have any doubts, our professionals are available to answer your questions. When adding a part to your cart, make sure to order the desired quantity. The unit price shown is the price for each reference at a quantity of 1.
